| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21823cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21823cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,313,600 | 88,646,400 |
| Size | 468.6 MB | 84.5 MB |
| Events in quadrant A | 3,081,873 | 574,831 |
| Events in quadrant B | 3,544,207 | 582,179 |
| Events in quadrant C | 3,031,539 | 555,248 |
| Events in quadrant D | 4,789,464 | 527,816 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13359 | 1 |
| B | 0 | 14634 | 1 |
| C | 0 | 13165 | 1 |
| D | 0 | 18445 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6365 | 59 | 0.926944% |
| B | 6366 | 120 | 1.885014% |
| C | 6366 | 71 | 1.115300% |
| D | 6366 | 311 | 4.885328% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7420 | 6365 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7421 | 6366 | 44 | 44 | 0.59% | 0.69% |  |
| C | 7421 | 6366 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7421 | 6366 | 240 | 240 | 3.23% | 3.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 19499 | 117.75 | 791 | 776 | 159.0 |
| A | 13 | 254 | 11961 | 70.34 | 791 | 776 | 159.0 |
| A | 13 | 252 | 8507 | 48.62 | 791 | 776 | 159.0 |
| B | 3 | 64 | 263373 | 1738.11 | 783 | 763 | 151.1 |
| B | 0 | 245 | 77717 | 509.33 | 783 | 763 | 151.1 |
| B | 0 | 190 | 42661 | 277.31 | 783 | 763 | 151.1 |
| C | 14 | 238 | 116497 | 661.84 | 746 | 749 | 174.9 |
| C | 13 | 61 | 5336 | 26.23 | 746 | 749 | 174.9 |
| C | 3 | 248 | 3119 | 13.55 | 746 | 749 | 174.9 |
| D | 1 | 52 | 1699056 | 9220.95 | 751 | 728 | 184.2 |
| D | 7 | 238 | 82154 | 442.1 | 751 | 728 | 184.2 |
| D | 13 | 172 | 70486 | 378.75 | 751 | 728 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

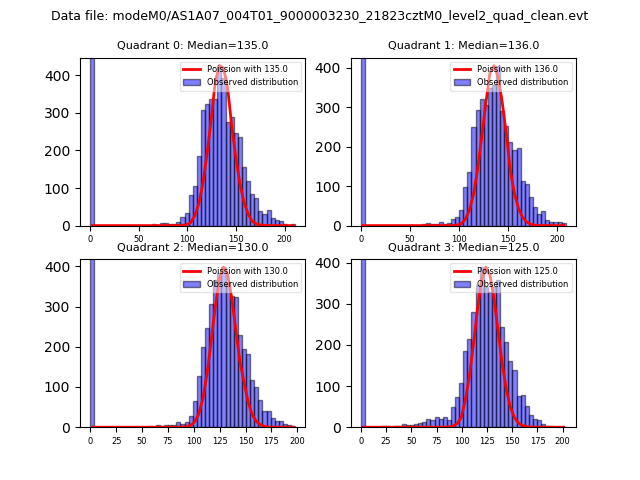

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

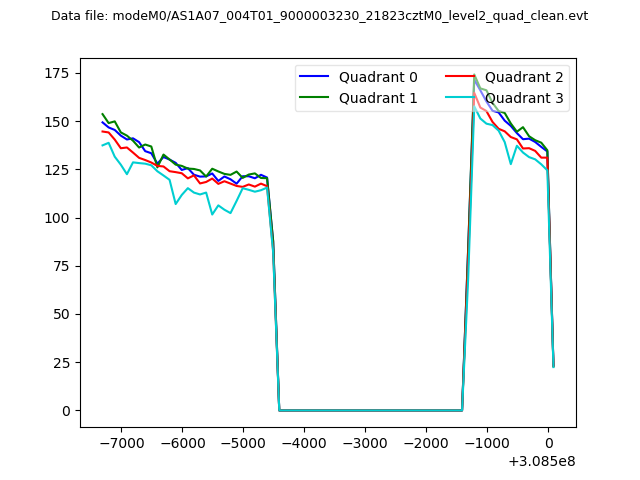

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

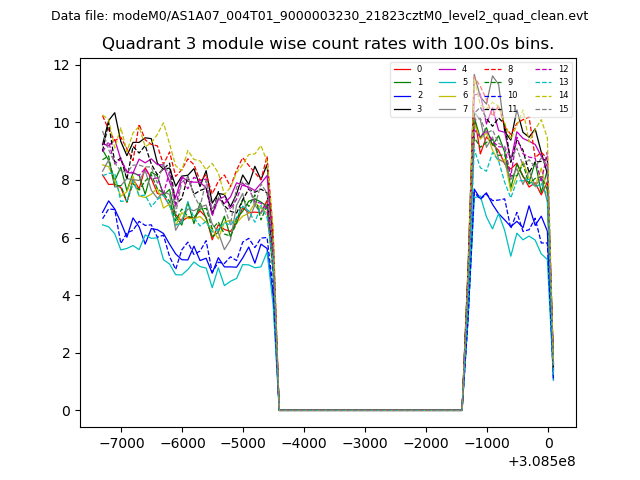

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
