| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21828cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21828cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,285,440 | 88,729,920 |
| Size | 459.0 MB | 84.6 MB |
| Events in quadrant A | 3,125,376 | 575,472 |
| Events in quadrant B | 3,570,161 | 598,558 |
| Events in quadrant C | 3,164,099 | 568,879 |
| Events in quadrant D | 4,292,725 | 508,755 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13096 | 2 |
| B | 0 | 14480 | 1 |
| C | 0 | 13092 | 1 |
| D | 0 | 16816 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6239 | 24 | 0.384677% |
| B | 6240 | 80 | 1.282051% |
| C | 6240 | 56 | 0.897436% |
| D | 6240 | 317 | 5.080128% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6240 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7575 | 6241 | 36 | 36 | 0.48% | 0.58% |  |
| C | 7575 | 6241 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7575 | 6241 | 280 | 280 | 3.70% | 4.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11901 | 68.24 | 808 | 796 | 162.7 |
| A | 0 | 226 | 7136 | 38.96 | 808 | 796 | 162.7 |
| A | 3 | 137 | 6380 | 34.31 | 808 | 796 | 162.7 |
| B | 3 | 64 | 155783 | 1018.64 | 816 | 799 | 152.1 |
| B | 6 | 36 | 122427 | 799.41 | 816 | 799 | 152.1 |
| B | 0 | 190 | 29671 | 189.76 | 816 | 799 | 152.1 |
| C | 14 | 238 | 123405 | 678.57 | 777 | 785 | 180.7 |
| C | 0 | 10 | 6443 | 31.31 | 777 | 785 | 180.7 |
| C | 13 | 61 | 5529 | 26.25 | 777 | 785 | 180.7 |
| D | 13 | 104 | 540241 | 2963.56 | 752 | 730 | 182.0 |
| D | 1 | 52 | 495292 | 2716.65 | 752 | 730 | 182.0 |
| D | 7 | 38 | 242349 | 1327.22 | 752 | 730 | 182.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

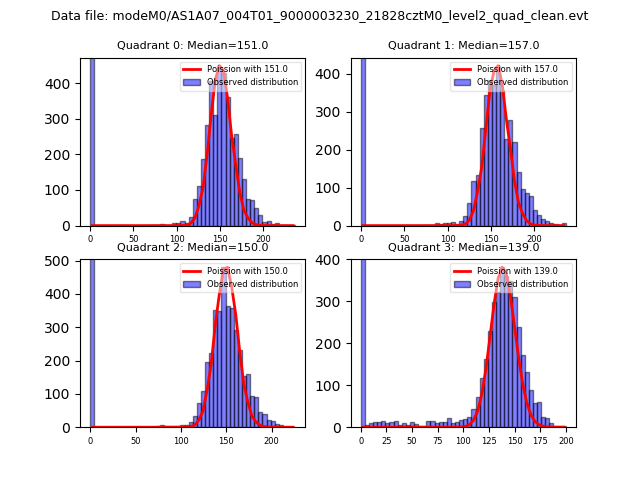

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

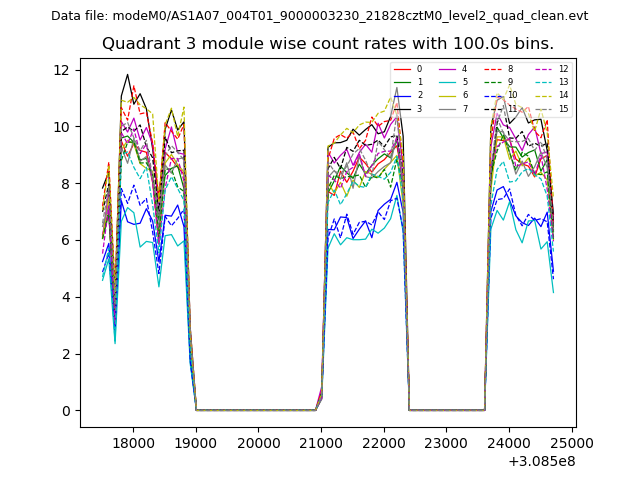

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
