| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21837cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21837cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,635,840 | 100,025,280 |
| Size | 490.8 MB | 95.4 MB |
| Events in quadrant A | 3,262,202 | 655,079 |
| Events in quadrant B | 3,730,293 | 657,707 |
| Events in quadrant C | 3,248,654 | 638,190 |
| Events in quadrant D | 4,885,043 | 606,093 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14093 | 2 |
| B | 0 | 15438 | 2 |
| C | 0 | 14087 | 2 |
| D | 0 | 19082 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6772 | 50 | 0.738334% |
| B | 6772 | 159 | 2.347903% |
| C | 6772 | 80 | 1.181335% |
| D | 6771 | 248 | 3.662679% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7772 | 6772 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7772 | 6772 | 56 | 56 | 0.72% | 0.83% |  |
| C | 7772 | 6773 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7771 | 6771 | 169 | 169 | 2.17% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13289 | 72.88 | 844 | 826 | 171.0 |
| A | 0 | 226 | 7393 | 38.4 | 844 | 826 | 171.0 |
| A | 2 | 79 | 7116 | 36.78 | 844 | 826 | 171.0 |
| B | 3 | 64 | 262648 | 1631.82 | 833 | 811 | 160.5 |
| B | 15 | 33 | 48383 | 296.48 | 833 | 811 | 160.5 |
| B | 0 | 245 | 33577 | 204.2 | 833 | 811 | 160.5 |
| C | 14 | 238 | 123445 | 657.24 | 800 | 806 | 186.6 |
| C | 13 | 61 | 5681 | 26.13 | 800 | 806 | 186.6 |
| C | 10 | 22 | 5270 | 23.92 | 800 | 806 | 186.6 |
| D | 1 | 52 | 951594 | 4843.16 | 805 | 782 | 196.3 |
| D | 13 | 174 | 543010 | 2761.95 | 805 | 782 | 196.3 |
| D | 13 | 104 | 69985 | 352.5 | 805 | 782 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

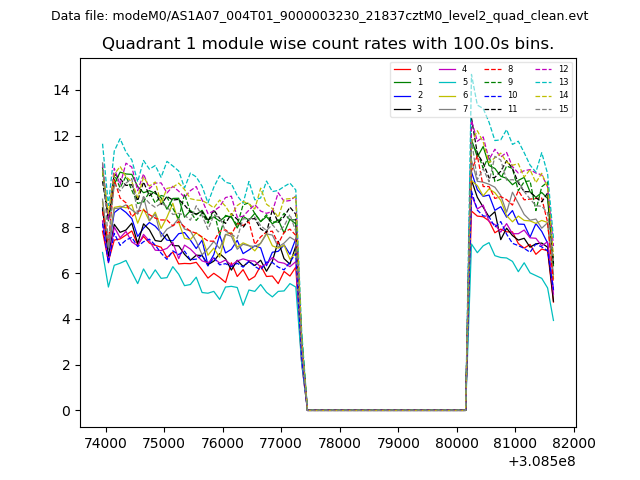

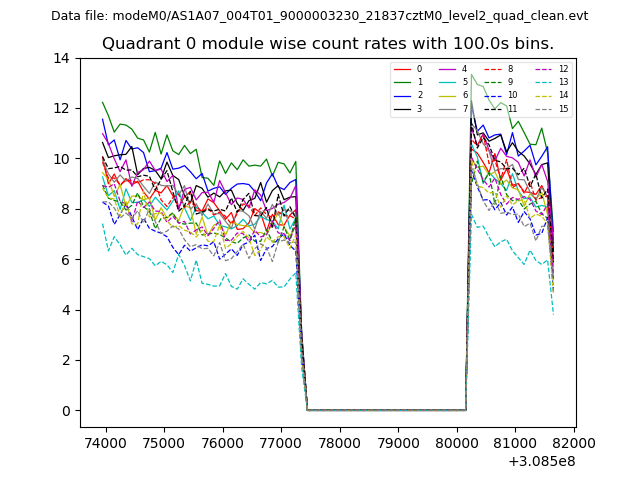

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

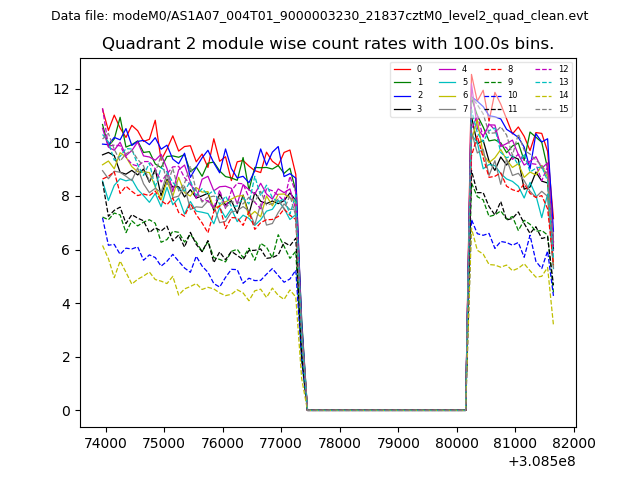

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

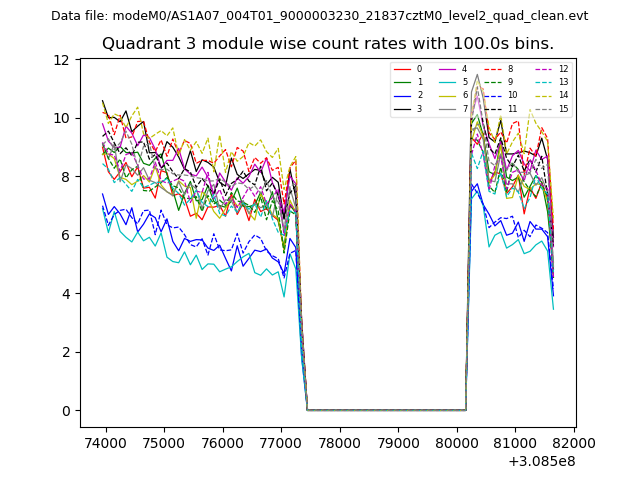

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

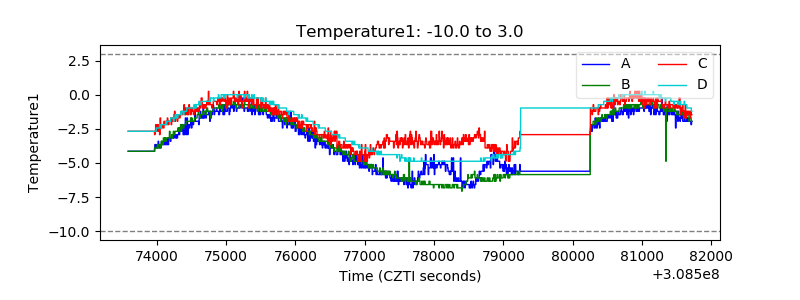

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

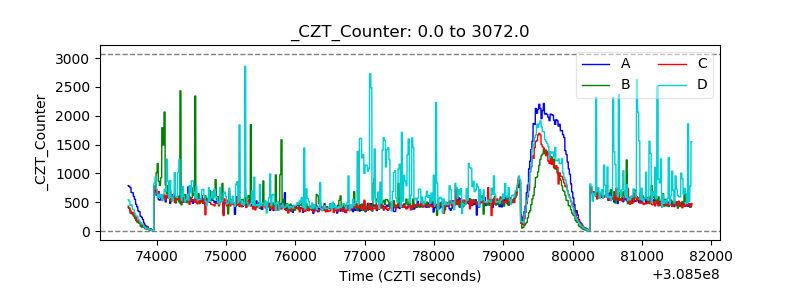

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

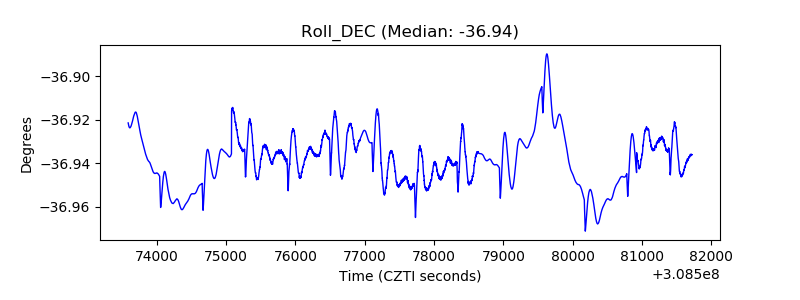

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
