| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21840cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21840cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,009,600 | 90,236,160 |
| Size | 492.1 MB | 86.1 MB |
| Events in quadrant A | 3,140,531 | 597,109 |
| Events in quadrant B | 3,480,702 | 608,293 |
| Events in quadrant C | 3,064,017 | 575,583 |
| Events in quadrant D | 5,524,825 | 522,105 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13313 | 1 |
| B | 0 | 14333 | 1 |
| C | 0 | 13057 | 1 |
| D | 0 | 20625 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6154 | 56 | 0.909977% |
| B | 6154 | 134 | 2.177446% |
| C | 6154 | 79 | 1.283718% |
| D | 6155 | 715 | 11.616572% |

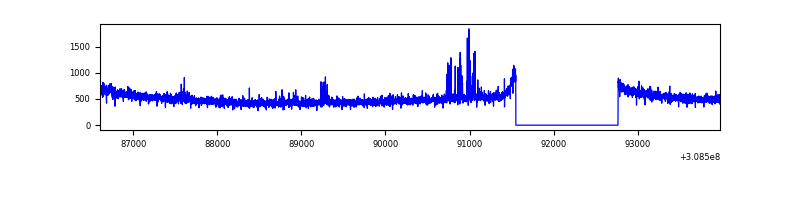

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7369 | 6154 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7369 | 6154 | 61 | 61 | 0.83% | 0.99% |  |
| C | 7369 | 6155 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7370 | 6156 | 482 | 482 | 6.54% | 7.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 63121 | 392.5 | 795 | 779 | 158.8 |
| A | 13 | 254 | 12312 | 72.61 | 795 | 779 | 158.8 |
| A | 2 | 79 | 8177 | 46.58 | 795 | 779 | 158.8 |
| B | 3 | 64 | 226580 | 1501.29 | 793 | 776 | 150.4 |
| B | 0 | 219 | 39403 | 256.82 | 793 | 776 | 150.4 |
| B | 0 | 189 | 24730 | 159.26 | 793 | 776 | 150.4 |
| C | 14 | 238 | 119666 | 672.93 | 752 | 757 | 176.7 |
| C | 13 | 61 | 5473 | 26.69 | 752 | 757 | 176.7 |
| C | 3 | 233 | 3590 | 16.03 | 752 | 757 | 176.7 |
| D | 1 | 52 | 2128701 | 12404.48 | 716 | 699 | 171.6 |
| D | 7 | 238 | 354754 | 2063.85 | 716 | 699 | 171.6 |
| D | 14 | 35 | 138514 | 803.35 | 716 | 699 | 171.6 |

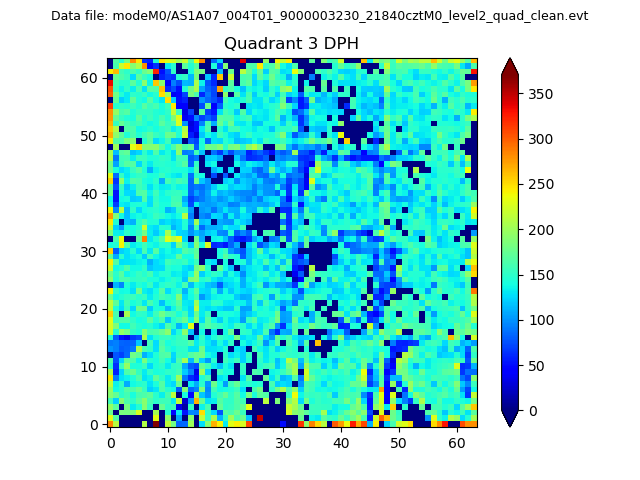

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

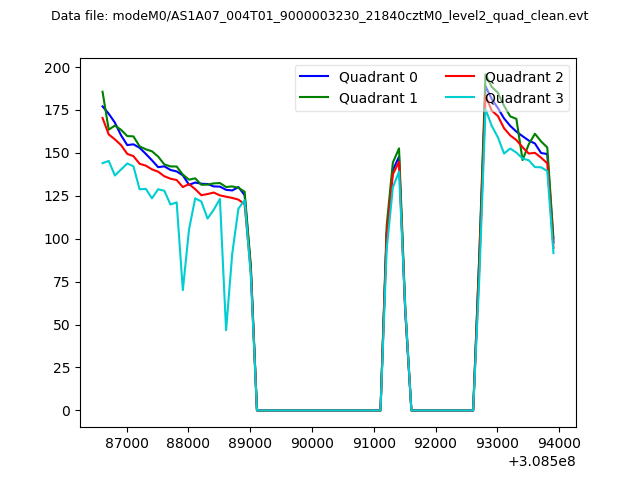

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

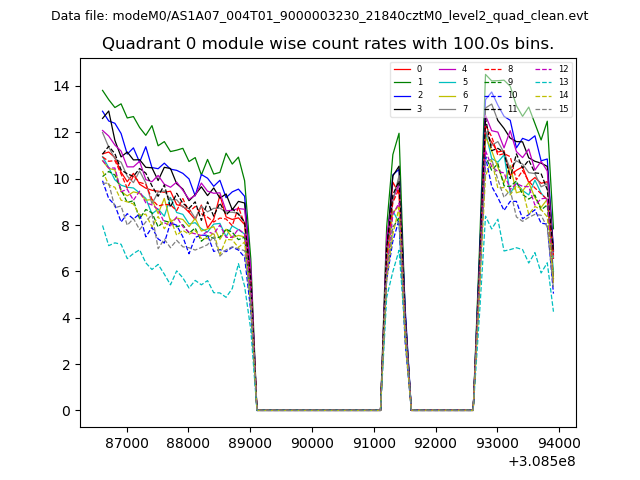

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

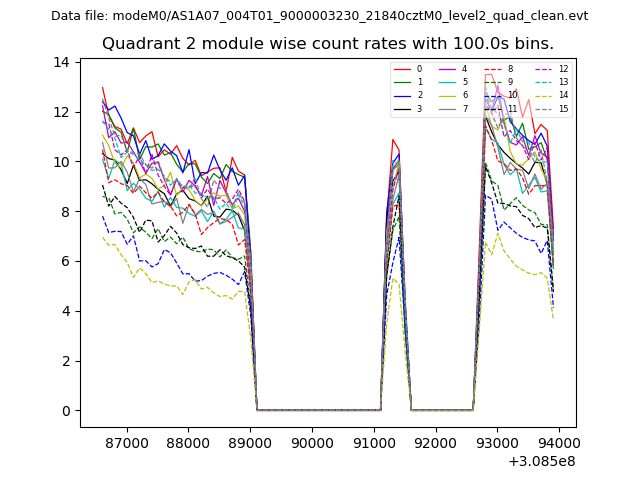

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

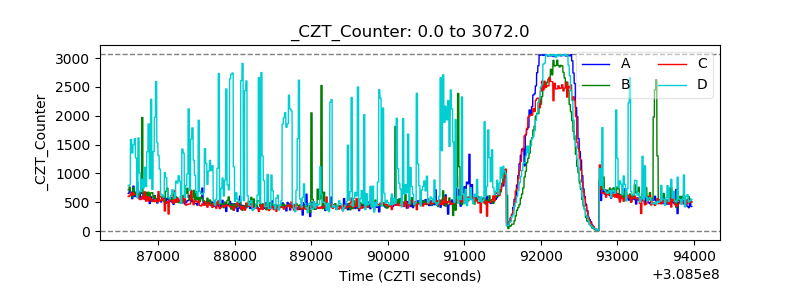

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

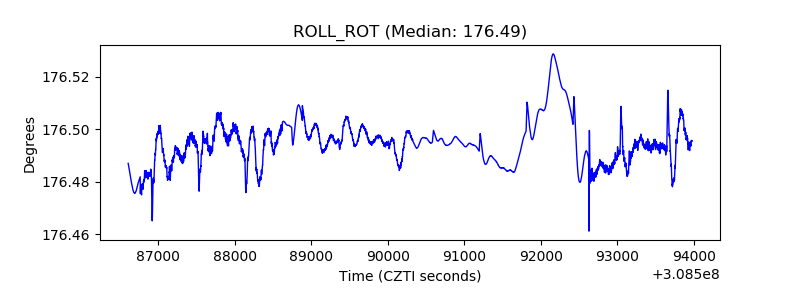

| _ROLL_ROT |  |
| _Roll_DEC |  |

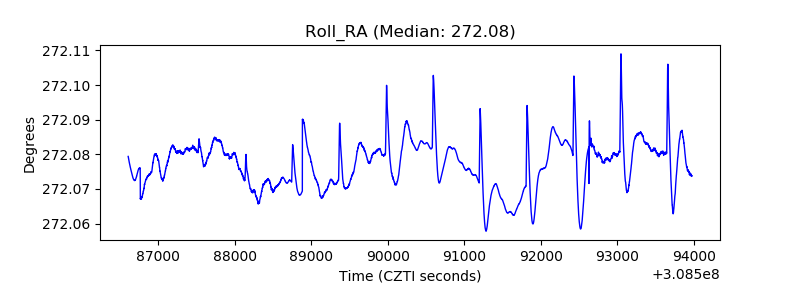

| _Roll_RA |  |
| Veto Counter |  |
