| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21841cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21841cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,995,200 | 91,987,200 |
| Size | 449.2 MB | 87.7 MB |
| Events in quadrant A | 3,068,174 | 601,872 |
| Events in quadrant B | 3,498,657 | 619,980 |
| Events in quadrant C | 3,077,255 | 585,212 |
| Events in quadrant D | 4,209,123 | 556,099 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12895 | 1 |
| B | 0 | 14215 | 1 |
| C | 0 | 12855 | 1 |
| D | 0 | 16463 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6056 | 31 | 0.511889% |
| B | 6057 | 123 | 2.030708% |
| C | 6056 | 65 | 1.073316% |
| D | 6056 | 253 | 4.177675% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7366 | 6057 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7367 | 6057 | 49 | 49 | 0.67% | 0.81% |  |
| C | 7366 | 6057 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7366 | 6057 | 192 | 192 | 2.61% | 3.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 17354 | 103.47 | 791 | 776 | 160.2 |
| A | 13 | 254 | 12186 | 71.21 | 791 | 776 | 160.2 |
| A | 0 | 226 | 6976 | 38.7 | 791 | 776 | 160.2 |
| B | 3 | 64 | 245600 | 1631.5 | 795 | 779 | 150.1 |
| B | 0 | 230 | 32047 | 208.37 | 795 | 779 | 150.1 |
| B | 0 | 219 | 30937 | 200.97 | 795 | 779 | 150.1 |
| C | 14 | 238 | 118399 | 671.48 | 750 | 757 | 175.2 |
| C | 3 | 248 | 13687 | 73.8 | 750 | 757 | 175.2 |
| C | 8 | 128 | 8628 | 44.93 | 750 | 757 | 175.2 |
| D | 1 | 52 | 783398 | 4281.07 | 737 | 718 | 182.8 |
| D | 7 | 238 | 247555 | 1350.14 | 737 | 718 | 182.8 |
| D | 7 | 38 | 152882 | 832.3 | 737 | 718 | 182.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

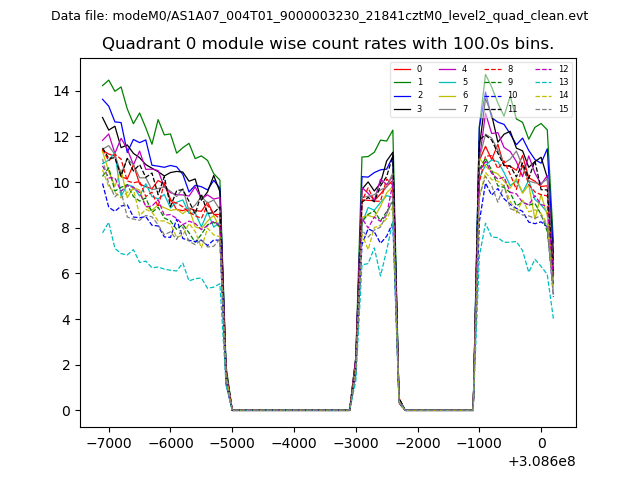

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

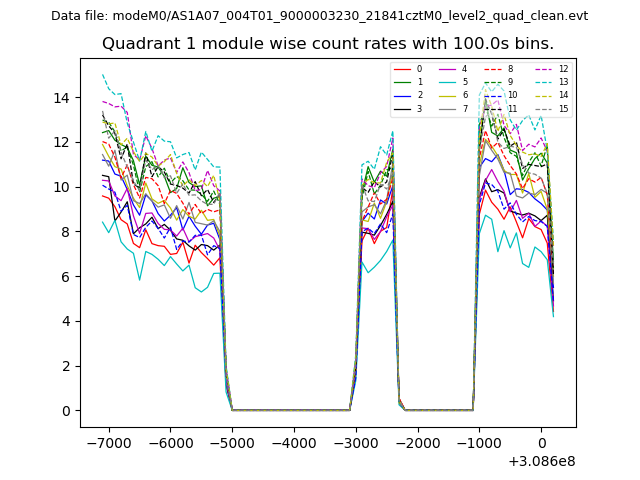

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

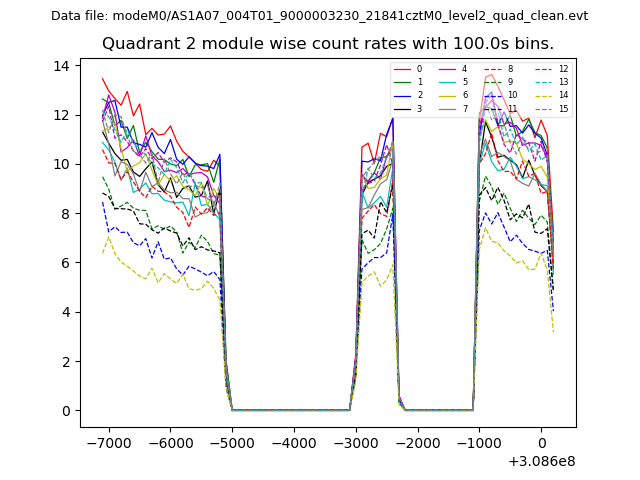

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

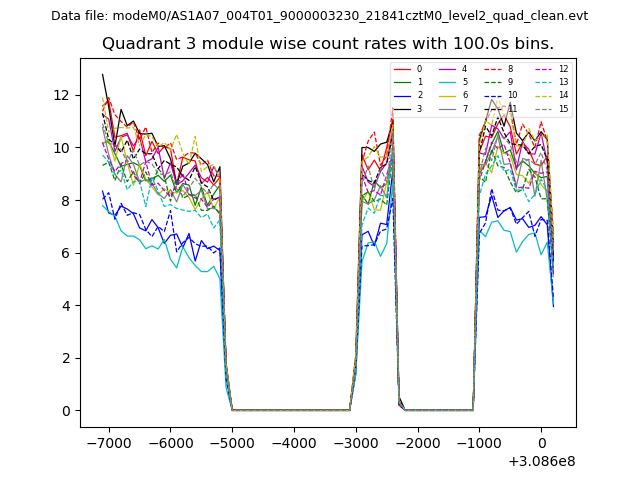

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

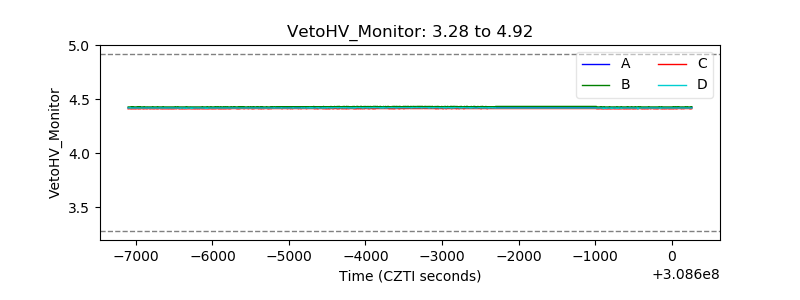

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

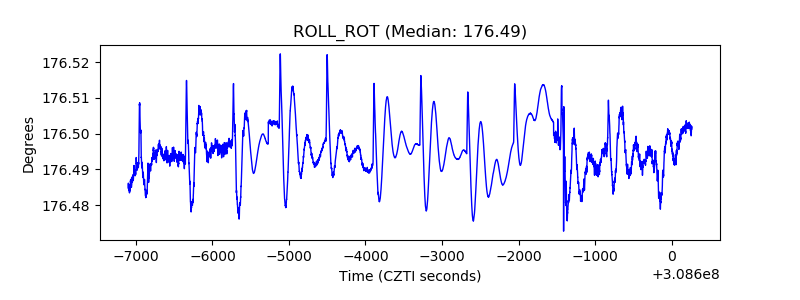

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

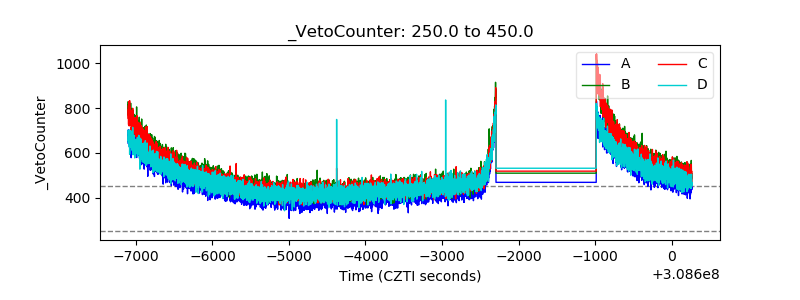

| Veto Counter |  |
