| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21843cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21843cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,510,720 | 87,235,200 |
| Size | 475.4 MB | 83.2 MB |
| Events in quadrant A | 3,166,543 | 563,904 |
| Events in quadrant B | 3,882,613 | 563,381 |
| Events in quadrant C | 3,223,101 | 554,510 |
| Events in quadrant D | 4,395,005 | 517,488 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13335 | 2 |
| B | 0 | 15400 | 2 |
| C | 0 | 13334 | 2 |
| D | 0 | 17180 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6334 | 46 | 0.726239% |
| B | 6334 | 264 | 4.167982% |
| C | 6333 | 102 | 1.610611% |
| D | 6333 | 293 | 4.626559% |

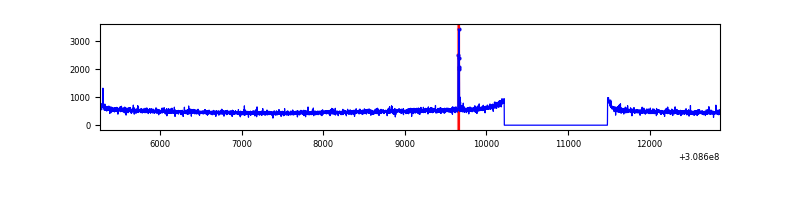

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

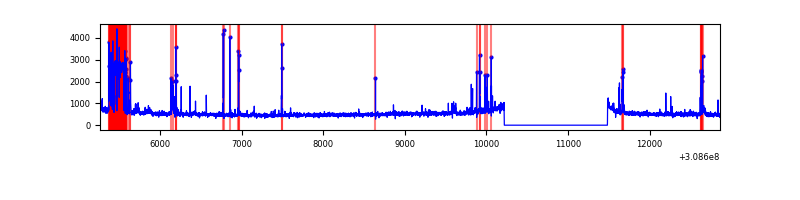

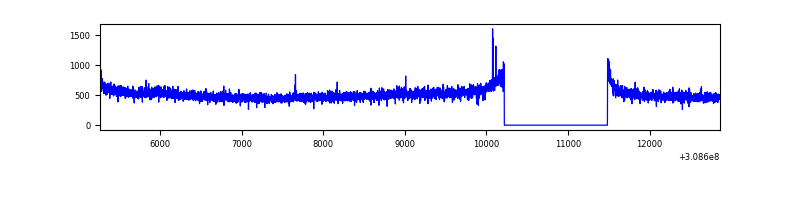

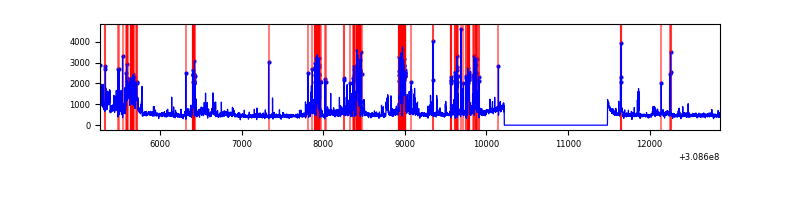

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6335 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7599 | 6335 | 174 | 174 | 2.29% | 2.75% |  |
| C | 7598 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7598 | 6334 | 230 | 230 | 3.03% | 3.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 22979 | 135.52 | 815 | 800 | 163.6 |
| A | 13 | 254 | 12520 | 71.61 | 815 | 800 | 163.6 |
| A | 0 | 226 | 7112 | 38.57 | 815 | 800 | 163.6 |
| B | 3 | 64 | 606707 | 3951.82 | 809 | 790 | 153.3 |
| B | 0 | 230 | 62661 | 403.52 | 809 | 790 | 153.3 |
| B | 0 | 190 | 19635 | 122.9 | 809 | 790 | 153.3 |
| C | 14 | 238 | 125581 | 687.54 | 782 | 791 | 181.5 |
| C | 3 | 248 | 32702 | 175.82 | 782 | 791 | 181.5 |
| C | 5 | 112 | 8514 | 42.55 | 782 | 791 | 181.5 |
| D | 7 | 238 | 705508 | 3732.47 | 768 | 745 | 188.8 |
| D | 12 | 227 | 210125 | 1108.89 | 768 | 745 | 188.8 |
| D | 7 | 38 | 161362 | 850.64 | 768 | 745 | 188.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

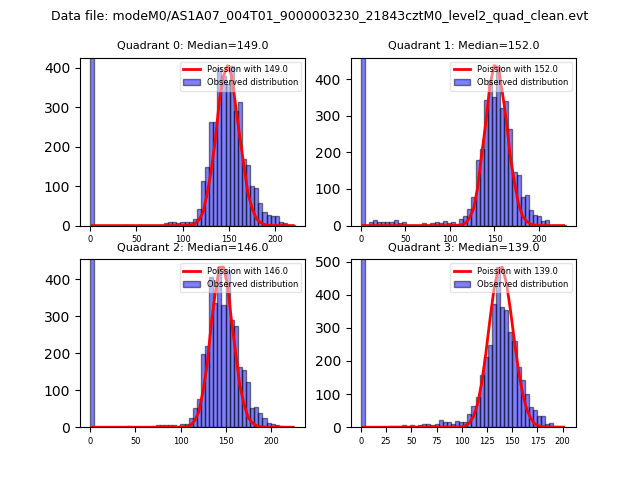

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

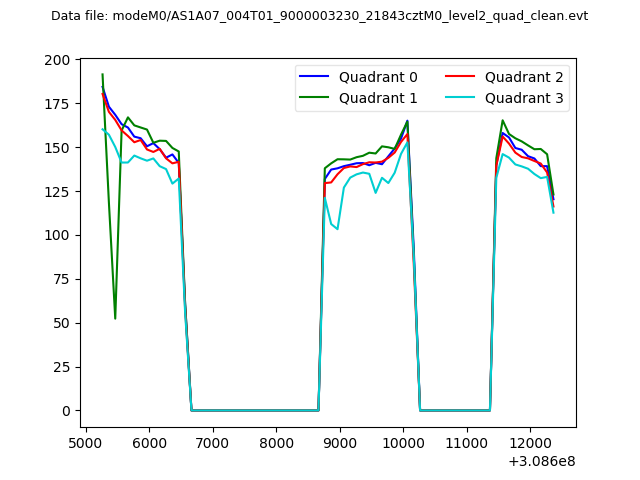

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

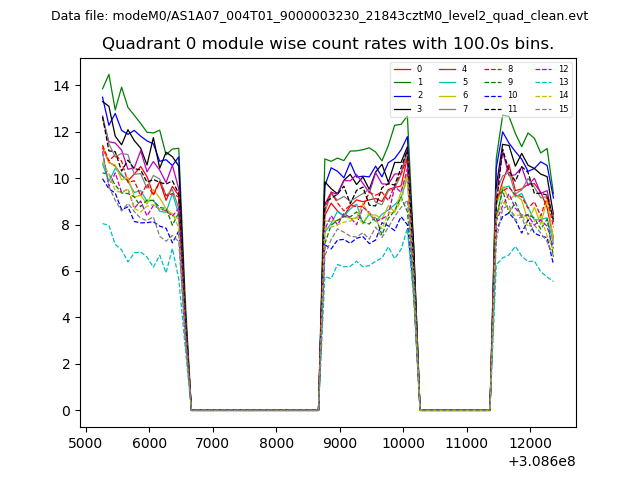

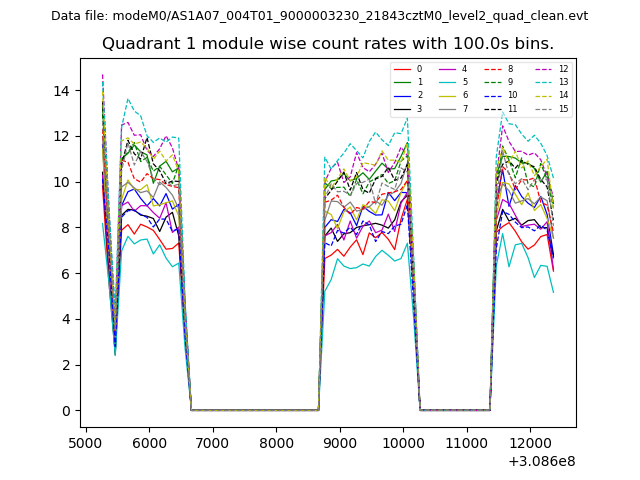

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

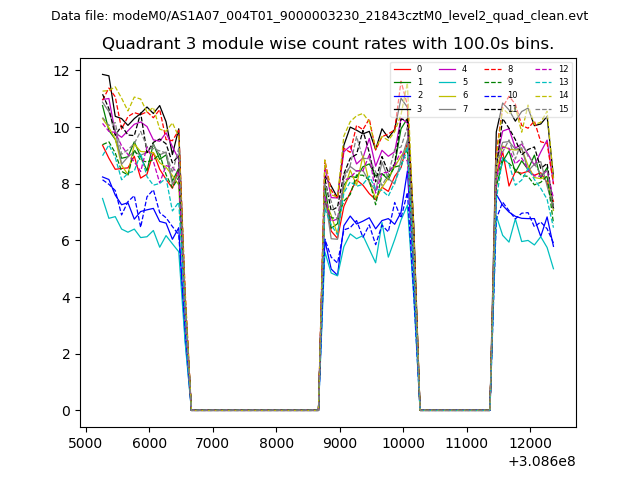

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

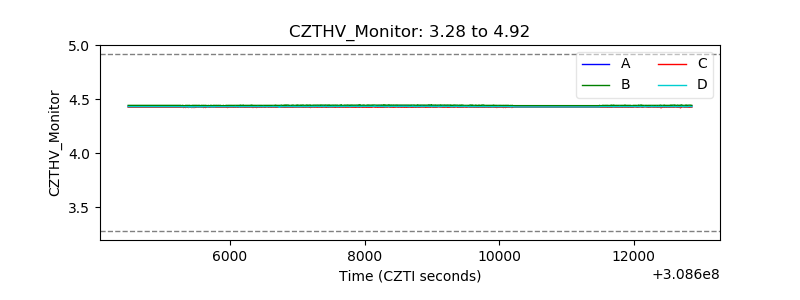

| CZT HV Monitor |  |

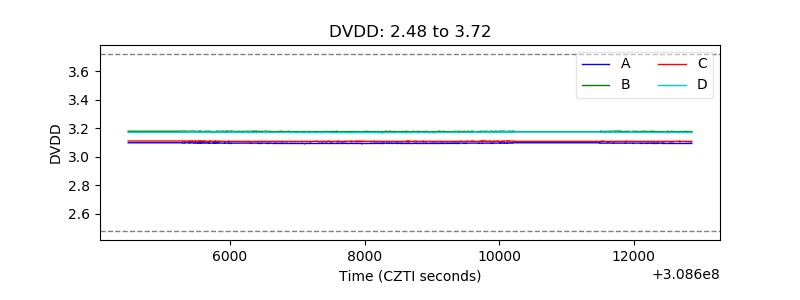

| D_VDD |  |

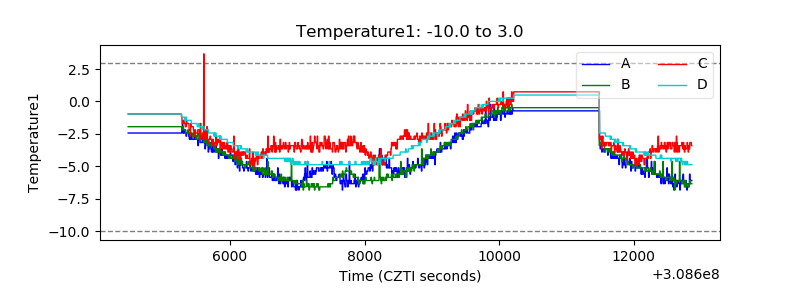

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

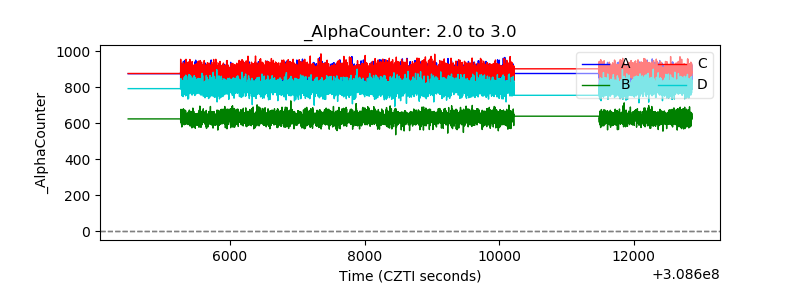

| Alpha Counter |  |

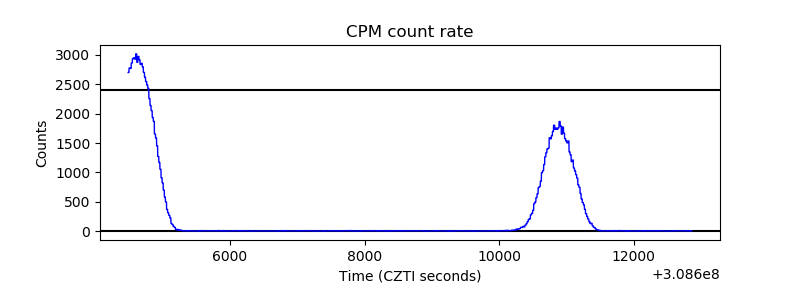

| _CPM_Rate |  |

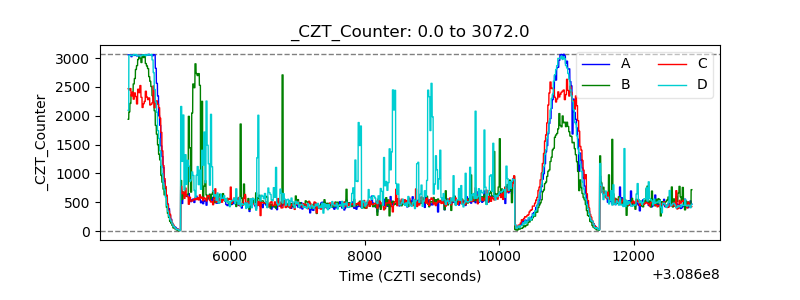

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

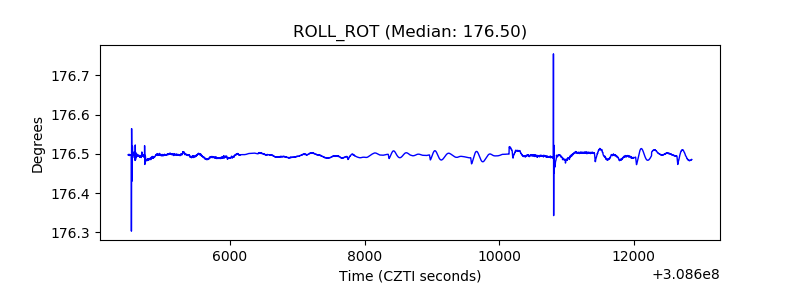

| _ROLL_ROT |  |

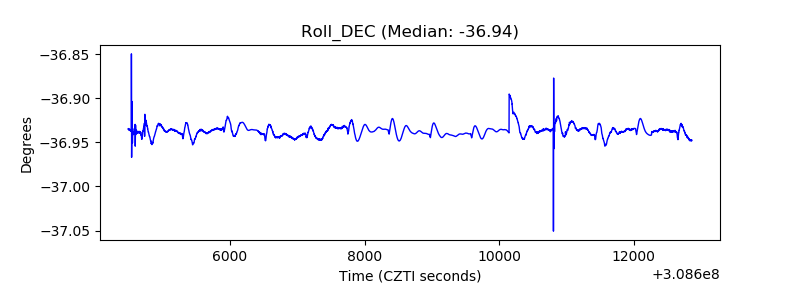

| _Roll_DEC |  |

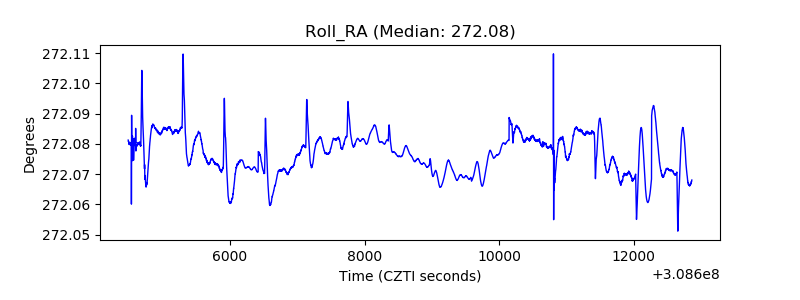

| _Roll_RA |  |

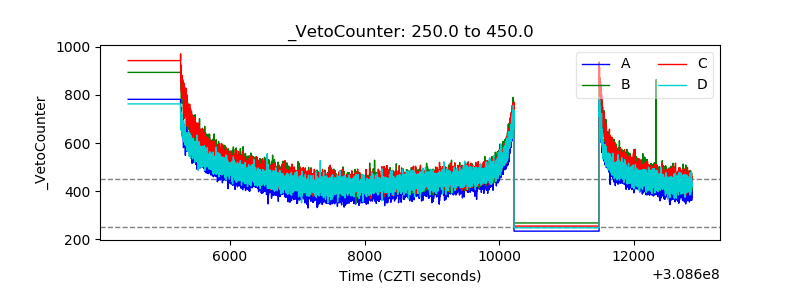

| Veto Counter |  |
