| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21845cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21845cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,987,520 | 87,431,040 |
| Size | 503.5 MB | 83.4 MB |
| Events in quadrant A | 3,611,744 | 539,287 |
| Events in quadrant B | 3,904,832 | 550,547 |
| Events in quadrant C | 3,628,352 | 532,311 |
| Events in quadrant D | 4,334,415 | 501,769 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15633 | 2 |
| B | 0 | 16322 | 2 |
| C | 0 | 15525 | 2 |
| D | 0 | 17932 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7518 | 63 | 0.837989% |
| B | 7519 | 104 | 1.383163% |
| C | 7519 | 104 | 1.383163% |
| D | 7519 | 203 | 2.699827% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9358 | 7520 | 3 | 3 | 0.03% | 0.04% |  |
| B | 9359 | 7520 | 24 | 24 | 0.26% | 0.32% |  |
| C | 9359 | 7521 | 4 | 4 | 0.04% | 0.05% |  |
| D | 9359 | 7521 | 113 | 113 | 1.21% | 1.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 45405 | 237.89 | 923 | 902 | 187.1 |
| A | 13 | 254 | 14320 | 71.72 | 923 | 902 | 187.1 |
| A | 0 | 226 | 8003 | 37.96 | 923 | 902 | 187.1 |
| B | 3 | 64 | 105713 | 592.78 | 928 | 905 | 176.8 |
| B | 0 | 230 | 73872 | 412.69 | 928 | 905 | 176.8 |
| B | 0 | 190 | 29849 | 163.7 | 928 | 905 | 176.8 |
| C | 14 | 238 | 139156 | 663.99 | 889 | 894 | 208.2 |
| C | 10 | 23 | 17142 | 78.03 | 889 | 894 | 208.2 |
| C | 13 | 61 | 6181 | 25.39 | 889 | 894 | 208.2 |
| D | 7 | 238 | 427774 | 1926.13 | 879 | 854 | 221.6 |
| D | 13 | 174 | 177969 | 799.09 | 879 | 854 | 221.6 |
| D | 1 | 52 | 175079 | 786.05 | 879 | 854 | 221.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

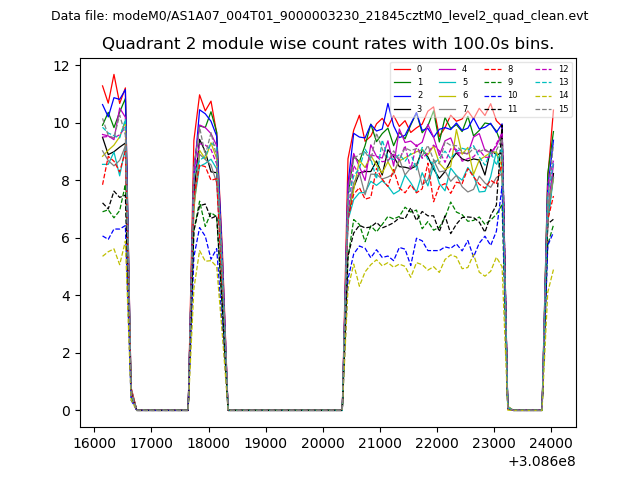

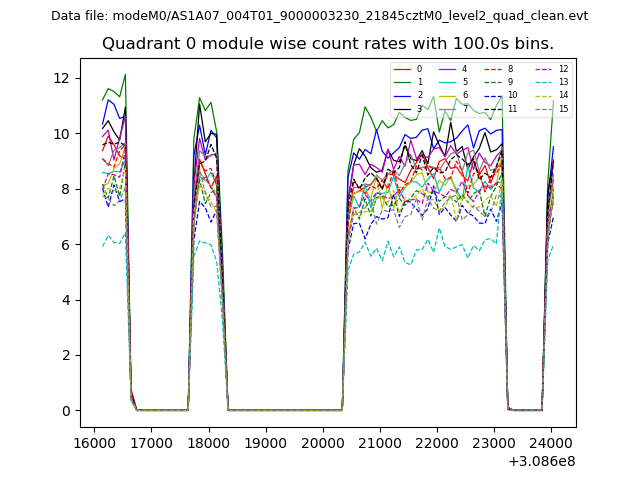

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

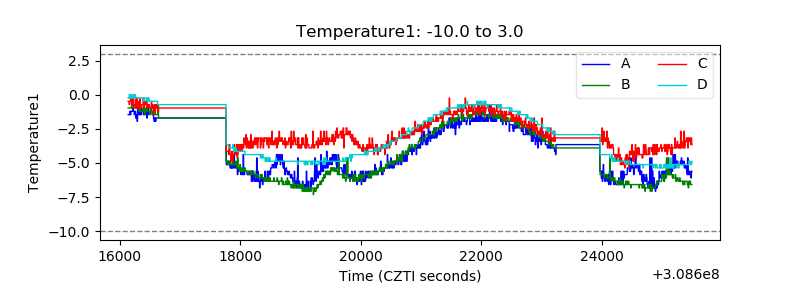

| Temperature 1 |  |
| Veto HV Monitor |  |

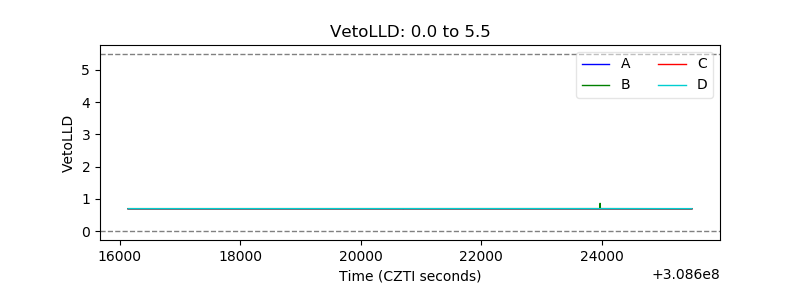

| Veto LLD |  |
| Alpha Counter |  |

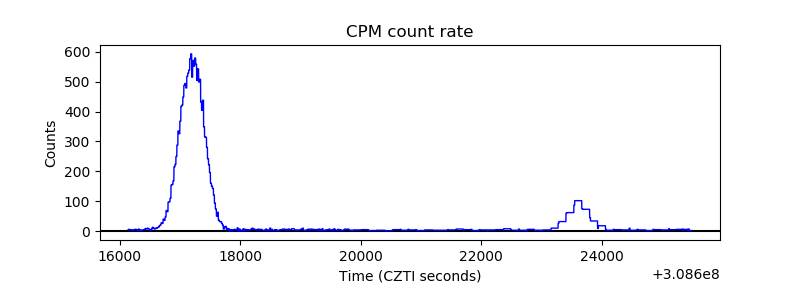

| _CPM_Rate |  |
| CZT Counter |  |

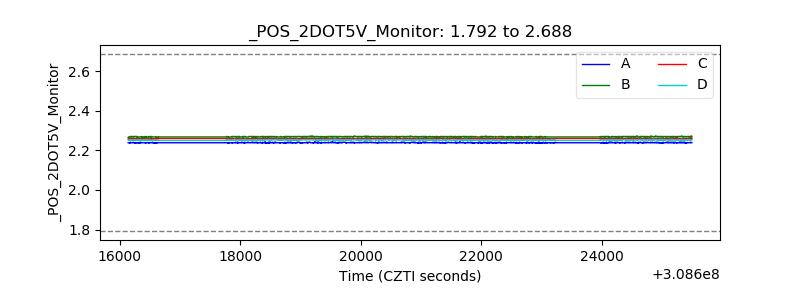

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

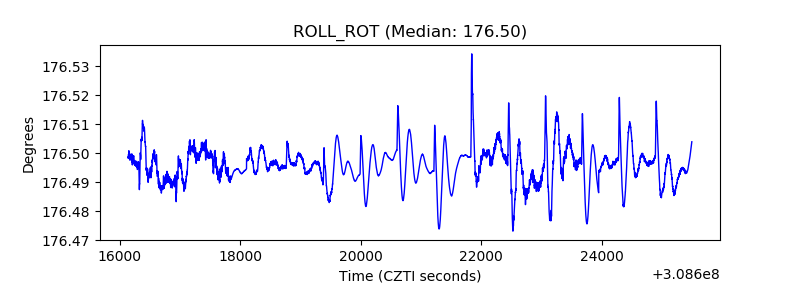

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
