| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21851cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21851cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,062,400 | 102,510,720 |
| Size | 469.3 MB | 97.8 MB |
| Events in quadrant A | 3,271,147 | 669,227 |
| Events in quadrant B | 3,554,988 | 678,640 |
| Events in quadrant C | 3,234,623 | 654,328 |
| Events in quadrant D | 4,382,193 | 630,821 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14063 | 1 |
| B | 0 | 14711 | 1 |
| C | 0 | 14015 | 1 |
| D | 0 | 17940 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6763 | 47 | 0.694958% |
| B | 6762 | 61 | 0.902100% |
| C | 6762 | 63 | 0.931677% |
| D | 6762 | 141 | 2.085182% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7693 | 6764 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7692 | 6763 | 19 | 19 | 0.25% | 0.28% |  |
| C | 7692 | 6763 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7692 | 6763 | 70 | 70 | 0.91% | 1.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 40230 | 233.33 | 834 | 817 | 168.9 |
| A | 13 | 254 | 13344 | 74.16 | 834 | 817 | 168.9 |
| A | 10 | 17 | 8884 | 47.76 | 834 | 817 | 168.9 |
| B | 3 | 64 | 113862 | 703.82 | 828 | 806 | 160.6 |
| B | 0 | 190 | 53418 | 327.53 | 828 | 806 | 160.6 |
| B | 0 | 230 | 43563 | 266.18 | 828 | 806 | 160.6 |
| C | 14 | 238 | 121840 | 646.64 | 792 | 798 | 187.2 |
| C | 5 | 112 | 12504 | 62.54 | 792 | 798 | 187.2 |
| C | 4 | 175 | 10492 | 51.79 | 792 | 798 | 187.2 |
| D | 13 | 174 | 564301 | 2631.33 | 796 | 781 | 214.2 |
| D | 13 | 172 | 274338 | 1277.36 | 796 | 781 | 214.2 |
| D | 1 | 52 | 238791 | 1111.38 | 796 | 781 | 214.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

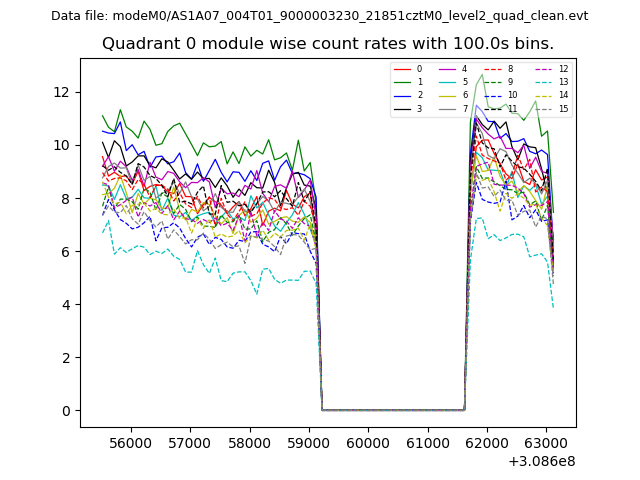

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

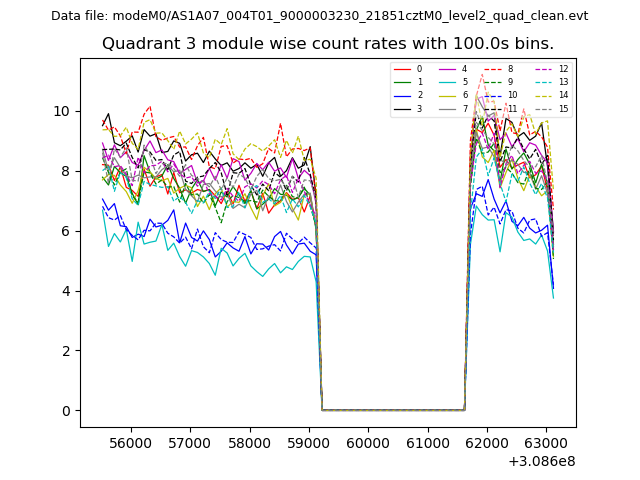

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

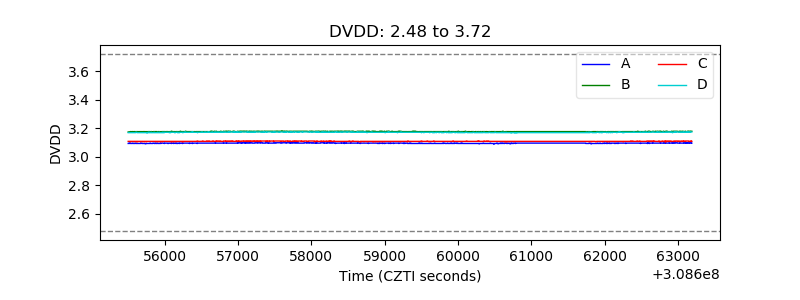

| D_VDD |  |

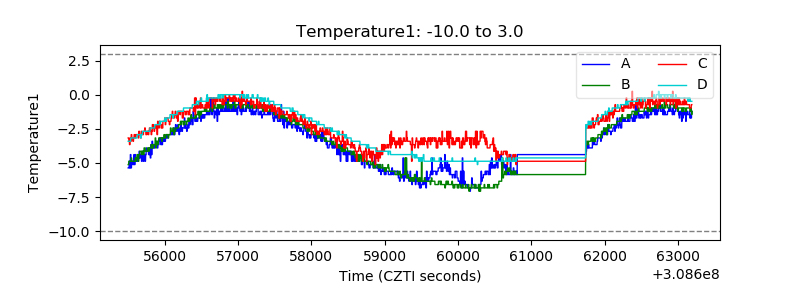

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

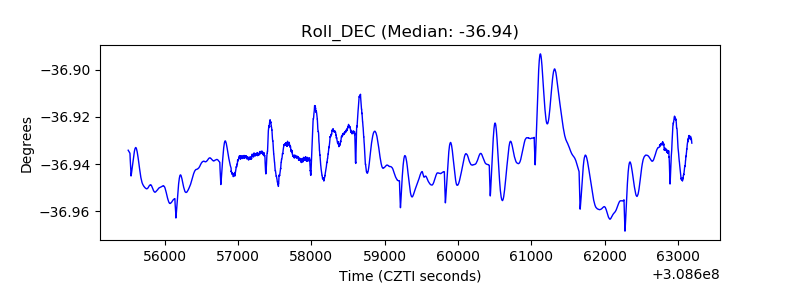

| _Roll_DEC |  |
| _Roll_RA |  |

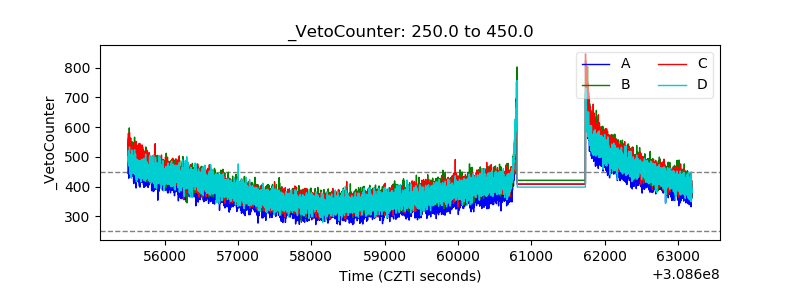

| Veto Counter |  |
