| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21852cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21852cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,976,320 | 97,116,480 |
| Size | 447.3 MB | 92.6 MB |
| Events in quadrant A | 3,333,281 | 633,954 |
| Events in quadrant B | 3,504,366 | 639,145 |
| Events in quadrant C | 3,135,251 | 613,884 |
| Events in quadrant D | 3,786,511 | 598,553 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14256 | 1 |
| B | 0 | 14604 | 1 |
| C | 0 | 13605 | 1 |
| D | 0 | 15706 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6534 | 93 | 1.423324% |
| B | 6534 | 90 | 1.377410% |
| C | 6534 | 67 | 1.025406% |
| D | 6535 | 108 | 1.652640% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6534 | 35 | 35 | 0.46% | 0.54% |  |
| B | 7599 | 6534 | 24 | 24 | 0.32% | 0.37% |  |
| C | 7599 | 6535 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7600 | 6536 | 54 | 54 | 0.71% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 114851 | 690.76 | 816 | 800 | 165.1 |
| A | 4 | 2 | 63968 | 382.58 | 816 | 800 | 165.1 |
| A | 13 | 254 | 13118 | 74.6 | 816 | 800 | 165.1 |
| B | 3 | 64 | 109009 | 700.59 | 809 | 790 | 154.5 |
| B | 0 | 245 | 103513 | 665.01 | 809 | 790 | 154.5 |
| B | 0 | 230 | 51529 | 328.47 | 809 | 790 | 154.5 |
| C | 14 | 238 | 121527 | 666.49 | 770 | 777 | 181.2 |
| C | 4 | 175 | 10135 | 51.65 | 770 | 777 | 181.2 |
| C | 13 | 61 | 5425 | 25.66 | 770 | 777 | 181.2 |
| D | 1 | 52 | 300005 | 1535.91 | 779 | 761 | 194.8 |
| D | 7 | 238 | 141537 | 722.55 | 779 | 761 | 194.8 |
| D | 13 | 174 | 132631 | 676.84 | 779 | 761 | 194.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

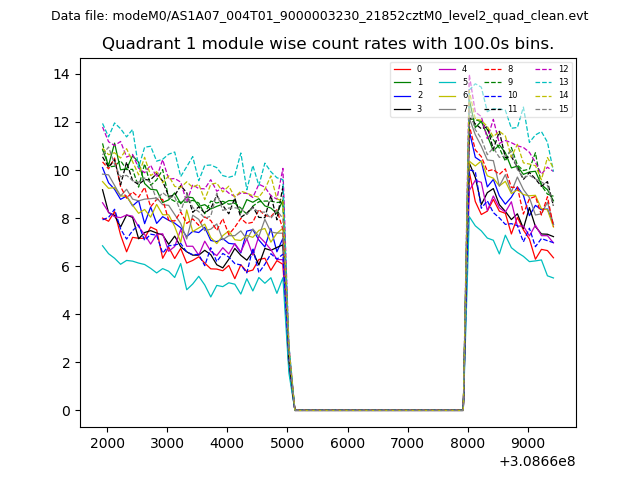

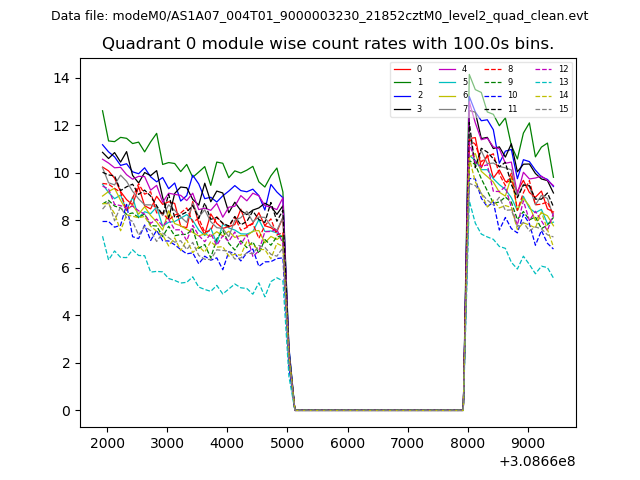

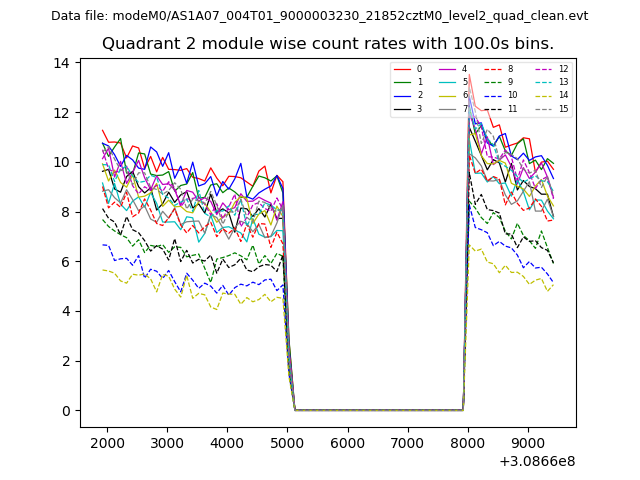

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

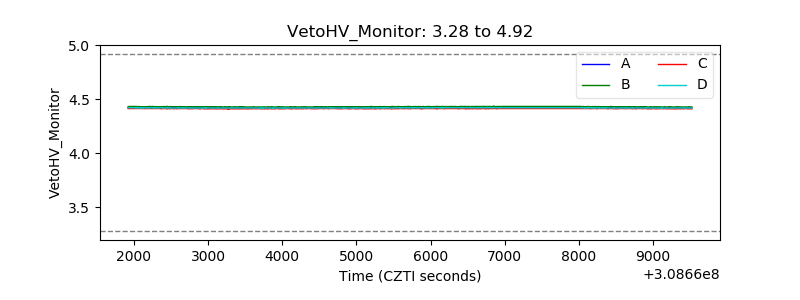

| Veto HV Monitor |  |

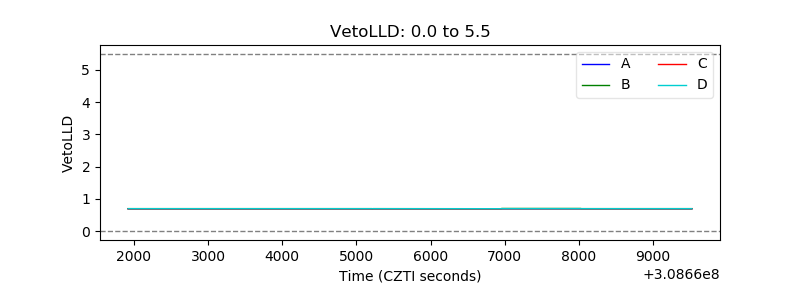

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

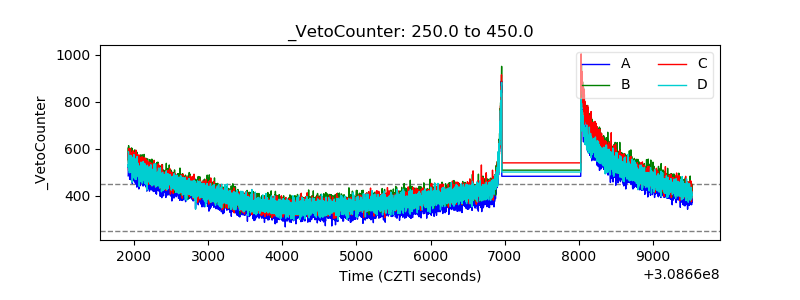

| Veto Counter |  |
