| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_004T01_9000003230_21854cztM0_level2.evt | modeM0/AS1A07_004T01_9000003230_21854cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,964,480 | 87,658,560 |
| Size | 426.3 MB | 83.6 MB |
| Events in quadrant A | 3,254,046 | 568,931 |
| Events in quadrant B | 3,487,529 | 574,434 |
| Events in quadrant C | 2,957,212 | 548,237 |
| Events in quadrant D | 3,423,781 | 537,592 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13680 | 1 |
| B | 0 | 14180 | 1 |
| C | 0 | 12723 | 1 |
| D | 0 | 14361 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6091 | 107 | 1.756690% |
| B | 6092 | 129 | 2.117531% |
| C | 6092 | 74 | 1.214708% |
| D | 6092 | 75 | 1.231123% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7276 | 6091 | 49 | 49 | 0.67% | 0.80% |  |
| B | 7277 | 6092 | 59 | 59 | 0.81% | 0.97% |  |
| C | 7277 | 6092 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7277 | 6092 | 26 | 26 | 0.36% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 162991 | 1045.8 | 772 | 759 | 155.1 |
| A | 2 | 79 | 110010 | 704.27 | 772 | 759 | 155.1 |
| A | 13 | 254 | 12245 | 74.04 | 772 | 759 | 155.1 |
| B | 3 | 64 | 146733 | 1000.6 | 766 | 750 | 145.9 |
| B | 0 | 245 | 141698 | 966.09 | 766 | 750 | 145.9 |
| B | 4 | 171 | 79162 | 537.45 | 766 | 750 | 145.9 |
| C | 14 | 238 | 115142 | 675.77 | 725 | 729 | 169.3 |
| C | 4 | 175 | 5498 | 28.17 | 725 | 729 | 169.3 |
| C | 10 | 23 | 5265 | 26.79 | 725 | 729 | 169.3 |
| D | 7 | 238 | 248253 | 1407.91 | 734 | 718 | 175.8 |
| D | 1 | 52 | 90777 | 512.23 | 734 | 718 | 175.8 |
| D | 12 | 233 | 78434 | 442.03 | 734 | 718 | 175.8 |

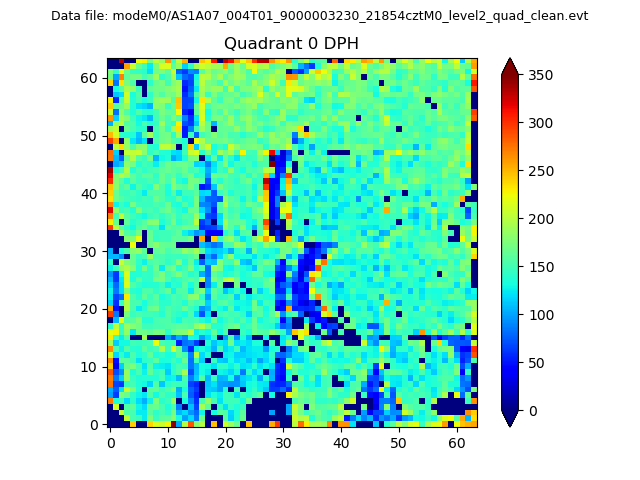

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

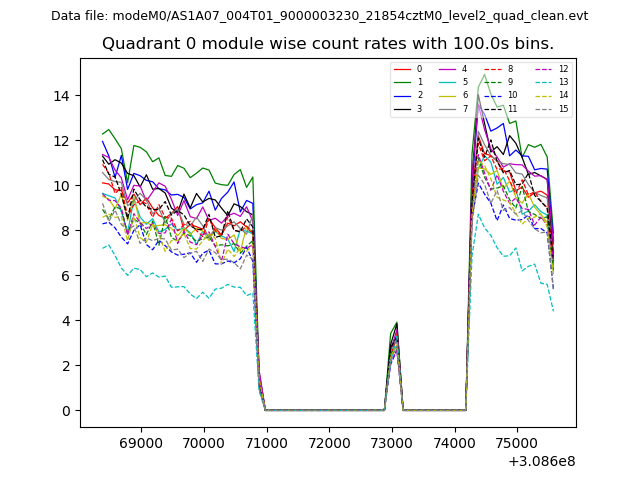

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

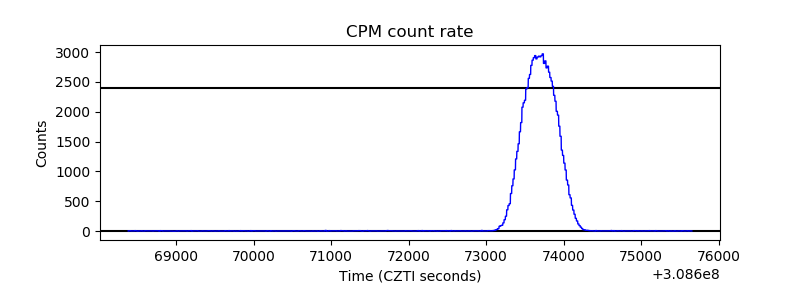

| _CPM_Rate |  |

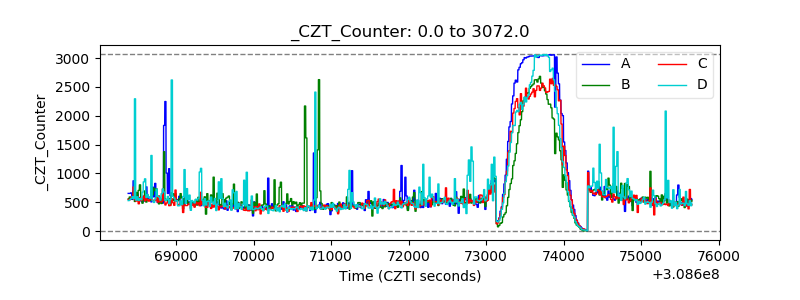

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

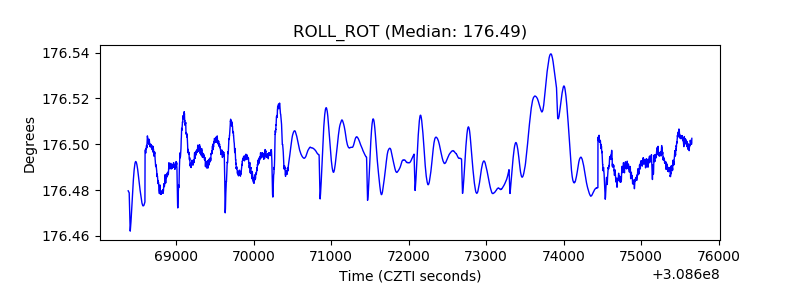

| _ROLL_ROT |  |

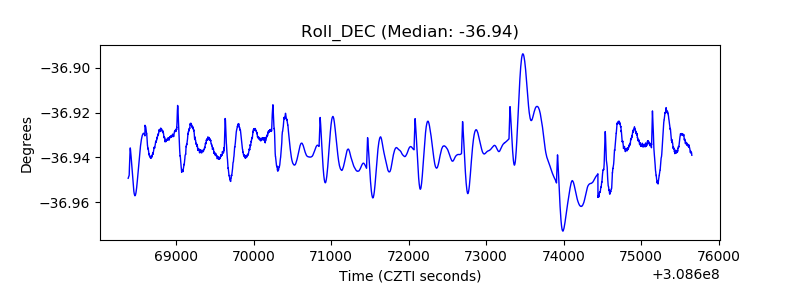

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
