| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003232_21870cztM0_level2.evt | modeM0/AS1A07_118T01_9000003232_21870cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,896,000 | 99,535,680 |
| Size | 459.6 MB | 94.9 MB |
| Events in quadrant A | 3,387,418 | 657,038 |
| Events in quadrant B | 3,502,367 | 670,266 |
| Events in quadrant C | 3,309,176 | 635,745 |
| Events in quadrant D | 3,962,157 | 606,118 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14075 | 2 |
| B | 0 | 14420 | 2 |
| C | 0 | 13736 | 3 |
| D | 0 | 15971 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6381 | 91 | 1.426109% |
| B | 6381 | 105 | 1.645510% |
| C | 6380 | 112 | 1.755486% |
| D | 6380 | 143 | 2.241379% |

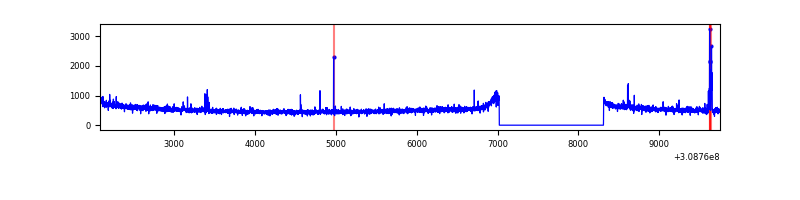

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7671 | 6381 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7671 | 6381 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7670 | 6380 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7670 | 6380 | 97 | 97 | 1.26% | 1.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 71798 | 416.19 | 858 | 844 | 170.5 |
| A | 13 | 254 | 11735 | 63.88 | 858 | 844 | 170.5 |
| A | 0 | 226 | 7575 | 39.48 | 858 | 844 | 170.5 |
| B | 3 | 64 | 63075 | 386.22 | 857 | 840 | 161.1 |
| B | 0 | 190 | 27631 | 166.26 | 857 | 840 | 161.1 |
| B | 4 | 200 | 25756 | 154.62 | 857 | 840 | 161.1 |
| C | 14 | 238 | 130826 | 690.12 | 813 | 820 | 188.4 |
| C | 13 | 61 | 5816 | 26.52 | 813 | 820 | 188.4 |
| C | 10 | 22 | 4337 | 18.67 | 813 | 820 | 188.4 |
| D | 7 | 238 | 446775 | 2233.11 | 820 | 797 | 199.7 |
| D | 2 | 136 | 120432 | 599.04 | 820 | 797 | 199.7 |
| D | 1 | 52 | 83175 | 412.48 | 820 | 797 | 199.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

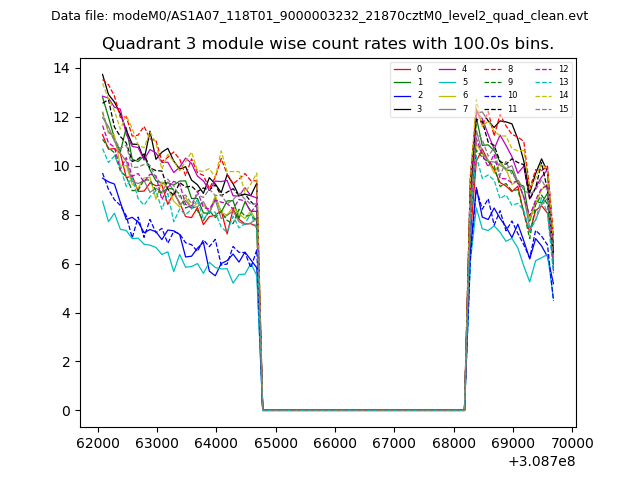

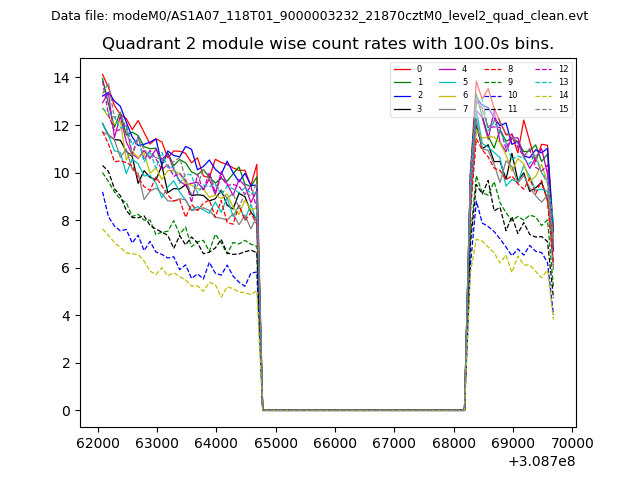

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

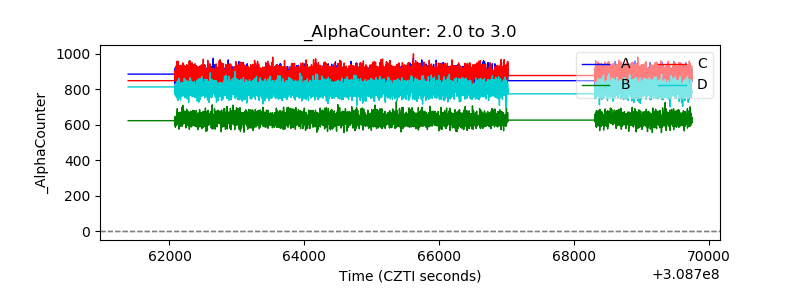

| Alpha Counter |  |
| _CPM_Rate |  |

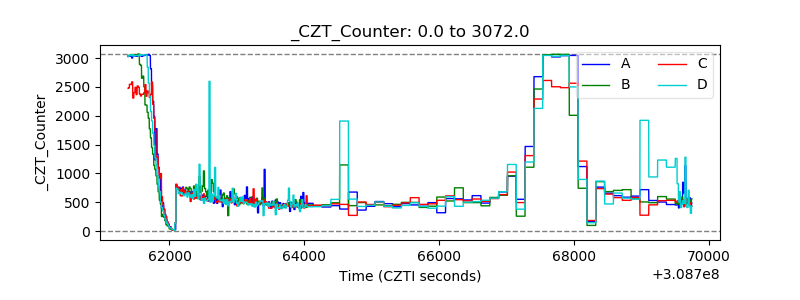

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

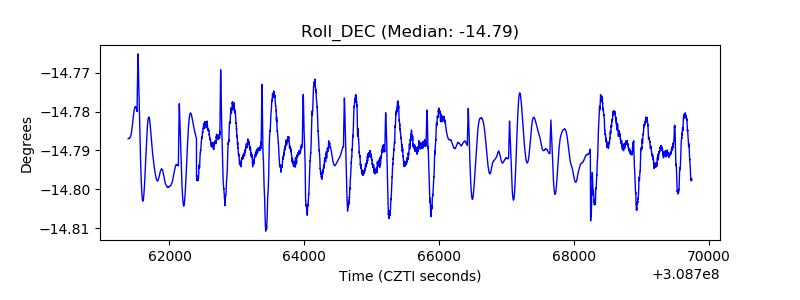

| _Roll_DEC |  |

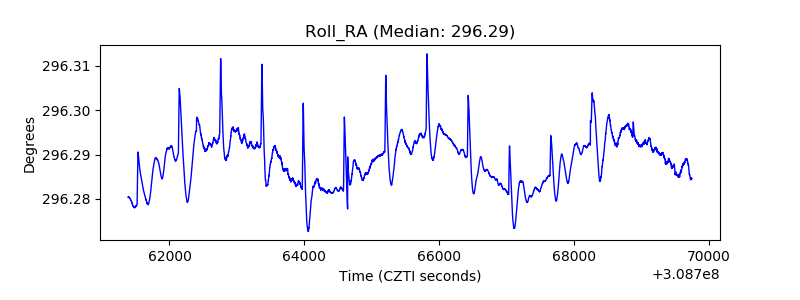

| _Roll_RA |  |

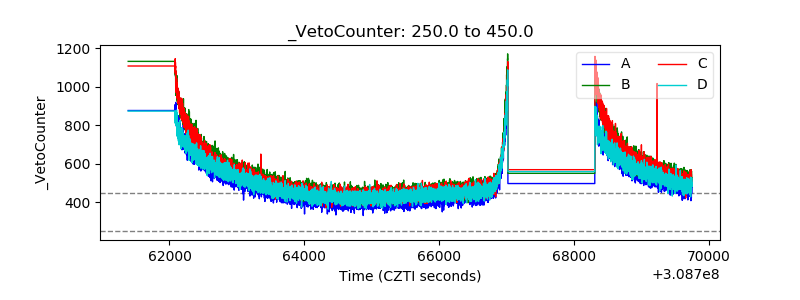

| Veto Counter |  |
