| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003232_21873cztM0_level2.evt | modeM0/AS1A07_118T01_9000003232_21873cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,712,320 | 89,245,440 |
| Size | 441.3 MB | 85.1 MB |
| Events in quadrant A | 3,165,366 | 566,806 |
| Events in quadrant B | 3,369,923 | 585,612 |
| Events in quadrant C | 3,188,669 | 561,052 |
| Events in quadrant D | 3,846,370 | 534,347 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13620 | 2 |
| B | 0 | 14048 | 2 |
| C | 0 | 13519 | 2 |
| D | 0 | 15685 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6529 | 35 | 0.536070% |
| B | 6529 | 65 | 0.995558% |
| C | 6529 | 60 | 0.918977% |
| D | 6529 | 163 | 2.496554% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

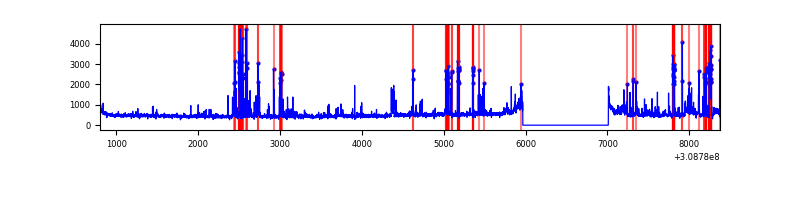

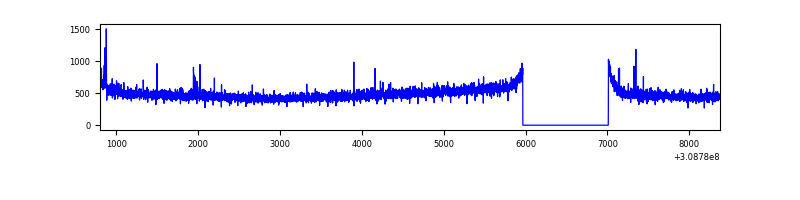

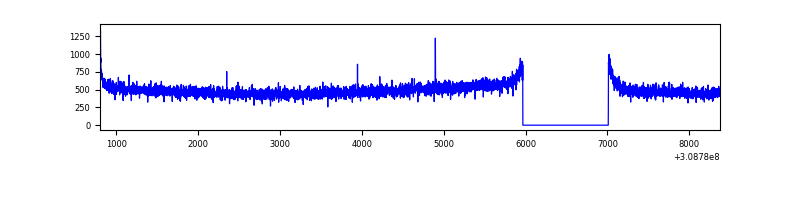

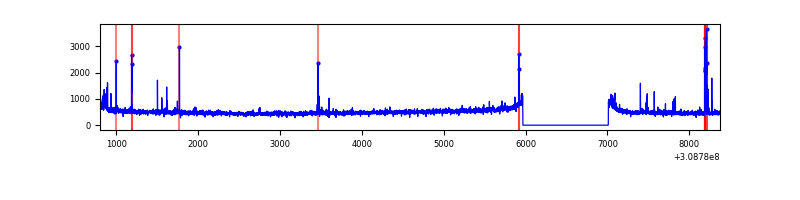

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6530 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7574 | 6530 | 14 | 14 | 0.18% | 0.21% |  |
| C | 7574 | 6530 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7574 | 6530 | 130 | 130 | 1.72% | 1.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 14116 | 80.77 | 814 | 800 | 164.9 |
| A | 13 | 254 | 11333 | 63.89 | 814 | 800 | 164.9 |
| A | 4 | 2 | 8748 | 48.21 | 814 | 800 | 164.9 |
| B | 3 | 64 | 81339 | 512.76 | 820 | 799 | 157.1 |
| B | 0 | 190 | 28050 | 173.49 | 820 | 799 | 157.1 |
| B | 12 | 111 | 18567 | 113.12 | 820 | 799 | 157.1 |
| C | 14 | 238 | 123197 | 668.2 | 784 | 791 | 183.2 |
| C | 0 | 10 | 7322 | 35.65 | 784 | 791 | 183.2 |
| C | 13 | 61 | 5653 | 26.54 | 784 | 791 | 183.2 |
| D | 1 | 52 | 623626 | 3302.83 | 779 | 759 | 188.6 |
| D | 7 | 238 | 108646 | 572.08 | 779 | 759 | 188.6 |
| D | 12 | 227 | 59983 | 314.04 | 779 | 759 | 188.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

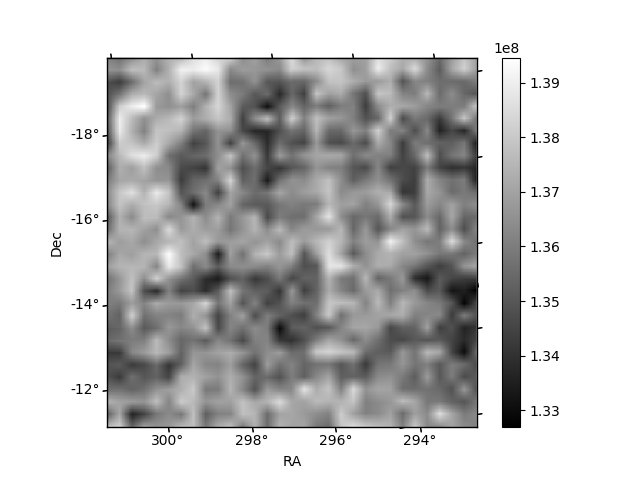

| Plot type | Count rate plots | Images |
|---|---|---|

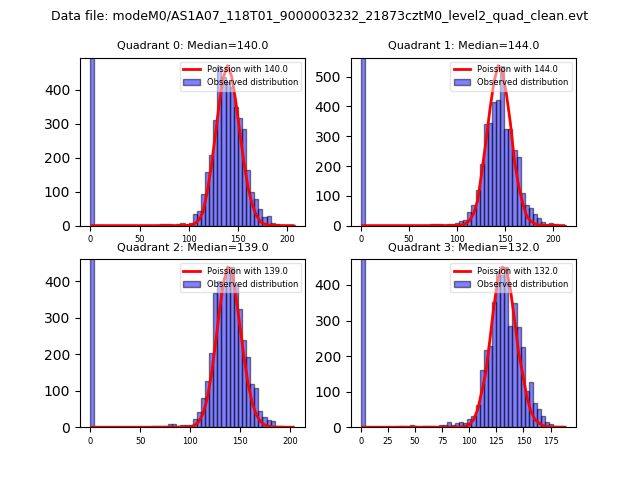

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

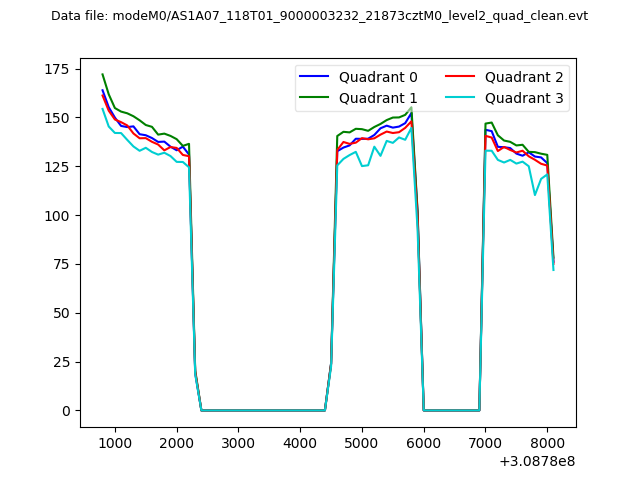

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

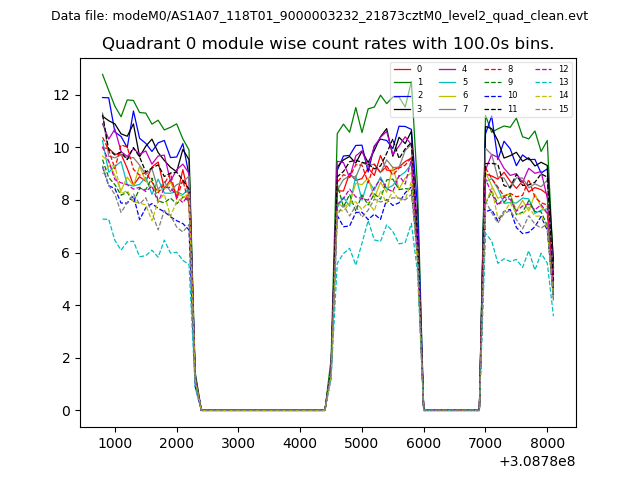

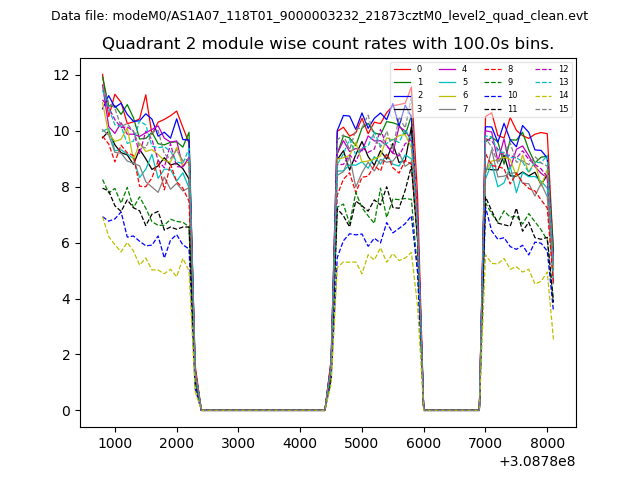

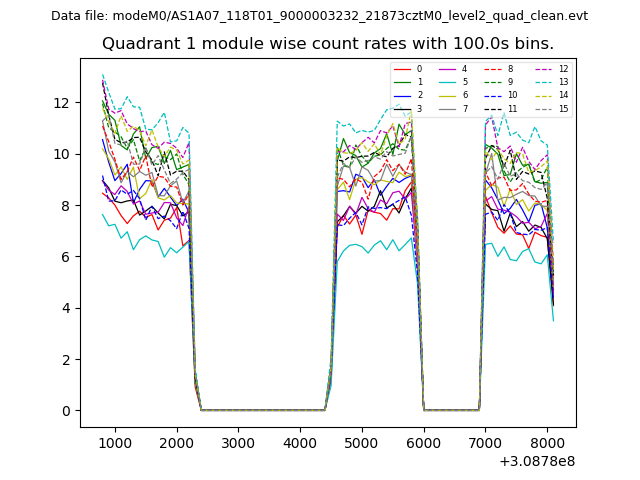

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

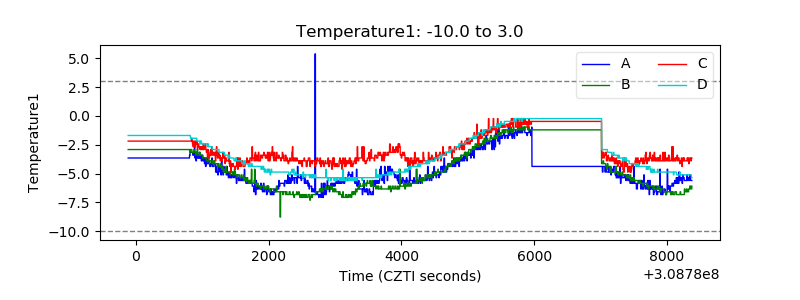

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

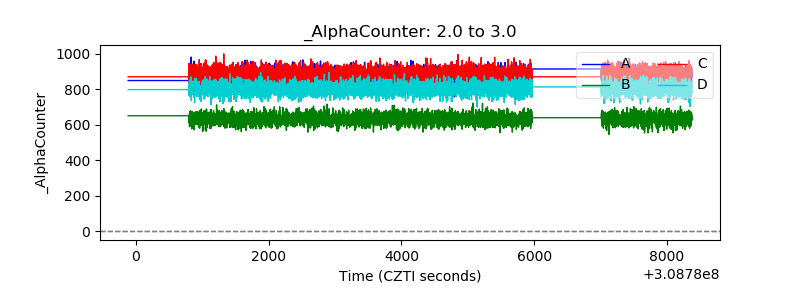

| Alpha Counter |  |

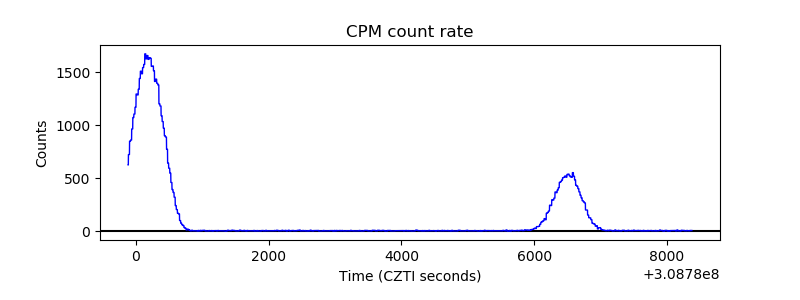

| _CPM_Rate |  |

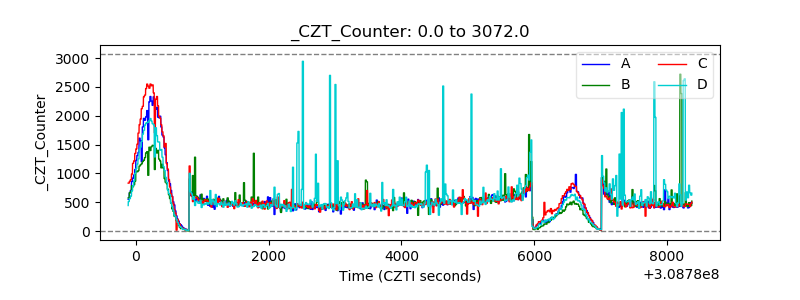

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

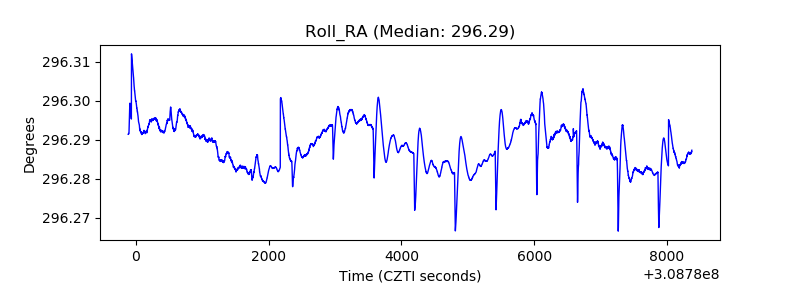

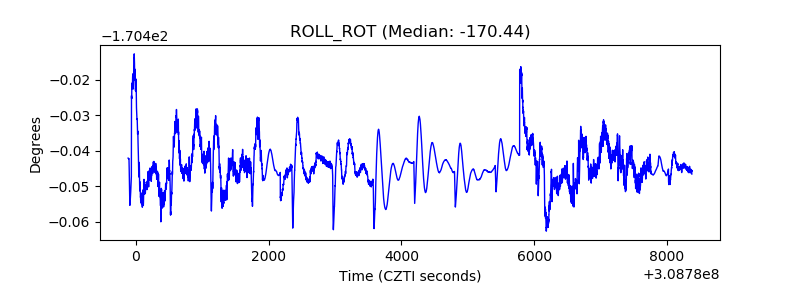

| _ROLL_ROT |  |

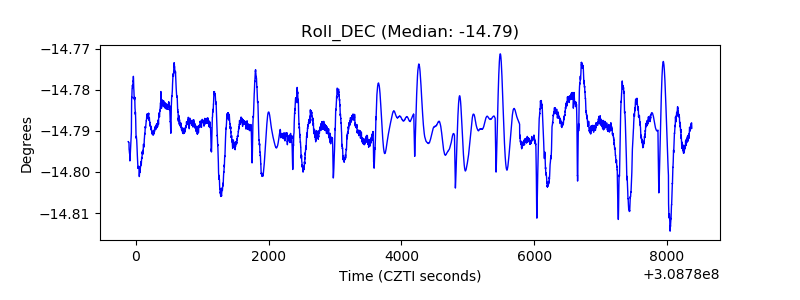

| _Roll_DEC |  |
| _Roll_RA |  |

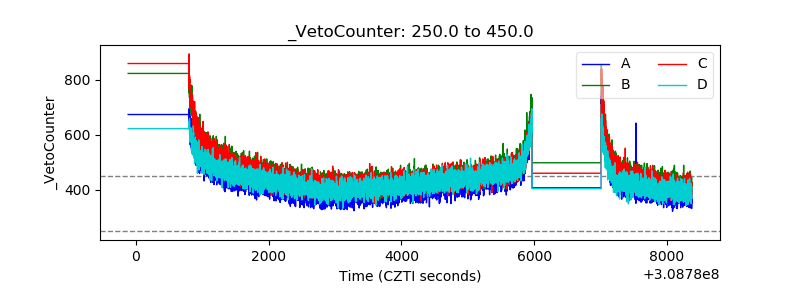

| Veto Counter |  |
