| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_041T01_9000003234_21877cztM0_level2.evt | modeM0/AS1A07_041T01_9000003234_21877cztM0_level2_quad_clean.evt |
| Size (bytes) | 117,178,560 | 5,621,760 |
| Size | 111.8 MB | 5.4 MB |
| Events in quadrant A | 775,844 | 11,933 |
| Events in quadrant B | 806,727 | 12,541 |
| Events in quadrant C | 811,248 | 12,002 |
| Events in quadrant D | 1,039,340 | 10,757 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3421 | 1 |
| B | 0 | 3462 | 1 |
| C | 0 | 3433 | 1 |
| D | 0 | 4188 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1664 | 33 | 1.983173% |
| B | 1664 | 37 | 2.223558% |
| C | 1664 | 44 | 2.644231% |
| D | 1664 | 86 | 5.168269% |

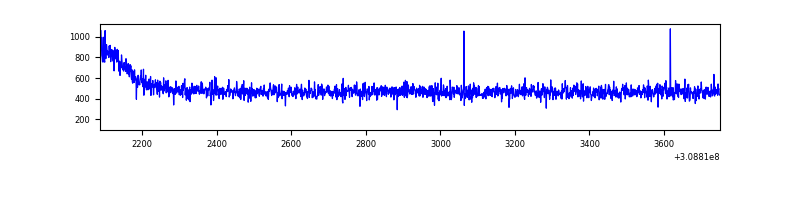

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1664 | 1664 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1664 | 1664 | 1 | 1 | 0.06% | 0.06% |  |
| C | 1664 | 1664 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1664 | 1664 | 54 | 54 | 3.25% | 3.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2929 | 65.09 | 200 | 195 | 42.0 |
| A | 3 | 137 | 1762 | 37.31 | 200 | 195 | 42.0 |
| A | 0 | 226 | 1633 | 34.24 | 200 | 195 | 42.0 |
| B | 6 | 36 | 12396 | 294.85 | 202 | 196 | 41.4 |
| B | 12 | 111 | 4956 | 115.04 | 202 | 196 | 41.4 |
| B | 11 | 111 | 4391 | 101.38 | 202 | 196 | 41.4 |
| C | 14 | 238 | 30802 | 641.94 | 198 | 198 | 47.7 |
| C | 10 | 91 | 5148 | 103.83 | 198 | 198 | 47.7 |
| C | 7 | 220 | 1820 | 34.02 | 198 | 198 | 47.7 |
| D | 2 | 136 | 169144 | 3511.38 | 192 | 185 | 48.1 |
| D | 7 | 238 | 108282 | 2246.52 | 192 | 185 | 48.1 |
| D | 1 | 52 | 20376 | 419.62 | 192 | 185 | 48.1 |

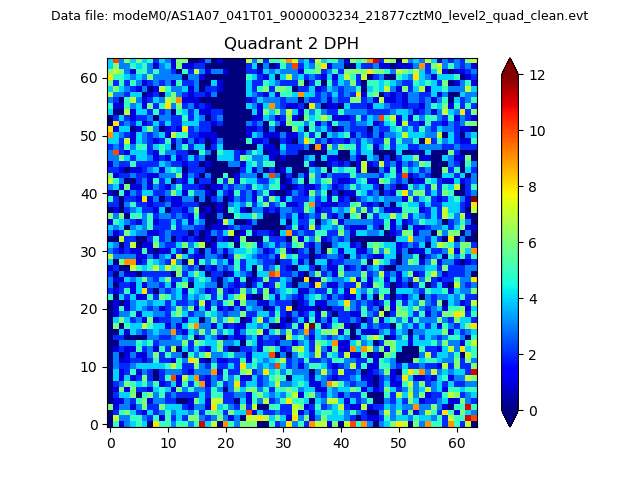

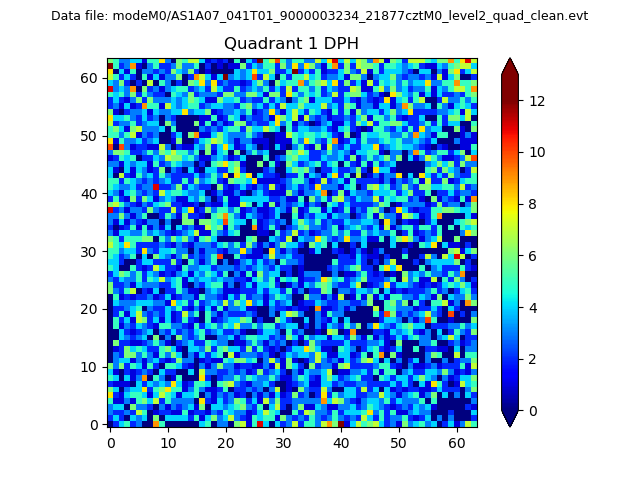

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

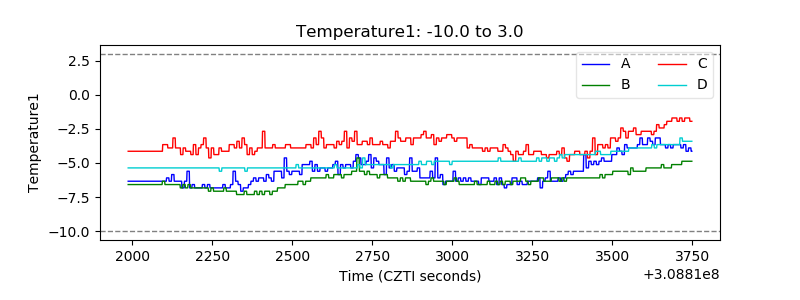

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

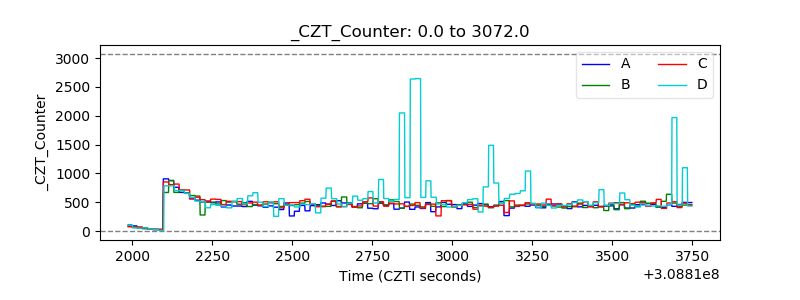

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

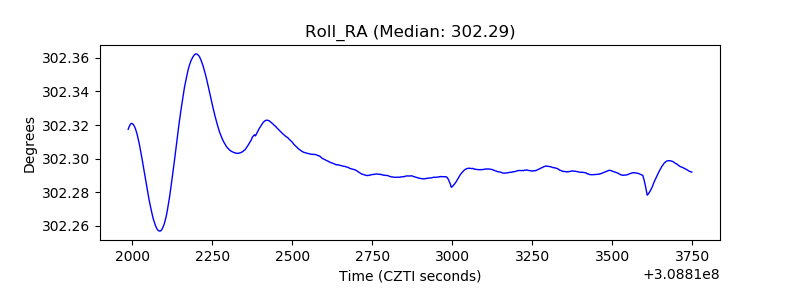

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
