| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_041T01_9000003234_21887cztM0_level2.evt | modeM0/AS1A07_041T01_9000003234_21887cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,081,600 | 95,578,560 |
| Size | 475.0 MB | 91.2 MB |
| Events in quadrant A | 3,100,509 | 625,142 |
| Events in quadrant B | 3,252,216 | 645,178 |
| Events in quadrant C | 3,084,539 | 616,094 |
| Events in quadrant D | 5,218,641 | 567,172 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13325 | 2 |
| B | 0 | 13692 | 2 |
| C | 0 | 13226 | 2 |
| D | 0 | 19838 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6317 | 45 | 0.712363% |
| B | 6317 | 75 | 1.187272% |
| C | 6317 | 72 | 1.139782% |
| D | 6317 | 438 | 6.933671% |

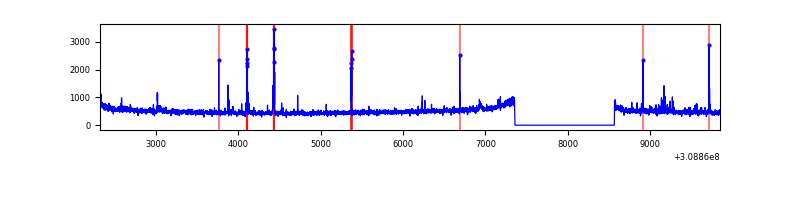

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7527 | 6318 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7527 | 6318 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7527 | 6318 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7527 | 6318 | 368 | 368 | 4.89% | 5.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 47522 | 297.01 | 784 | 769 | 157.4 |
| A | 5 | 16 | 15470 | 93.39 | 784 | 769 | 157.4 |
| A | 13 | 254 | 11785 | 69.98 | 784 | 769 | 157.4 |
| B | 3 | 64 | 79763 | 531.87 | 791 | 773 | 148.5 |
| B | 0 | 230 | 23515 | 153.13 | 791 | 773 | 148.5 |
| B | 4 | 200 | 22086 | 143.51 | 791 | 773 | 148.5 |
| C | 14 | 238 | 122084 | 696.89 | 752 | 757 | 174.1 |
| C | 0 | 10 | 16968 | 93.11 | 752 | 757 | 174.1 |
| C | 10 | 22 | 5961 | 29.89 | 752 | 757 | 174.1 |
| D | 1 | 52 | 1365684 | 7715.23 | 732 | 711 | 176.9 |
| D | 7 | 238 | 884118 | 4993.28 | 732 | 711 | 176.9 |
| D | 13 | 174 | 70261 | 393.12 | 732 | 711 | 176.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

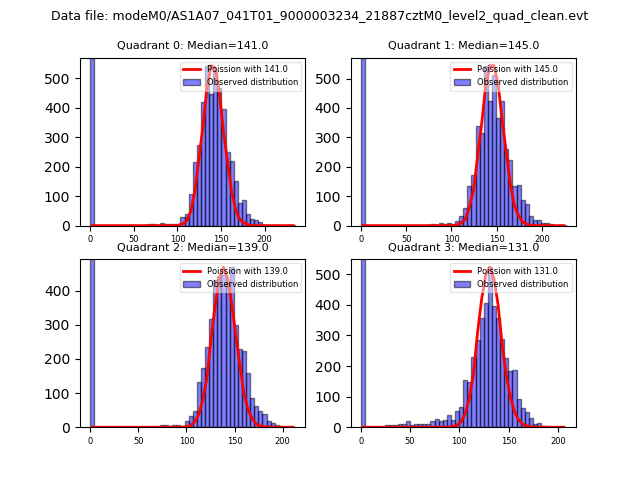

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

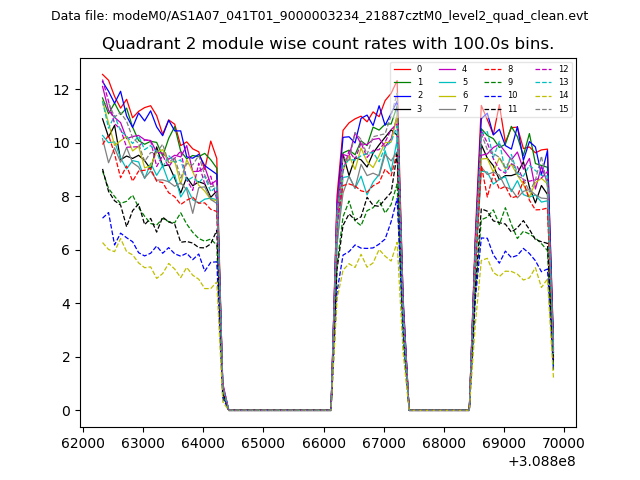

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

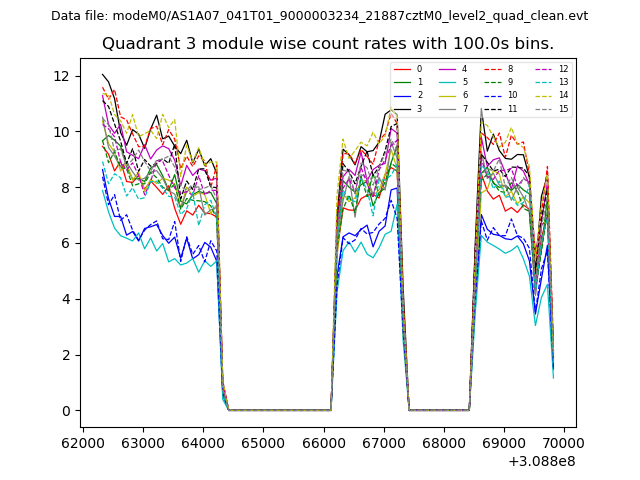

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

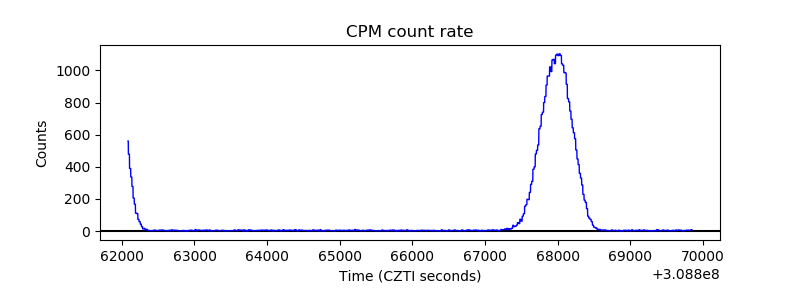

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

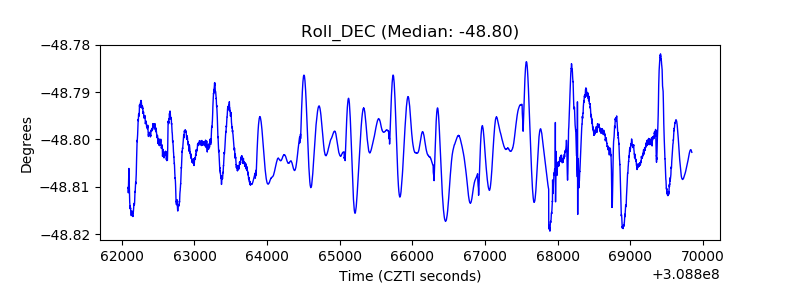

| _Roll_DEC |  |

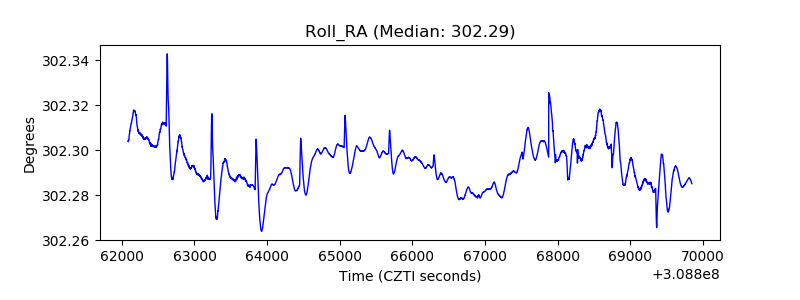

| _Roll_RA |  |

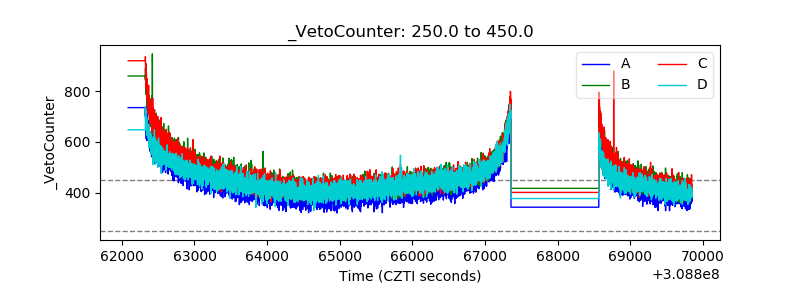

| Veto Counter |  |
