| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_041T01_9000003234_21897cztM0_level2.evt | modeM0/AS1A07_041T01_9000003234_21897cztM0_level2_quad_clean.evt |
| Size (bytes) | 271,509,120 | 52,692,480 |
| Size | 258.9 MB | 50.3 MB |
| Events in quadrant A | 1,908,590 | 333,232 |
| Events in quadrant B | 1,802,879 | 344,274 |
| Events in quadrant C | 2,371,595 | 329,893 |
| Events in quadrant D | 1,886,139 | 325,827 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8083 | 1 |
| B | 0 | 7679 | 1 |
| C | 0 | 9476 | 1 |
| D | 0 | 8072 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3706 | 46 | 1.241230% |
| B | 3706 | 10 | 0.269833% |
| C | 3706 | 272 | 7.339450% |
| D | 3706 | 23 | 0.620615% |

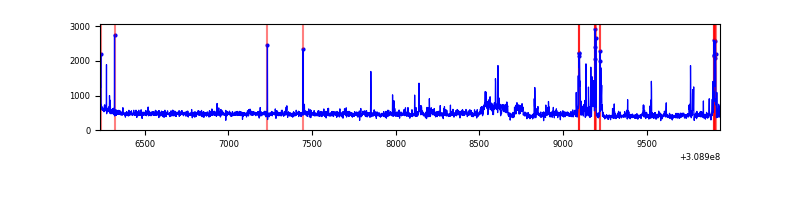

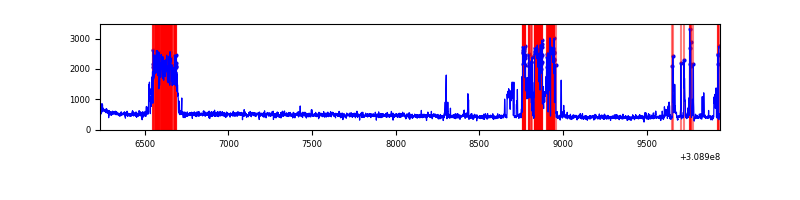

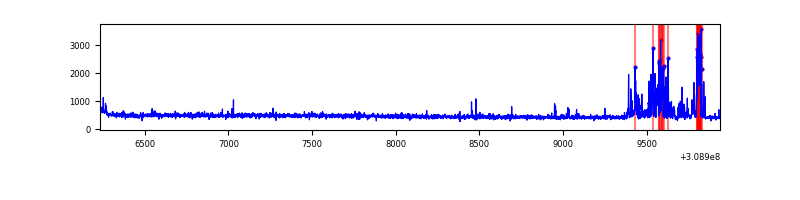

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3706 | 3706 | 31 | 31 | 0.84% | 0.84% |  |
| B | 3706 | 3706 | 2 | 2 | 0.05% | 0.05% |  |
| C | 3706 | 3706 | 191 | 191 | 5.15% | 5.15% |  |
| D | 3706 | 3706 | 19 | 19 | 0.51% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 210731 | 2385.31 | 433 | 423 | 88.2 |
| A | 4 | 2 | 16849 | 186.3 | 433 | 423 | 88.2 |
| A | 6 | 16 | 8903 | 96.18 | 433 | 423 | 88.2 |
| B | 0 | 230 | 30472 | 359.44 | 430 | 418 | 83.6 |
| B | 3 | 64 | 28723 | 338.52 | 430 | 418 | 83.6 |
| B | 0 | 197 | 28353 | 334.1 | 430 | 418 | 83.6 |
| C | 10 | 22 | 717468 | 7479.76 | 407 | 411 | 95.9 |
| C | 14 | 238 | 64304 | 666.48 | 407 | 411 | 95.9 |
| C | 13 | 61 | 2890 | 25.86 | 407 | 411 | 95.9 |
| D | 2 | 136 | 108246 | 1039.42 | 422 | 409 | 103.7 |
| D | 2 | 16 | 86331 | 828.19 | 422 | 409 | 103.7 |
| D | 1 | 52 | 26078 | 247.42 | 422 | 409 | 103.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

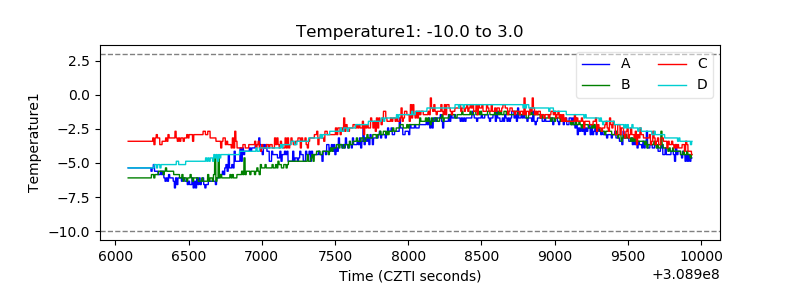

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

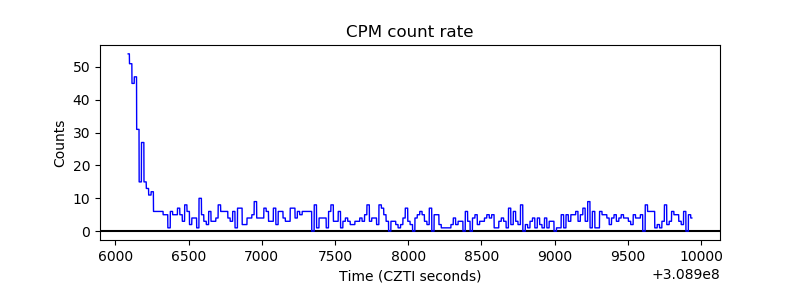

| _CPM_Rate |  |

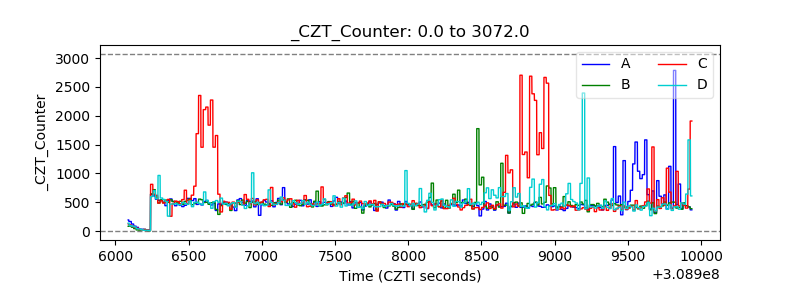

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

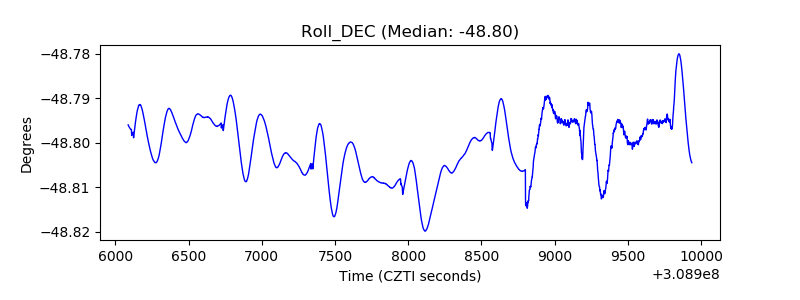

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
