| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_010T06_9000003238_21899cztM0_level2.evt | modeM0/AS1A07_010T06_9000003238_21899cztM0_level2_quad_clean.evt |
| Size (bytes) | 238,970,880 | 49,728,960 |
| Size | 227.9 MB | 47.4 MB |
| Events in quadrant A | 1,701,558 | 332,167 |
| Events in quadrant B | 1,710,007 | 338,757 |
| Events in quadrant C | 1,702,220 | 313,949 |
| Events in quadrant D | 1,920,068 | 308,967 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 0 |
| B | 0 | 62 | 0 |
| C | 0 | 62 | 0 |
| D | 0 | 62 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7025 | 1 |
| B | 0 | 7036 | 1 |
| C | 0 | 6939 | 1 |
| D | 0 | 7787 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2968 | 89 | 2.998652% |
| B | 2968 | 87 | 2.931267% |
| C | 2968 | 117 | 3.942049% |
| D | 2968 | 82 | 2.762803% |

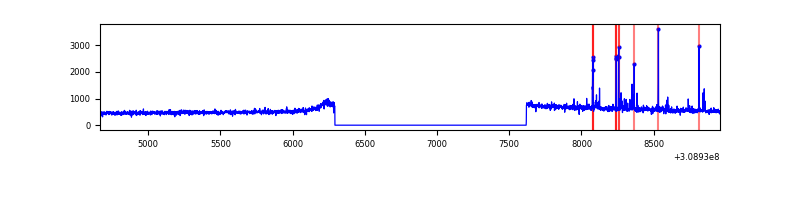

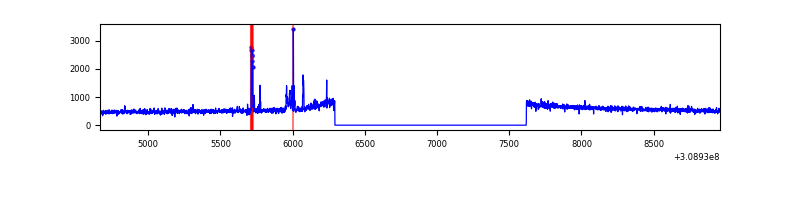

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4293 | 2968 | 11 | 11 | 0.26% | 0.37% |  |
| B | 4293 | 2968 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4293 | 2968 | 8 | 8 | 0.19% | 0.27% |  |
| D | 4293 | 2968 | 11 | 11 | 0.26% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 45263 | 529.18 | 423 | 416 | 84.7 |
| A | 5 | 16 | 22730 | 263.3 | 423 | 416 | 84.7 |
| A | 13 | 254 | 5562 | 60.72 | 423 | 416 | 84.7 |
| B | 0 | 190 | 26682 | 330.44 | 423 | 414 | 79.5 |
| B | 3 | 64 | 14994 | 183.41 | 423 | 414 | 79.5 |
| B | 12 | 111 | 8708 | 104.33 | 423 | 414 | 79.5 |
| C | 10 | 22 | 70935 | 762.32 | 400 | 403 | 92.5 |
| C | 14 | 238 | 66138 | 710.47 | 400 | 403 | 92.5 |
| C | 13 | 61 | 2877 | 26.74 | 400 | 403 | 92.5 |
| D | 12 | 227 | 164206 | 1706.05 | 406 | 395 | 96.0 |
| D | 7 | 238 | 122298 | 1269.59 | 406 | 395 | 96.0 |
| D | 0 | 11 | 41251 | 425.5 | 406 | 395 | 96.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

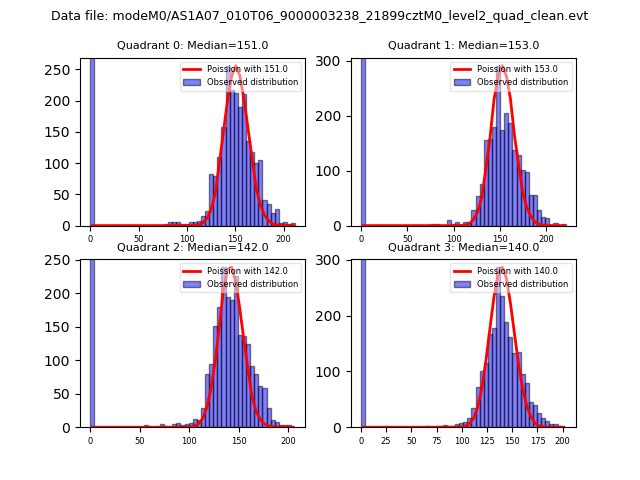

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

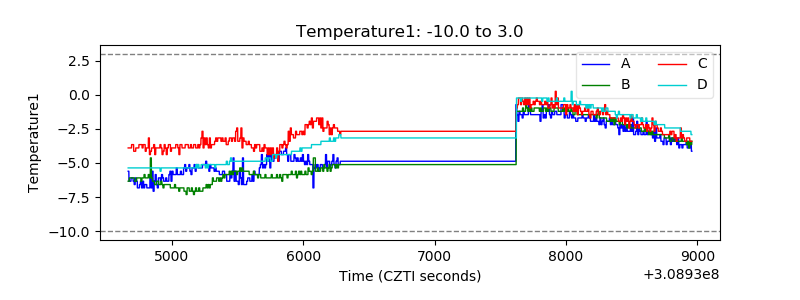

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

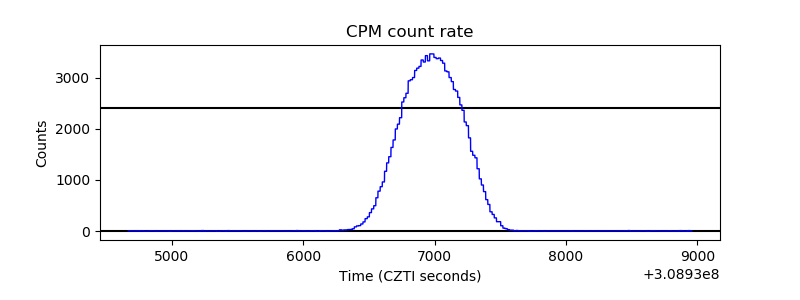

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

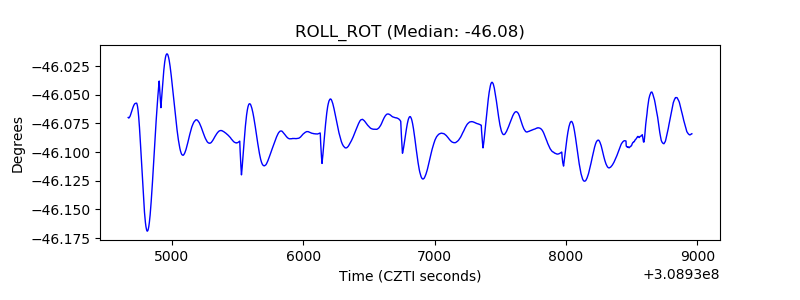

| _ROLL_ROT |  |

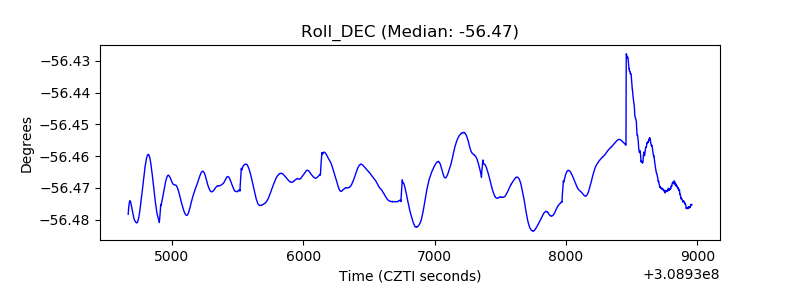

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
