| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_010T06_9000003238_21903cztM0_level2.evt | modeM0/AS1A07_010T06_9000003238_21903cztM0_level2_quad_clean.evt |
| Size (bytes) | 211,550,400 | 38,848,320 |
| Size | 201.8 MB | 37.0 MB |
| Events in quadrant A | 1,106,188 | 261,189 |
| Events in quadrant B | 1,193,538 | 267,147 |
| Events in quadrant C | 1,099,223 | 250,007 |
| Events in quadrant D | 2,848,934 | 231,141 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4858 | 1 |
| B | 0 | 5083 | 1 |
| C | 0 | 4850 | 1 |
| D | 0 | 10067 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2309 | 9 | 0.389779% |
| B | 2309 | 43 | 1.862278% |
| C | 2310 | 31 | 1.341991% |
| D | 2310 | 517 | 22.380952% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3404 | 2310 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3404 | 2310 | 9 | 9 | 0.26% | 0.39% |  |
| C | 3405 | 2311 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3405 | 2311 | 551 | 551 | 16.18% | 23.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 17739 | 298.16 | 282 | 276 | 58.6 |
| A | 13 | 254 | 4246 | 67.78 | 282 | 276 | 58.6 |
| A | 3 | 137 | 2444 | 37.02 | 282 | 276 | 58.6 |
| B | 3 | 64 | 41780 | 739.89 | 285 | 278 | 56.1 |
| B | 0 | 197 | 7036 | 120.48 | 285 | 278 | 56.1 |
| B | 4 | 171 | 6914 | 118.31 | 285 | 278 | 56.1 |
| C | 14 | 238 | 43009 | 667.27 | 269 | 270 | 64.1 |
| C | 0 | 10 | 7124 | 107.01 | 269 | 270 | 64.1 |
| C | 13 | 61 | 1935 | 25.99 | 269 | 270 | 64.1 |
| D | 7 | 238 | 1865491 | 30920.98 | 243 | 235 | 60.3 |
| D | 2 | 136 | 19560 | 320.36 | 243 | 235 | 60.3 |
| D | 1 | 52 | 15680 | 256.04 | 243 | 235 | 60.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

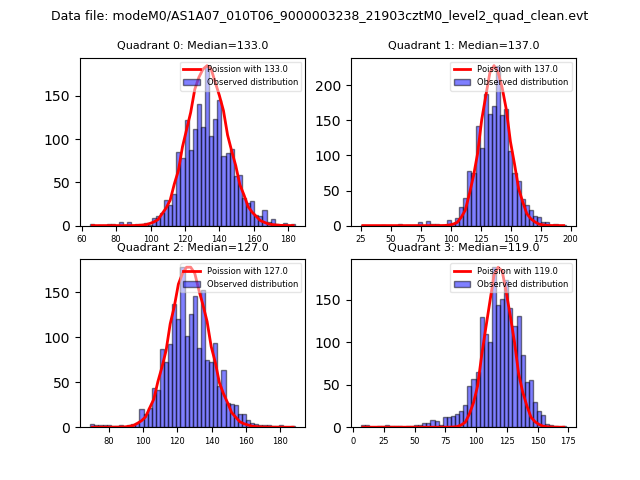

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

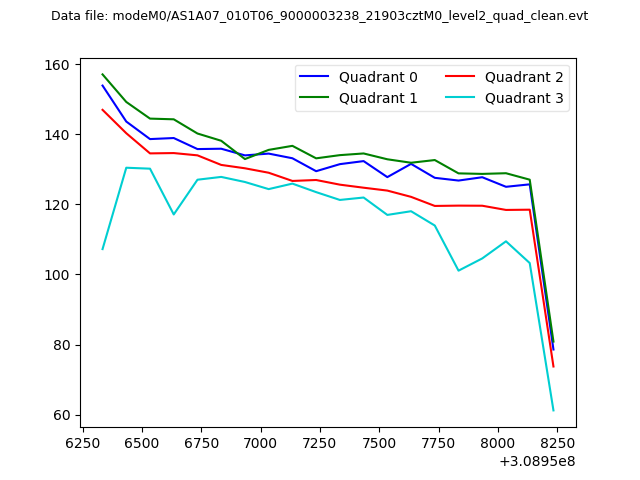

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

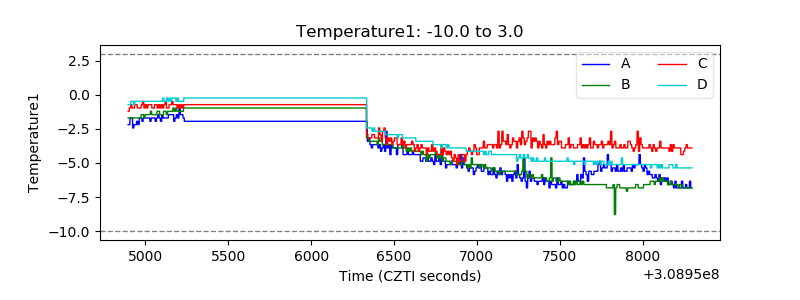

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

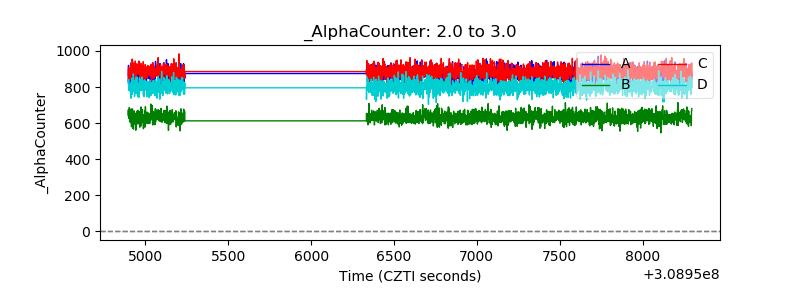

| Alpha Counter |  |
| _CPM_Rate |  |

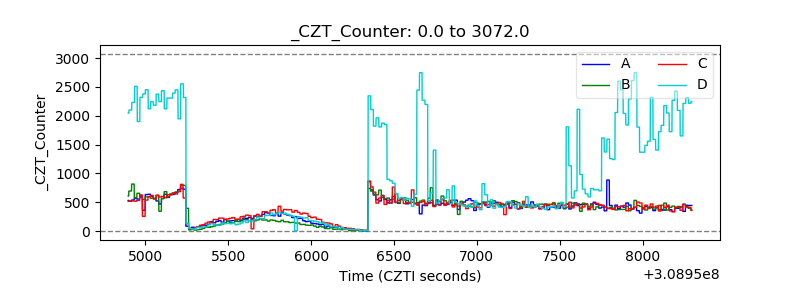

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

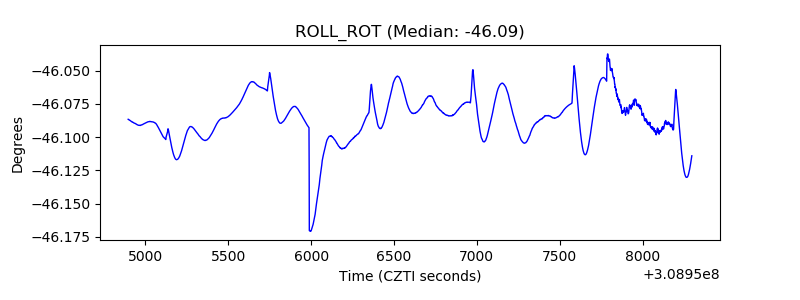

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
