| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_100T03_9000003242_21913cztM0_level2.evt | modeM0/AS1A07_100T03_9000003242_21913cztM0_level2_quad_clean.evt |
| Size (bytes) | 422,110,080 | 103,887,360 |
| Size | 402.6 MB | 99.1 MB |
| Events in quadrant A | 2,988,259 | 696,344 |
| Events in quadrant B | 3,082,782 | 701,574 |
| Events in quadrant C | 3,113,812 | 681,739 |
| Events in quadrant D | 3,212,451 | 669,405 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12621 | 1 |
| B | 0 | 12843 | 1 |
| C | 0 | 12852 | 2 |
| D | 0 | 13357 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5682 | 97 | 1.707145% |
| B | 5683 | 97 | 1.706845% |
| C | 5682 | 145 | 2.551918% |
| D | 5682 | 113 | 1.988736% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

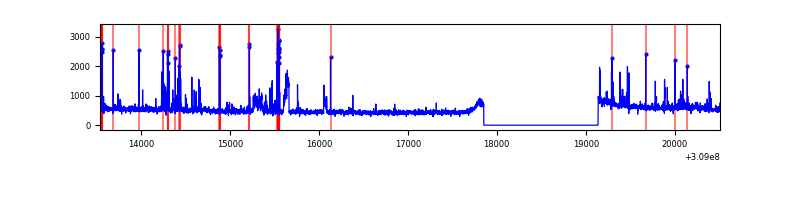

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6967 | 5682 | 14 | 14 | 0.20% | 0.25% |  |
| B | 6968 | 5683 | 8 | 8 | 0.11% | 0.14% |  |
| C | 6967 | 5682 | 27 | 27 | 0.39% | 0.48% |  |
| D | 6967 | 5682 | 38 | 38 | 0.55% | 0.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 77840 | 516.48 | 754 | 738 | 149.3 |
| A | 13 | 254 | 10722 | 66.88 | 754 | 738 | 149.3 |
| A | 0 | 226 | 6585 | 39.17 | 754 | 738 | 149.3 |
| B | 3 | 64 | 73325 | 524.42 | 749 | 731 | 138.4 |
| B | 0 | 190 | 36004 | 254.81 | 749 | 731 | 138.4 |
| B | 0 | 230 | 19304 | 134.17 | 749 | 731 | 138.4 |
| C | 10 | 22 | 147466 | 879.05 | 730 | 736 | 166.9 |
| C | 14 | 238 | 117472 | 699.36 | 730 | 736 | 166.9 |
| C | 13 | 61 | 5161 | 26.51 | 730 | 736 | 166.9 |
| D | 1 | 52 | 316929 | 1802.21 | 740 | 721 | 175.5 |
| D | 2 | 234 | 30911 | 172.07 | 740 | 721 | 175.5 |
| D | 2 | 136 | 20108 | 110.5 | 740 | 721 | 175.5 |

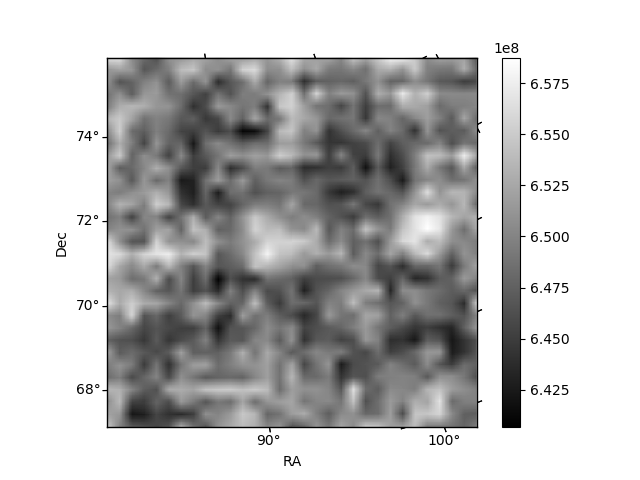

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

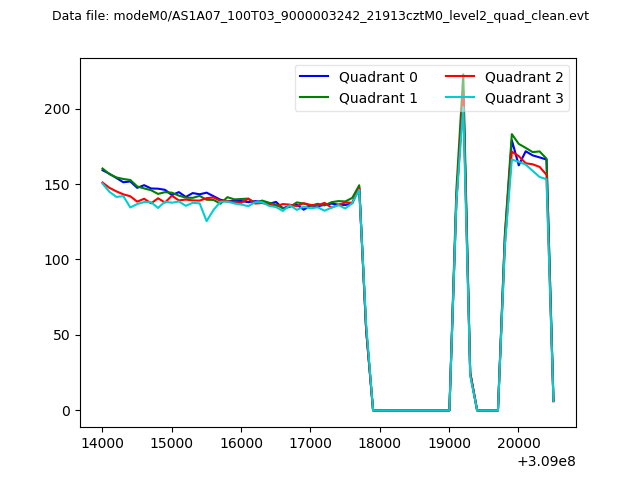

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

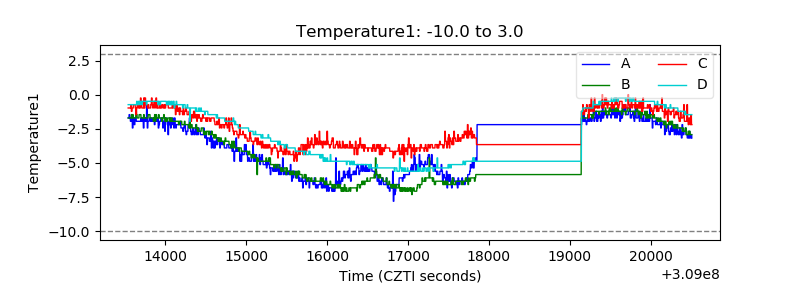

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

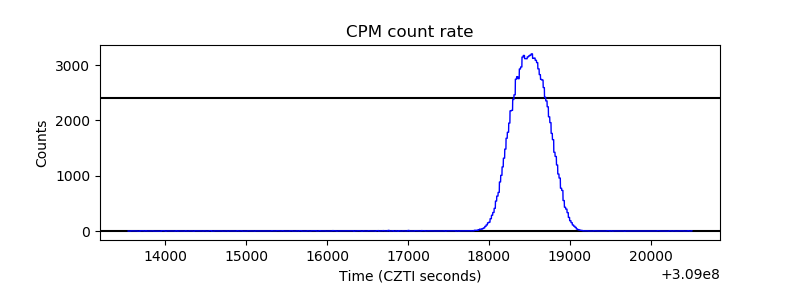

| _CPM_Rate |  |

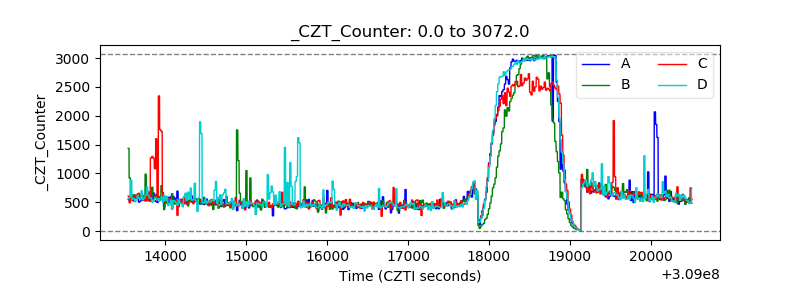

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

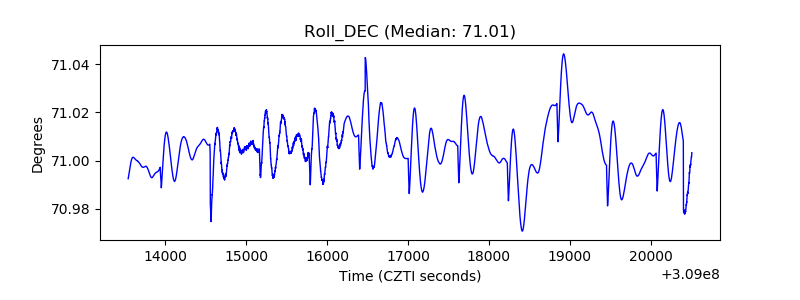

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
