| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_100T03_9000003242_21916cztM0_level2.evt | modeM0/AS1A07_100T03_9000003242_21916cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,603,520 | 135,472,320 |
| Size | 448.8 MB | 129.2 MB |
| Events in quadrant A | 3,167,878 | 920,325 |
| Events in quadrant B | 3,326,256 | 938,161 |
| Events in quadrant C | 3,374,638 | 919,843 |
| Events in quadrant D | 3,952,417 | 882,160 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13563 | 2 |
| B | 0 | 13986 | 2 |
| C | 0 | 14026 | 2 |
| D | 0 | 15986 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6342 | 69 | 1.087985% |
| B | 6342 | 91 | 1.434879% |
| C | 6341 | 147 | 2.318246% |
| D | 6341 | 198 | 3.122536% |

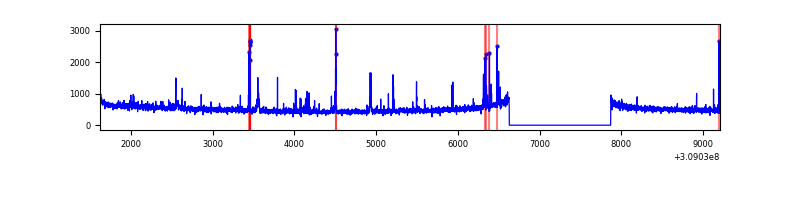

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6342 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7582 | 6342 | 14 | 14 | 0.18% | 0.22% |  |
| C | 7581 | 6341 | 12 | 12 | 0.16% | 0.19% |  |
| D | 7581 | 6342 | 126 | 126 | 1.66% | 1.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 55982 | 342.55 | 806 | 789 | 161.1 |
| A | 13 | 254 | 11634 | 67.31 | 806 | 789 | 161.1 |
| A | 0 | 226 | 7029 | 38.73 | 806 | 789 | 161.1 |
| B | 3 | 64 | 109181 | 726.09 | 807 | 786 | 149.3 |
| B | 12 | 111 | 16999 | 108.6 | 807 | 786 | 149.3 |
| B | 11 | 111 | 14796 | 93.85 | 807 | 786 | 149.3 |
| C | 10 | 22 | 139906 | 763.41 | 793 | 798 | 182.2 |
| C | 14 | 238 | 126661 | 690.72 | 793 | 798 | 182.2 |
| C | 0 | 10 | 17076 | 89.33 | 793 | 798 | 182.2 |
| D | 1 | 52 | 808125 | 4289.4 | 790 | 768 | 188.2 |
| D | 12 | 227 | 66074 | 346.96 | 790 | 768 | 188.2 |
| D | 2 | 136 | 34283 | 178.06 | 790 | 768 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

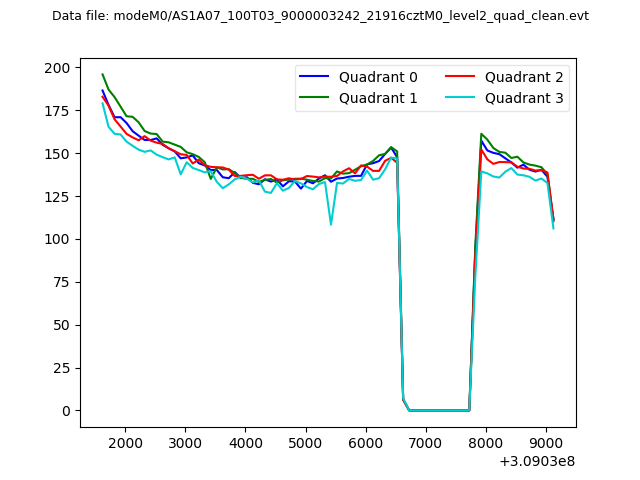

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

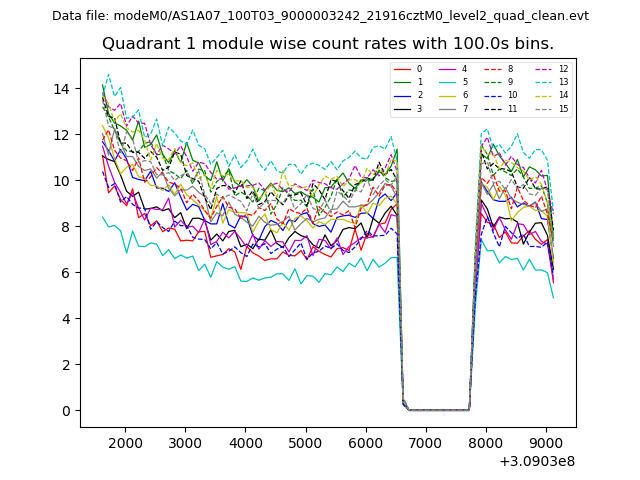

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

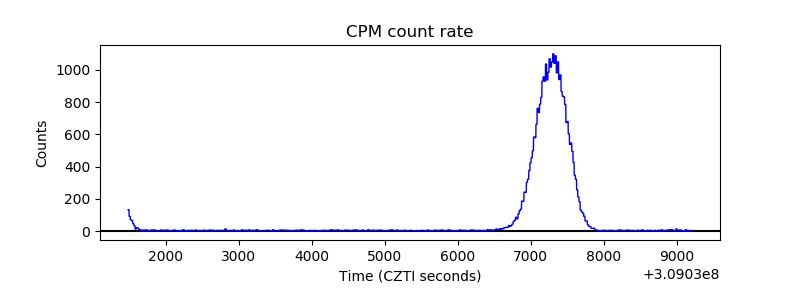

| _CPM_Rate |  |

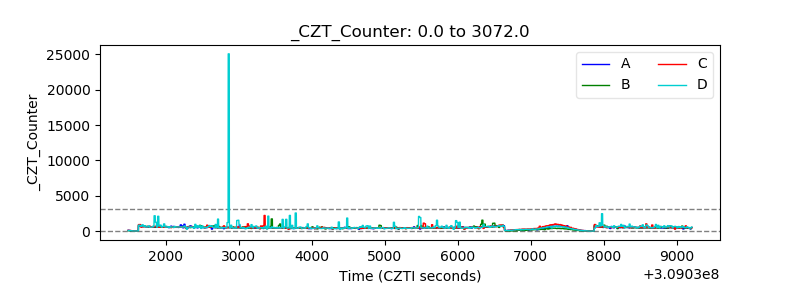

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

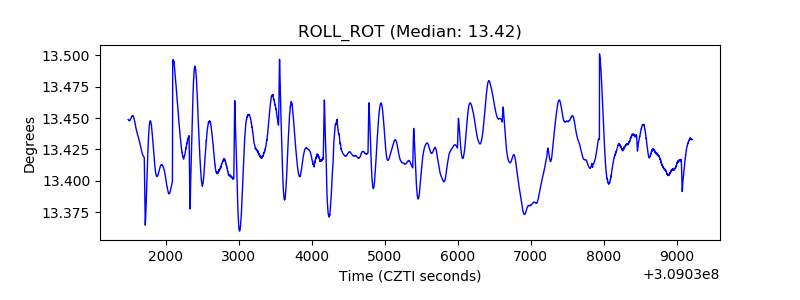

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

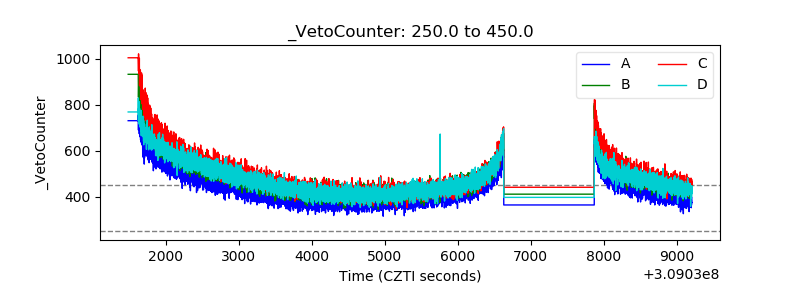

| Veto Counter |  |
