| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_100T03_9000003242_21918cztM0_level2.evt | modeM0/AS1A07_100T03_9000003242_21918cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,813,120 | 129,450,240 |
| Size | 492.9 MB | 123.5 MB |
| Events in quadrant A | 3,571,208 | 855,440 |
| Events in quadrant B | 3,779,327 | 868,711 |
| Events in quadrant C | 3,647,736 | 854,638 |
| Events in quadrant D | 4,152,656 | 828,693 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15647 | 2 |
| B | 0 | 16194 | 2 |
| C | 0 | 15745 | 2 |
| D | 0 | 17654 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7380 | 54 | 0.731707% |
| B | 7381 | 94 | 1.273540% |
| C | 7381 | 144 | 1.950955% |
| D | 7380 | 146 | 1.978320% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8750 | 7382 | 20 | 20 | 0.23% | 0.27% |  |
| B | 8751 | 7382 | 33 | 33 | 0.38% | 0.45% |  |
| C | 8751 | 7383 | 26 | 26 | 0.30% | 0.35% |  |
| D | 8750 | 7382 | 79 | 79 | 0.90% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 160356 | 899.34 | 881 | 863 | 177.3 |
| A | 13 | 254 | 13122 | 69.13 | 881 | 863 | 177.3 |
| A | 5 | 16 | 11503 | 60.0 | 881 | 863 | 177.3 |
| B | 3 | 64 | 187387 | 1106.47 | 884 | 861 | 168.6 |
| B | 4 | 171 | 44335 | 257.89 | 884 | 861 | 168.6 |
| B | 0 | 219 | 23707 | 135.52 | 884 | 861 | 168.6 |
| C | 10 | 22 | 157972 | 786.49 | 860 | 867 | 199.8 |
| C | 14 | 238 | 134421 | 668.59 | 860 | 867 | 199.8 |
| C | 13 | 61 | 5963 | 25.51 | 860 | 867 | 199.8 |
| D | 1 | 52 | 652680 | 3147.88 | 862 | 837 | 207.1 |
| D | 2 | 136 | 94054 | 450.16 | 862 | 837 | 207.1 |
| D | 7 | 238 | 40089 | 189.55 | 862 | 837 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

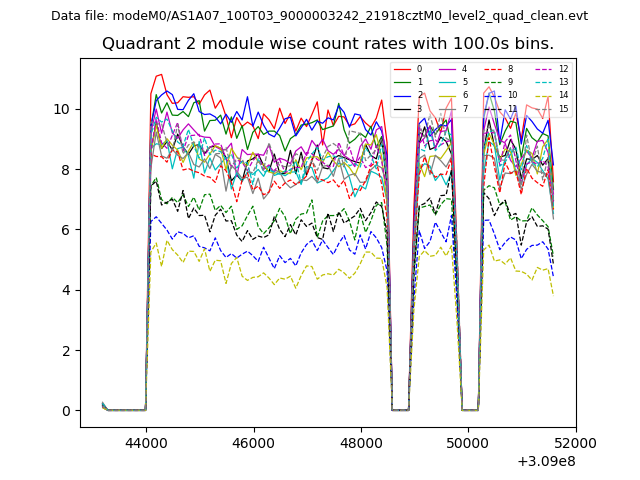

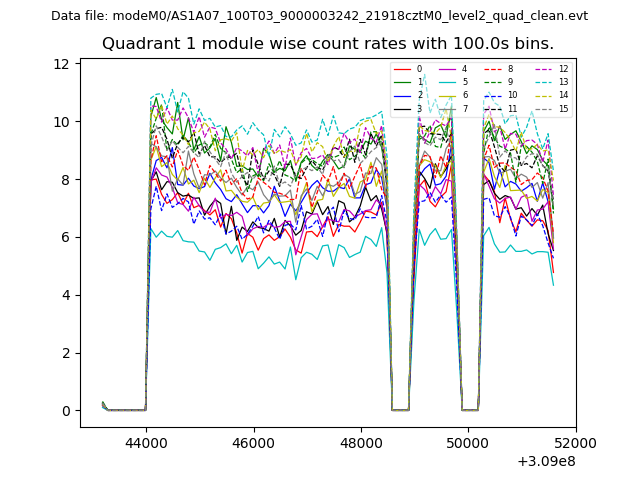

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

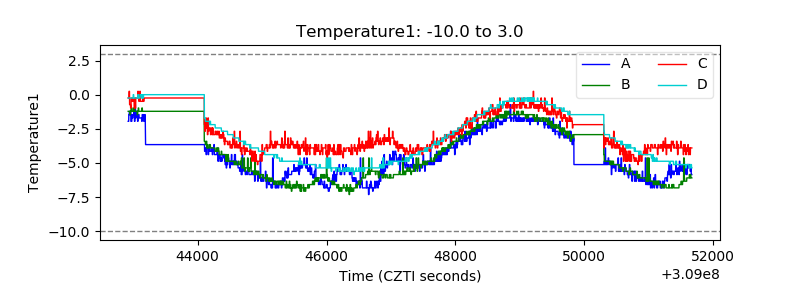

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

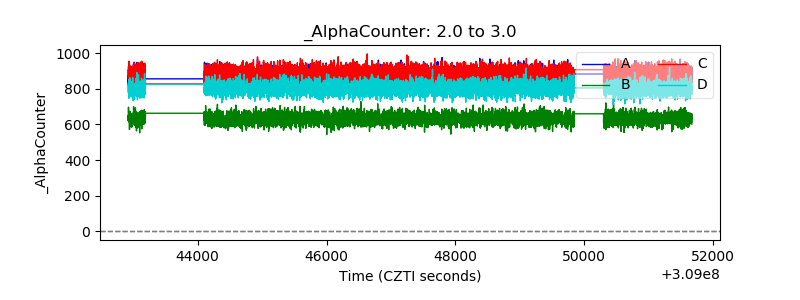

| Alpha Counter |  |

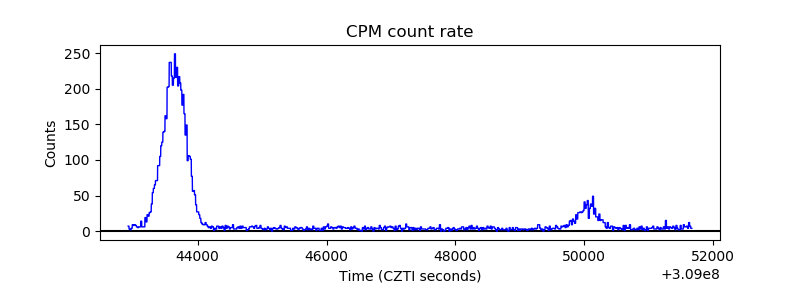

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

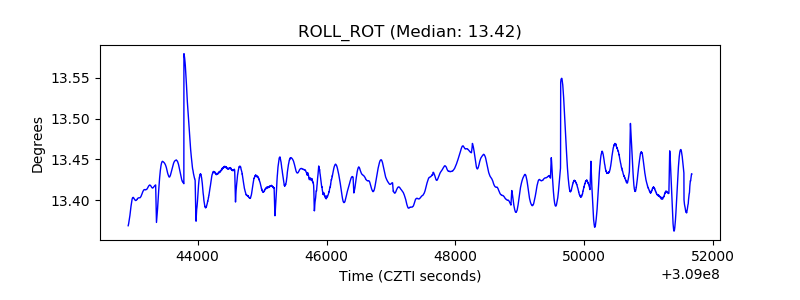

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
