| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_100T03_9000003242_21919cztM0_level2.evt | modeM0/AS1A07_100T03_9000003242_21919cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,376,000 | 153,230,400 |
| Size | 568.7 MB | 146.1 MB |
| Events in quadrant A | 4,011,084 | 1,024,003 |
| Events in quadrant B | 4,443,412 | 1,034,071 |
| Events in quadrant C | 4,184,536 | 1,014,001 |
| Events in quadrant D | 4,848,940 | 982,158 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17712 | 2 |
| B | 0 | 18880 | 3 |
| C | 0 | 18110 | 2 |
| D | 0 | 20386 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8461 | 58 | 0.685498% |
| B | 8460 | 203 | 2.399527% |
| C | 8460 | 219 | 2.588652% |
| D | 8461 | 220 | 2.600165% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9041 | 8462 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9040 | 8461 | 44 | 44 | 0.49% | 0.52% |  |
| C | 9040 | 8462 | 26 | 26 | 0.29% | 0.31% |  |
| D | 9041 | 8463 | 133 | 133 | 1.47% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 61217 | 291.92 | 1023 | 998 | 206.3 |
| A | 13 | 254 | 14248 | 64.23 | 1023 | 998 | 206.3 |
| A | 0 | 226 | 8796 | 37.8 | 1023 | 998 | 206.3 |
| B | 3 | 64 | 230865 | 1171.81 | 1025 | 994 | 196.2 |
| B | 0 | 228 | 49198 | 245.73 | 1025 | 994 | 196.2 |
| B | 0 | 197 | 42906 | 213.65 | 1025 | 994 | 196.2 |
| C | 14 | 238 | 155243 | 665.7 | 995 | 1002 | 231.7 |
| C | 10 | 22 | 143993 | 617.15 | 995 | 1002 | 231.7 |
| C | 13 | 61 | 6885 | 25.39 | 995 | 1002 | 231.7 |
| D | 1 | 52 | 827613 | 3441.75 | 996 | 965 | 240.2 |
| D | 2 | 136 | 63159 | 258.94 | 996 | 965 | 240.2 |
| D | 7 | 238 | 58478 | 239.46 | 996 | 965 | 240.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

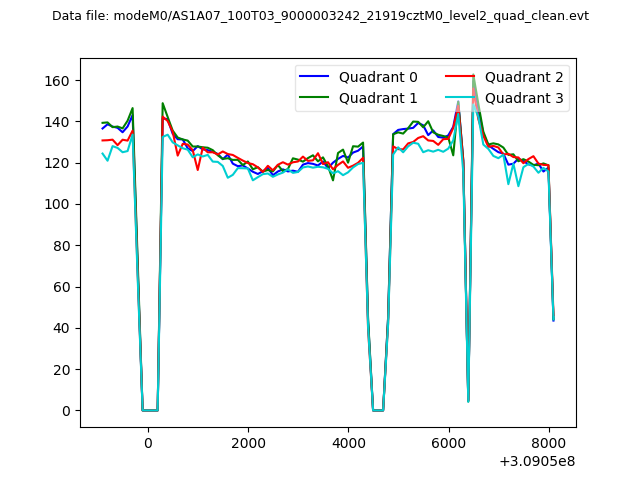

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

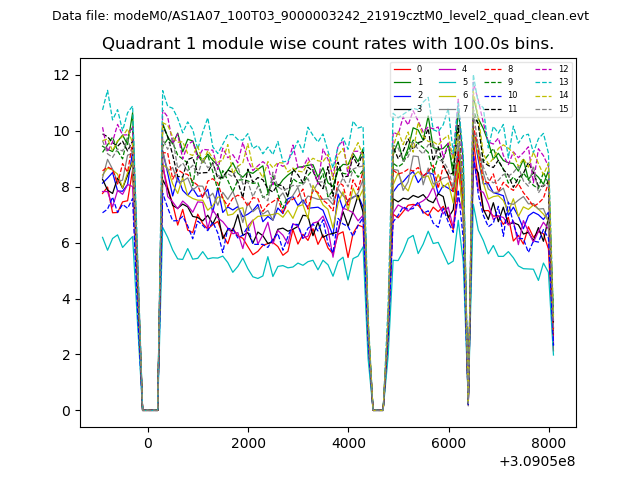

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

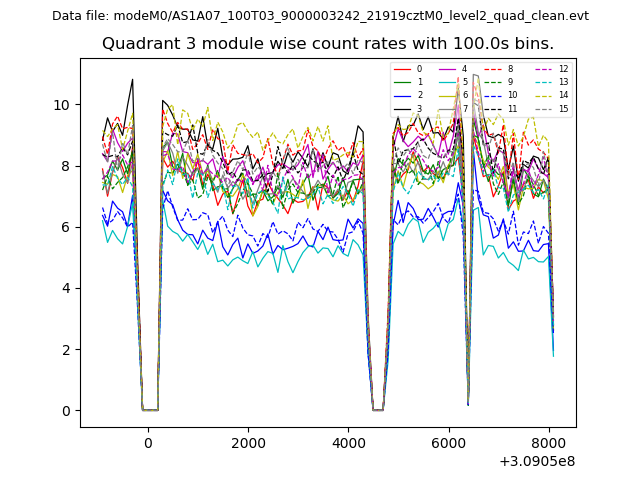

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

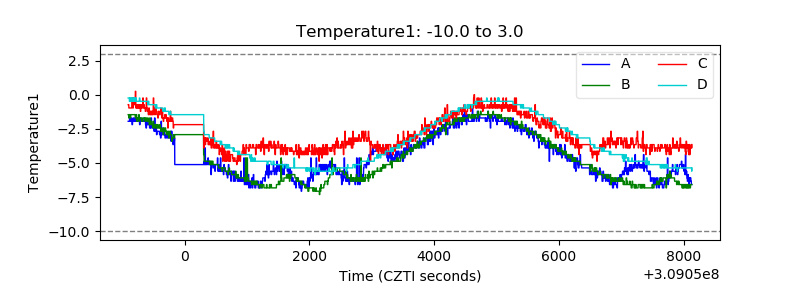

| Temperature 1 |  |

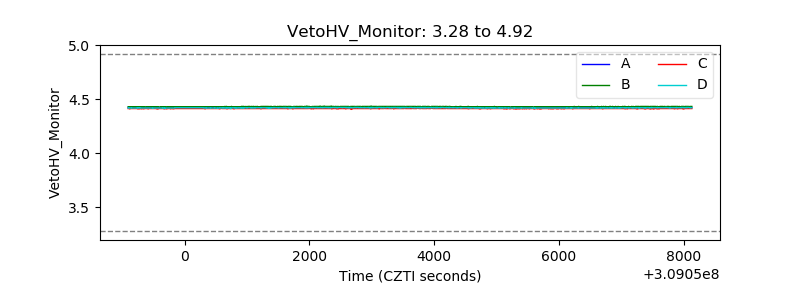

| Veto HV Monitor |  |
| Veto LLD |  |

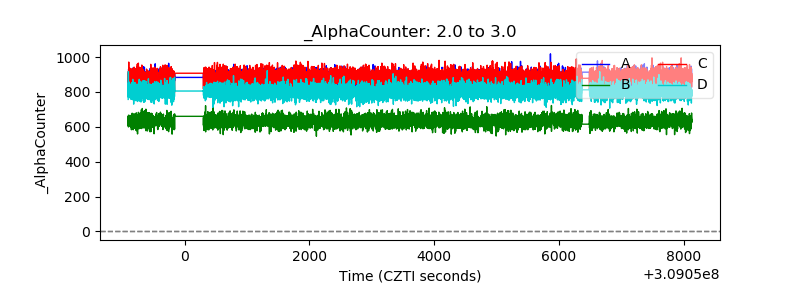

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

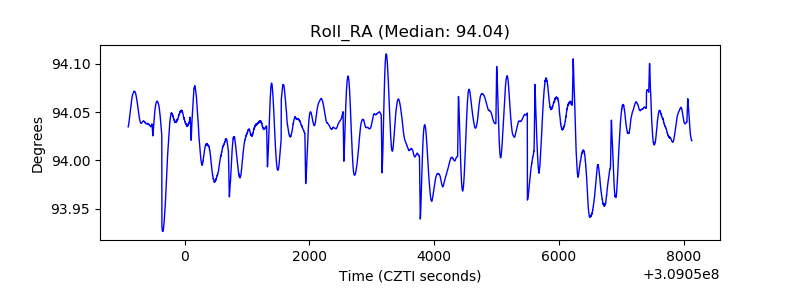

| _Roll_RA |  |

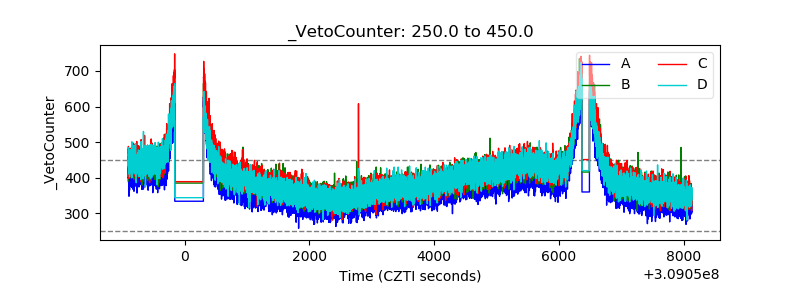

| Veto Counter |  |
