| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_100T03_9000003242_21930cztM0_level2.evt | modeM0/AS1A07_100T03_9000003242_21930cztM0_level2_quad_clean.evt |
| Size (bytes) | 569,502,720 | 136,730,880 |
| Size | 543.1 MB | 130.4 MB |
| Events in quadrant A | 5,802,483 | 903,417 |
| Events in quadrant B | 3,346,190 | 963,866 |
| Events in quadrant C | 3,306,096 | 946,246 |
| Events in quadrant D | 4,369,890 | 891,836 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21718 | 1 |
| B | 0 | 13892 | 2 |
| C | 0 | 13741 | 1 |
| D | 0 | 17286 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6248 | 627 | 10.035211% |
| B | 6247 | 108 | 1.728830% |
| C | 6247 | 147 | 2.353130% |
| D | 6247 | 356 | 5.698735% |

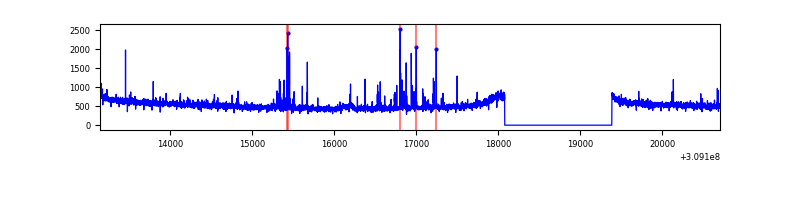

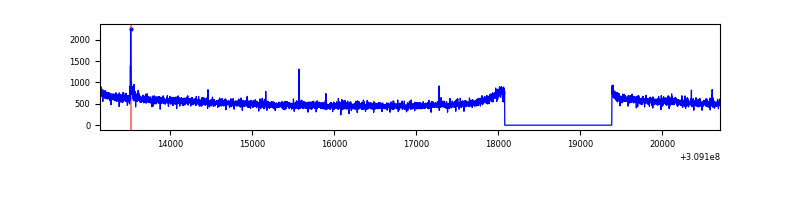

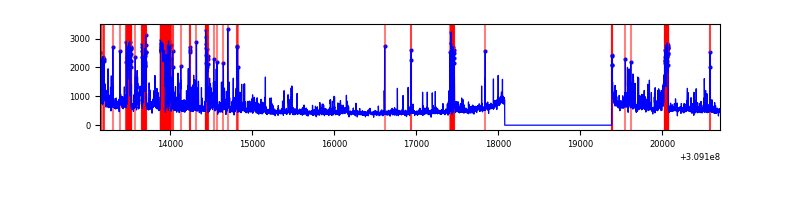

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6248 | 271 | 271 | 3.59% | 4.34% |  |
| B | 7552 | 6247 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7552 | 6247 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7552 | 6247 | 240 | 240 | 3.18% | 3.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 2644714 | 16693.59 | 794 | 779 | 158.4 |
| A | 5 | 16 | 76273 | 476.66 | 794 | 779 | 158.4 |
| A | 4 | 2 | 13627 | 81.12 | 794 | 779 | 158.4 |
| B | 3 | 64 | 73665 | 480.36 | 822 | 801 | 151.7 |
| B | 6 | 36 | 24912 | 158.95 | 822 | 801 | 151.7 |
| B | 12 | 111 | 16793 | 105.43 | 822 | 801 | 151.7 |
| C | 14 | 238 | 128157 | 691.48 | 808 | 815 | 184.2 |
| C | 10 | 22 | 23705 | 124.3 | 808 | 815 | 184.2 |
| C | 13 | 61 | 5577 | 25.86 | 808 | 815 | 184.2 |
| D | 1 | 52 | 729455 | 3886.76 | 796 | 774 | 187.5 |
| D | 12 | 235 | 391395 | 2083.56 | 796 | 774 | 187.5 |
| D | 11 | 176 | 117484 | 622.53 | 796 | 774 | 187.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

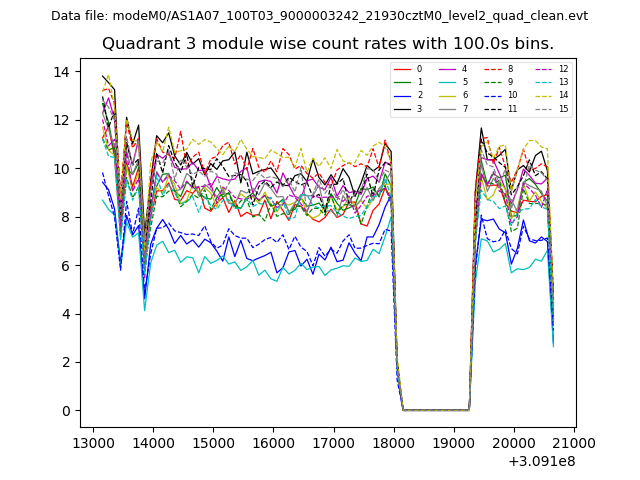

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

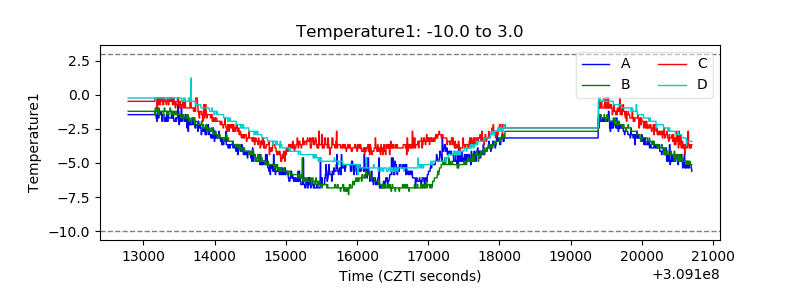

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

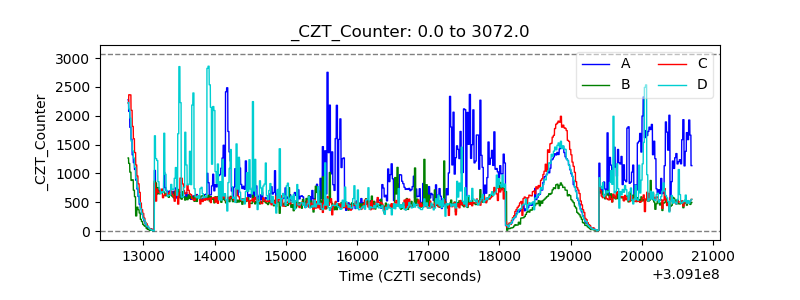

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

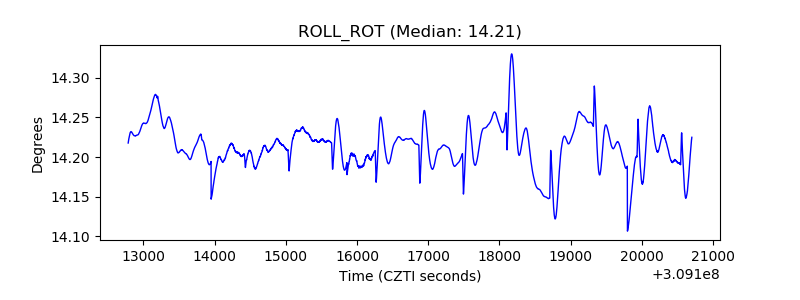

| _ROLL_ROT |  |

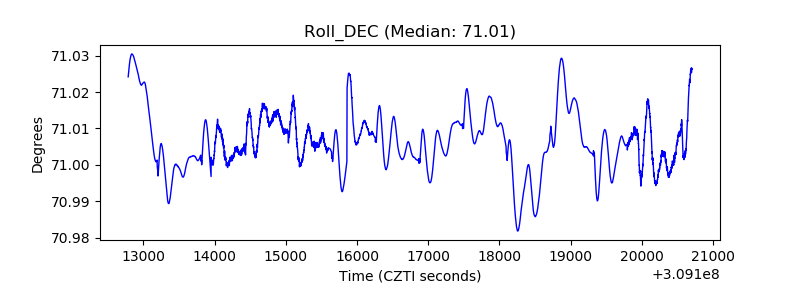

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
