| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T02_9000003244_21943cztM0_level2.evt | modeM0/AS1A07_007T02_9000003244_21943cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,029,760 | 117,311,040 |
| Size | 475.0 MB | 111.9 MB |
| Events in quadrant A | 3,539,710 | 793,079 |
| Events in quadrant B | 3,752,161 | 797,032 |
| Events in quadrant C | 3,593,439 | 769,729 |
| Events in quadrant D | 3,766,104 | 749,754 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14724 | 3 |
| B | 0 | 15346 | 2 |
| C | 0 | 14816 | 2 |
| D | 0 | 15391 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6361 | 131 | 2.059425% |
| B | 6361 | 193 | 3.034114% |
| C | 6361 | 182 | 2.861185% |
| D | 6361 | 124 | 1.949379% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7656 | 6361 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7656 | 6361 | 36 | 36 | 0.47% | 0.57% |  |
| C | 7656 | 6361 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7656 | 6361 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9634 | 48.72 | 919 | 904 | 179.2 |
| A | 0 | 226 | 8163 | 40.51 | 919 | 904 | 179.2 |
| A | 3 | 137 | 7105 | 34.6 | 919 | 904 | 179.2 |
| B | 3 | 64 | 159369 | 953.73 | 897 | 879 | 166.2 |
| B | 0 | 197 | 40232 | 236.81 | 897 | 879 | 166.2 |
| B | 0 | 230 | 27813 | 162.08 | 897 | 879 | 166.2 |
| C | 14 | 238 | 141337 | 692.77 | 884 | 893 | 202.7 |
| C | 13 | 61 | 5981 | 25.1 | 884 | 893 | 202.7 |
| C | 0 | 10 | 4886 | 19.7 | 884 | 893 | 202.7 |
| D | 1 | 52 | 198864 | 918.82 | 901 | 880 | 215.5 |
| D | 1 | 255 | 68124 | 312.07 | 901 | 880 | 215.5 |
| D | 11 | 176 | 56434 | 257.82 | 901 | 880 | 215.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

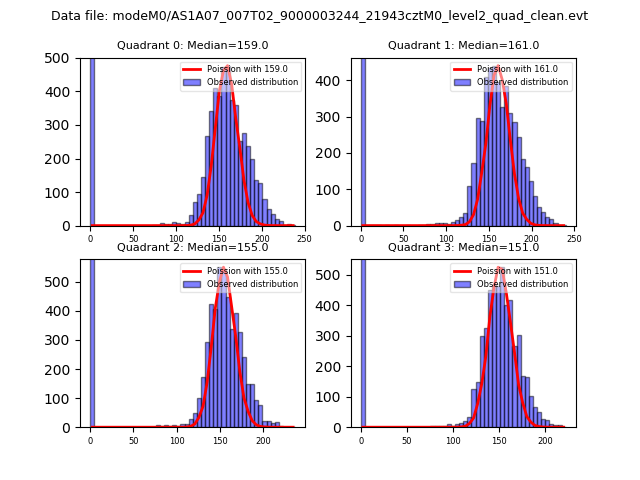

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

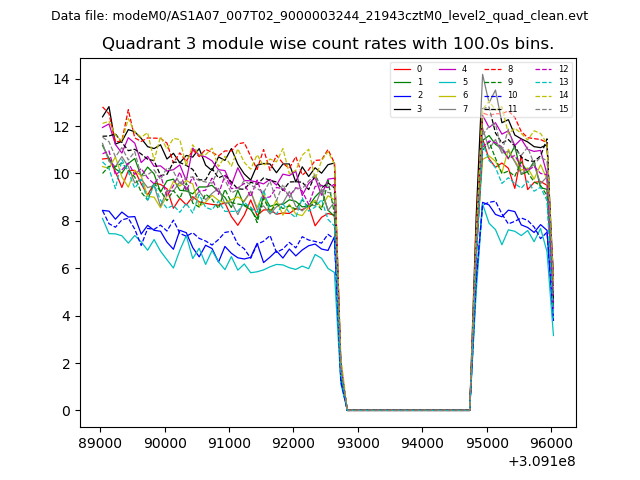

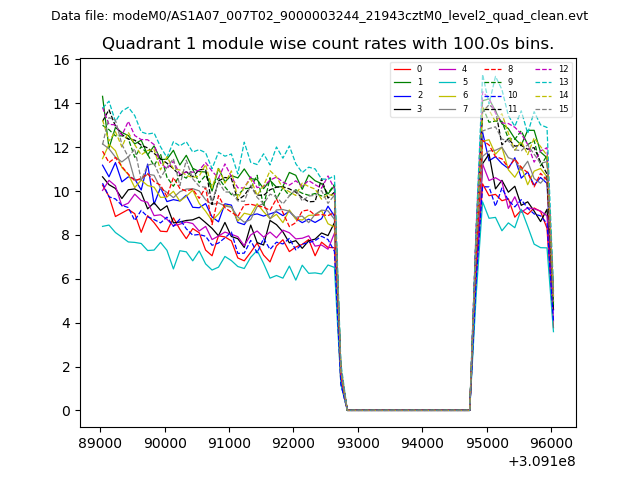

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
