| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T02_9000003244_21948cztM0_level2.evt | modeM0/AS1A07_007T02_9000003244_21948cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,384,960 | 115,392,960 |
| Size | 495.3 MB | 110.0 MB |
| Events in quadrant A | 3,693,015 | 743,353 |
| Events in quadrant B | 3,922,819 | 754,503 |
| Events in quadrant C | 3,812,301 | 734,795 |
| Events in quadrant D | 3,770,263 | 718,325 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16309 | 2 |
| B | 0 | 16898 | 2 |
| C | 0 | 16439 | 2 |
| D | 0 | 16747 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7830 | 46 | 0.587484% |
| B | 7831 | 107 | 1.366364% |
| C | 7831 | 119 | 1.519602% |
| D | 7831 | 44 | 0.561869% |

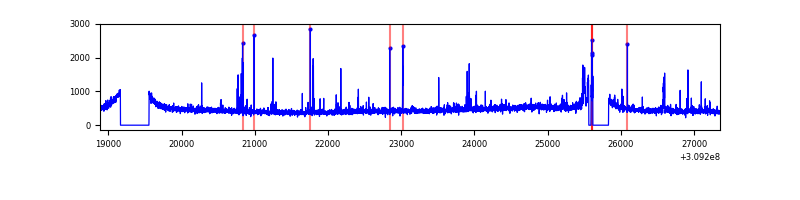

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8465 | 7832 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8466 | 7833 | 15 | 15 | 0.18% | 0.19% |  |
| C | 8466 | 7834 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8466 | 7834 | 9 | 9 | 0.11% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12586 | 60.22 | 957 | 936 | 193.5 |
| A | 3 | 137 | 8494 | 39.07 | 957 | 936 | 193.5 |
| A | 0 | 226 | 7902 | 36.01 | 957 | 936 | 193.5 |
| B | 3 | 64 | 89889 | 484.67 | 954 | 926 | 183.6 |
| B | 0 | 230 | 54342 | 291.01 | 954 | 926 | 183.6 |
| B | 12 | 111 | 22828 | 119.32 | 954 | 926 | 183.6 |
| C | 14 | 238 | 145072 | 655.22 | 934 | 941 | 220.0 |
| C | 8 | 128 | 14525 | 61.75 | 934 | 941 | 220.0 |
| C | 8 | 112 | 6705 | 26.2 | 934 | 941 | 220.0 |
| D | 1 | 52 | 112812 | 487.98 | 941 | 914 | 229.3 |
| D | 11 | 176 | 50894 | 217.96 | 941 | 914 | 229.3 |
| D | 2 | 136 | 32360 | 137.13 | 941 | 914 | 229.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

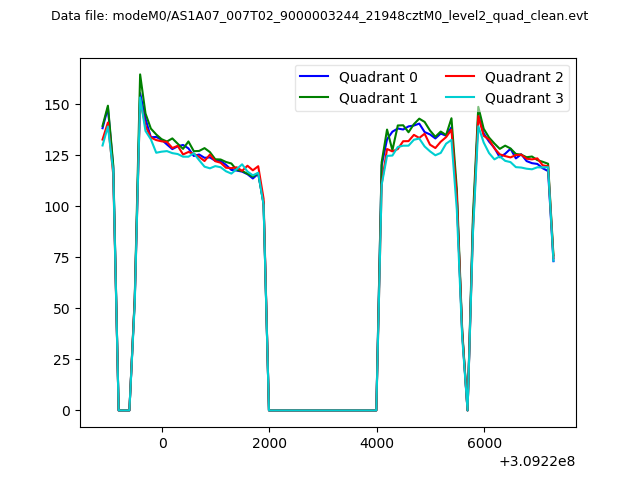

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

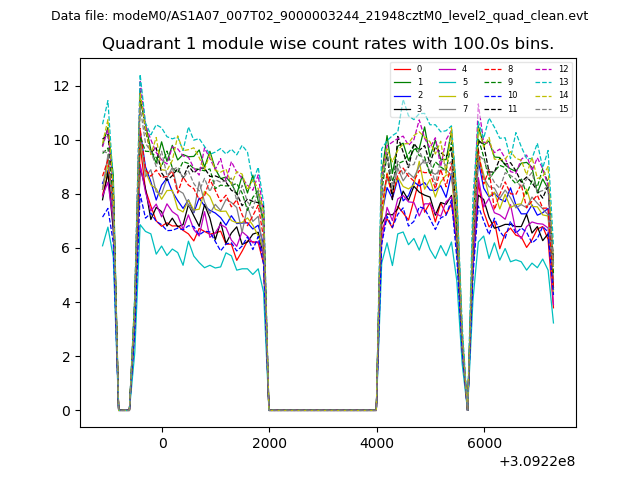

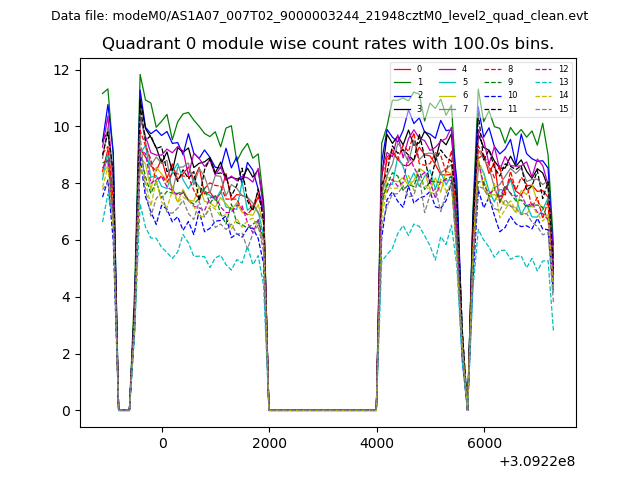

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

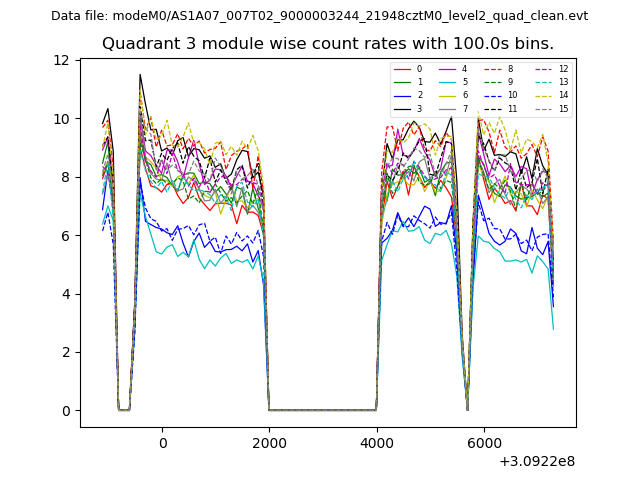

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

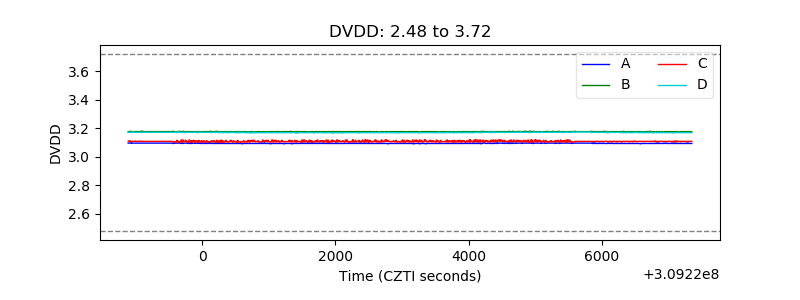

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

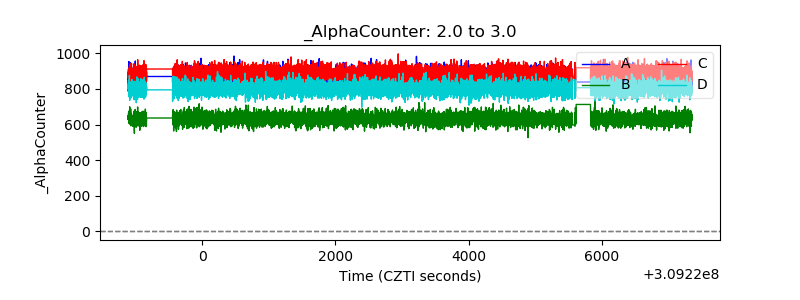

| Alpha Counter |  |

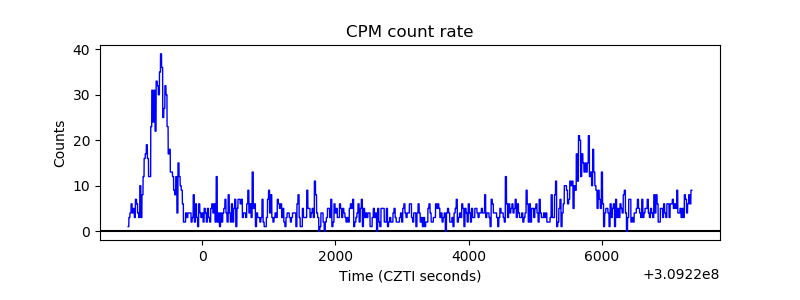

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
