| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T02_9000003244_21957cztM0_level2.evt | modeM0/AS1A07_007T02_9000003244_21957cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,327,360 | 110,206,080 |
| Size | 495.3 MB | 105.1 MB |
| Events in quadrant A | 3,919,311 | 735,733 |
| Events in quadrant B | 4,246,520 | 740,967 |
| Events in quadrant C | 3,607,330 | 713,032 |
| Events in quadrant D | 3,519,885 | 700,689 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15999 | 2 |
| B | 0 | 16833 | 2 |
| C | 0 | 14786 | 2 |
| D | 0 | 14562 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6419 | 106 | 1.651348% |
| B | 6420 | 364 | 5.669782% |
| C | 6420 | 127 | 1.978193% |
| D | 6420 | 71 | 1.105919% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

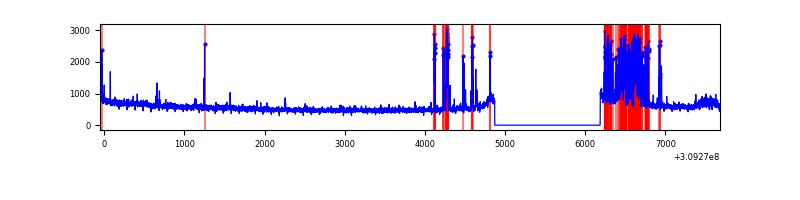

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6419 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7736 | 6420 | 181 | 181 | 2.34% | 2.82% |  |
| C | 7736 | 6420 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7736 | 6420 | 6 | 6 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 346010 | 1899.46 | 928 | 914 | 181.7 |
| A | 13 | 254 | 11202 | 56.63 | 928 | 914 | 181.7 |
| A | 0 | 226 | 7955 | 38.75 | 928 | 914 | 181.7 |
| B | 3 | 64 | 667061 | 4057.22 | 894 | 877 | 164.2 |
| B | 0 | 197 | 49109 | 293.74 | 894 | 877 | 164.2 |
| B | 0 | 229 | 19413 | 112.89 | 894 | 877 | 164.2 |
| C | 14 | 238 | 140265 | 684.3 | 886 | 895 | 203.7 |
| C | 10 | 22 | 14022 | 64.45 | 886 | 895 | 203.7 |
| C | 13 | 61 | 6134 | 25.72 | 886 | 895 | 203.7 |
| D | 1 | 52 | 50666 | 232.98 | 904 | 885 | 213.7 |
| D | 2 | 234 | 22507 | 101.19 | 904 | 885 | 213.7 |
| D | 2 | 136 | 18575 | 82.79 | 904 | 885 | 213.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

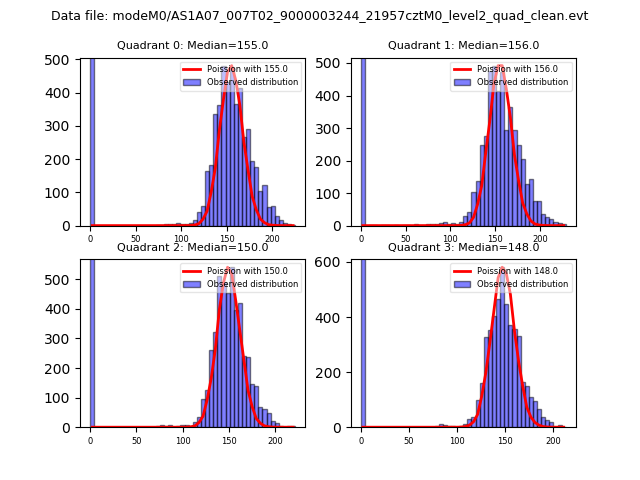

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

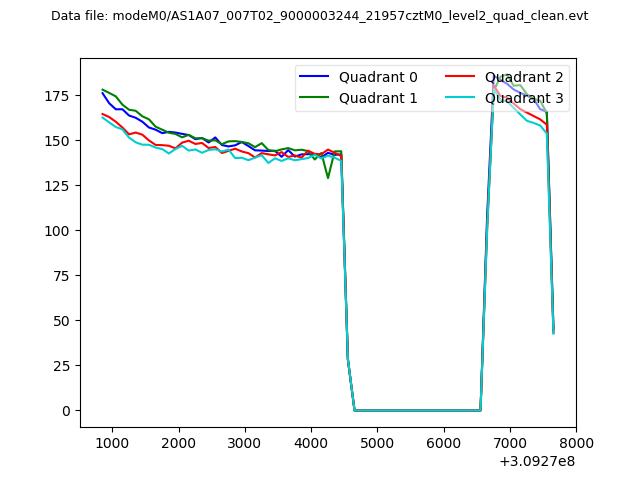

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

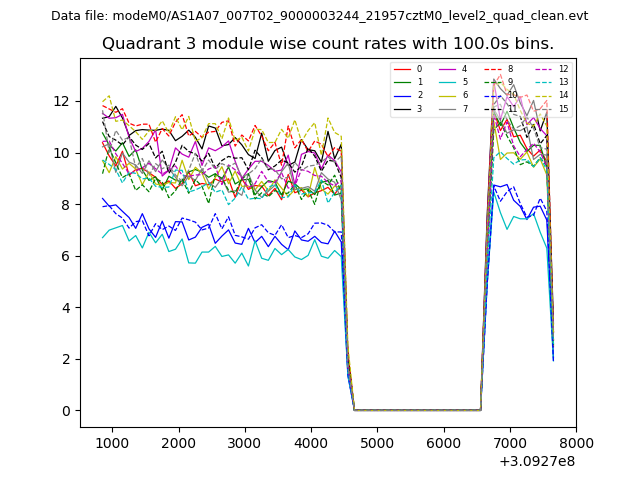

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

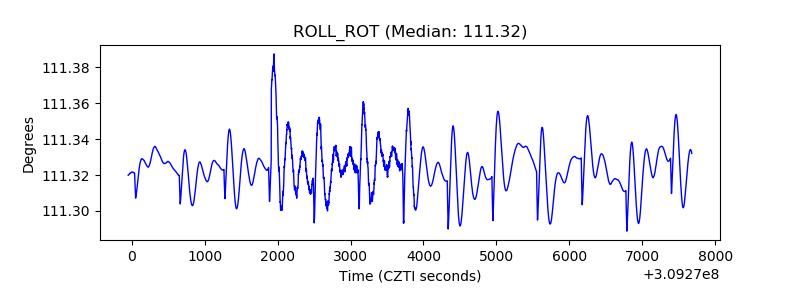

| _ROLL_ROT |  |

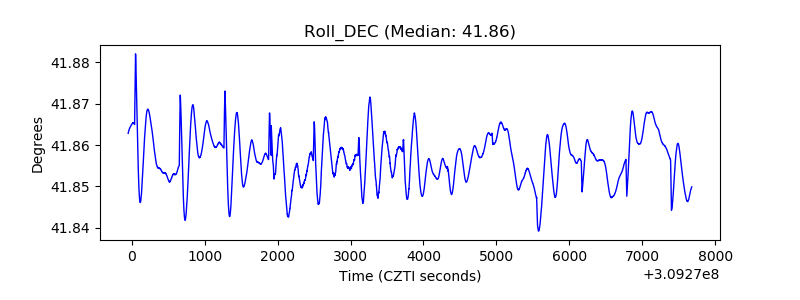

| _Roll_DEC |  |

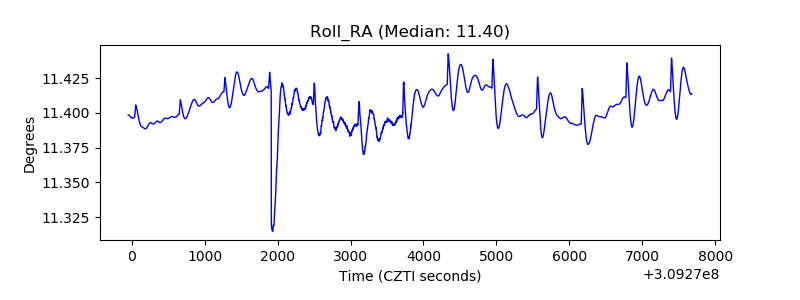

| _Roll_RA |  |

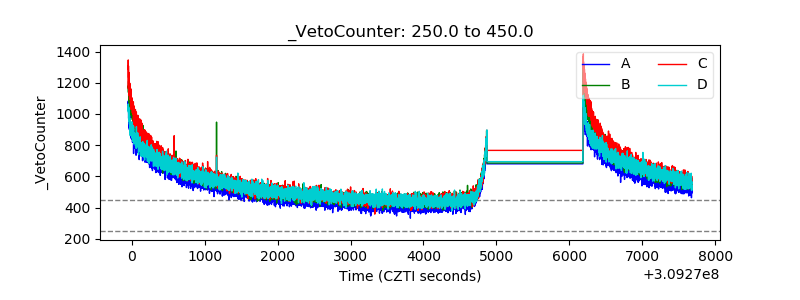

| Veto Counter |  |
