| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T02_9000003244_21958cztM0_level2.evt | modeM0/AS1A07_007T02_9000003244_21958cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,039,040 | 121,256,640 |
| Size | 482.6 MB | 115.6 MB |
| Events in quadrant A | 3,644,757 | 819,352 |
| Events in quadrant B | 4,123,544 | 826,385 |
| Events in quadrant C | 3,627,544 | 799,093 |
| Events in quadrant D | 3,497,295 | 783,276 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15078 | 2 |
| B | 0 | 16504 | 2 |
| C | 0 | 14849 | 2 |
| D | 0 | 14360 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6376 | 123 | 1.929109% |
| B | 6376 | 346 | 5.426600% |
| C | 6376 | 178 | 2.791719% |
| D | 6376 | 98 | 1.537014% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7721 | 6376 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7721 | 6376 | 152 | 152 | 1.97% | 2.38% |  |
| C | 7721 | 6376 | 12 | 12 | 0.16% | 0.19% |  |
| D | 7721 | 6376 | 8 | 8 | 0.10% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 135069 | 748.57 | 910 | 894 | 179.2 |
| A | 13 | 254 | 11288 | 57.99 | 910 | 894 | 179.2 |
| A | 0 | 226 | 7882 | 38.99 | 910 | 894 | 179.2 |
| B | 3 | 64 | 551089 | 3392.11 | 881 | 861 | 162.2 |
| B | 0 | 197 | 110726 | 677.31 | 881 | 861 | 162.2 |
| B | 12 | 111 | 18525 | 108.89 | 881 | 861 | 162.2 |
| C | 14 | 238 | 139327 | 683.52 | 880 | 888 | 202.5 |
| C | 10 | 22 | 59667 | 290.21 | 880 | 888 | 202.5 |
| C | 13 | 61 | 5937 | 24.93 | 880 | 888 | 202.5 |
| D | 13 | 174 | 53149 | 242.92 | 897 | 875 | 215.2 |
| D | 13 | 104 | 31481 | 142.23 | 897 | 875 | 215.2 |
| D | 2 | 234 | 23594 | 105.58 | 897 | 875 | 215.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

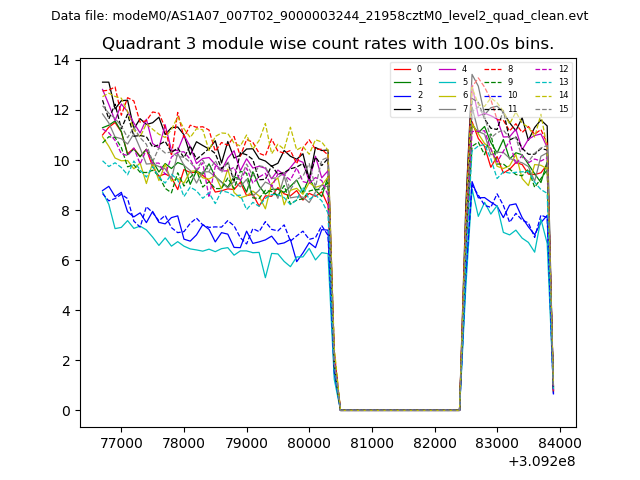

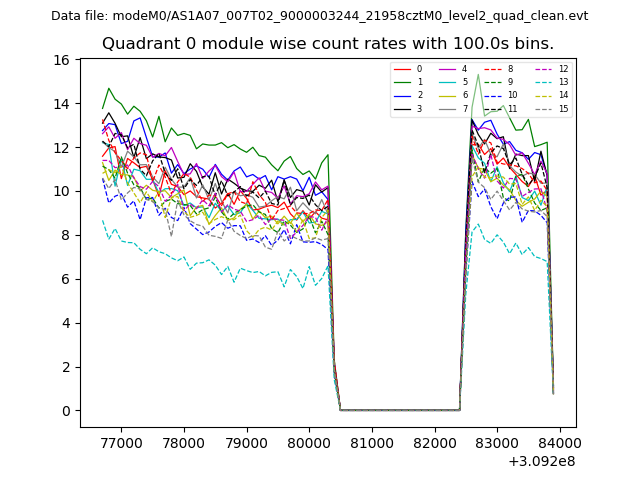

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
