| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T02_9000003244_21959cztM0_level2.evt | modeM0/AS1A07_007T02_9000003244_21959cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,051,200 | 114,304,320 |
| Size | 498.8 MB | 109.0 MB |
| Events in quadrant A | 3,491,618 | 775,376 |
| Events in quadrant B | 3,531,702 | 786,913 |
| Events in quadrant C | 3,431,331 | 763,650 |
| Events in quadrant D | 4,956,436 | 694,286 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14412 | 2 |
| B | 0 | 14662 | 2 |
| C | 0 | 14126 | 2 |
| D | 0 | 18888 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6327 | 180 | 2.844950% |
| B | 6328 | 196 | 3.097345% |
| C | 6328 | 230 | 3.634640% |
| D | 6328 | 708 | 11.188369% |

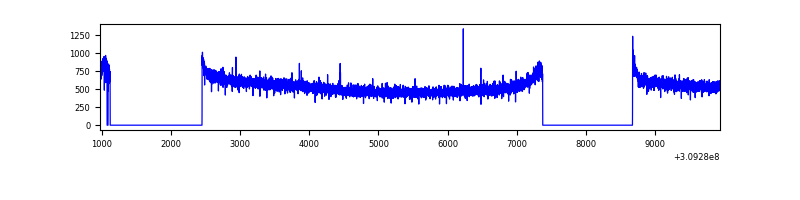

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8972 | 6327 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8973 | 6328 | 6 | 6 | 0.07% | 0.09% |  |
| C | 8973 | 6328 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8973 | 6328 | 592 | 592 | 6.60% | 9.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 140371 | 808.25 | 869 | 854 | 172.6 |
| A | 13 | 254 | 10760 | 57.39 | 869 | 854 | 172.6 |
| A | 0 | 226 | 7374 | 37.77 | 869 | 854 | 172.6 |
| B | 0 | 197 | 85422 | 534.26 | 856 | 836 | 158.3 |
| B | 3 | 64 | 75418 | 471.07 | 856 | 836 | 158.3 |
| B | 12 | 111 | 18749 | 113.14 | 856 | 836 | 158.3 |
| C | 14 | 238 | 132552 | 675.3 | 845 | 852 | 195.0 |
| C | 13 | 61 | 5898 | 25.87 | 845 | 852 | 195.0 |
| C | 0 | 10 | 3012 | 11.08 | 845 | 852 | 195.0 |
| D | 13 | 174 | 1663863 | 8375.37 | 823 | 801 | 198.6 |
| D | 1 | 52 | 179600 | 900.45 | 823 | 801 | 198.6 |
| D | 2 | 234 | 22836 | 110.97 | 823 | 801 | 198.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

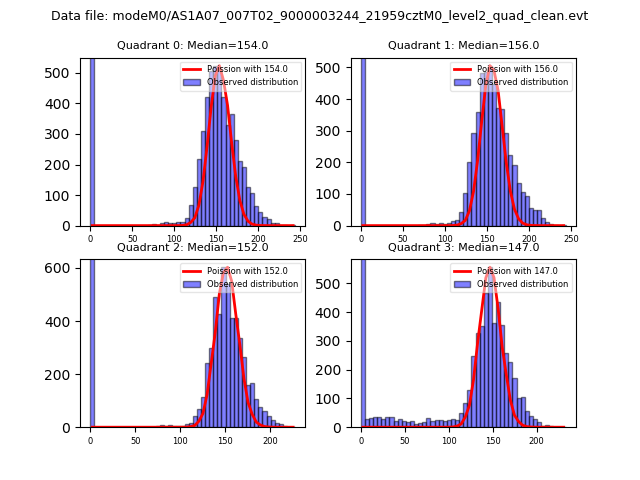

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

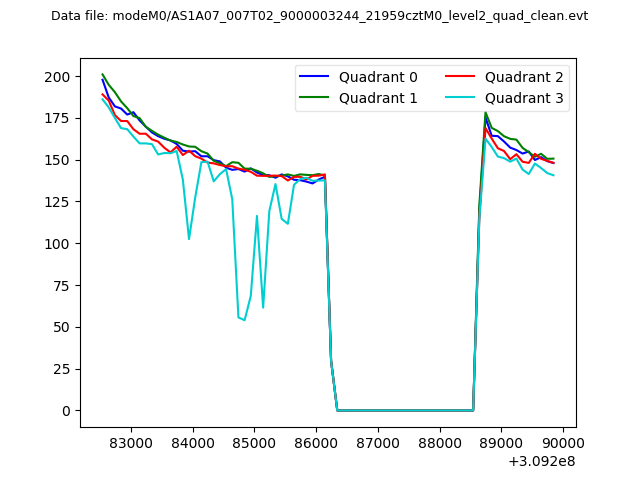

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

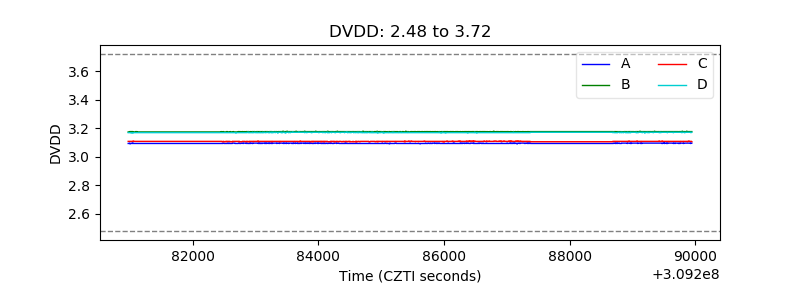

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

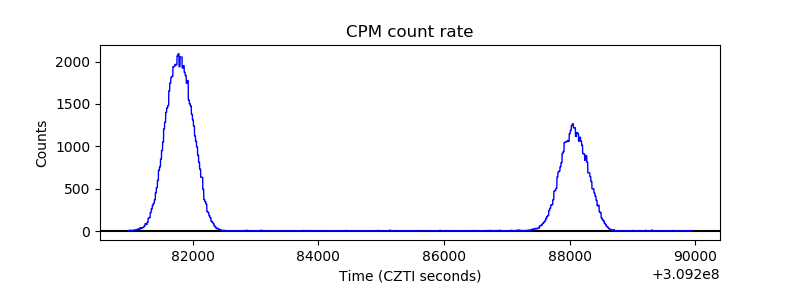

| _CPM_Rate |  |

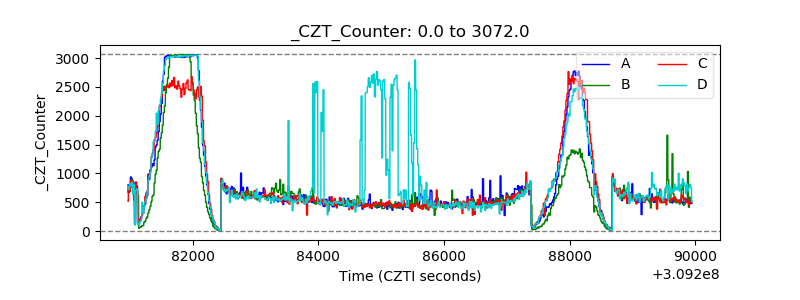

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

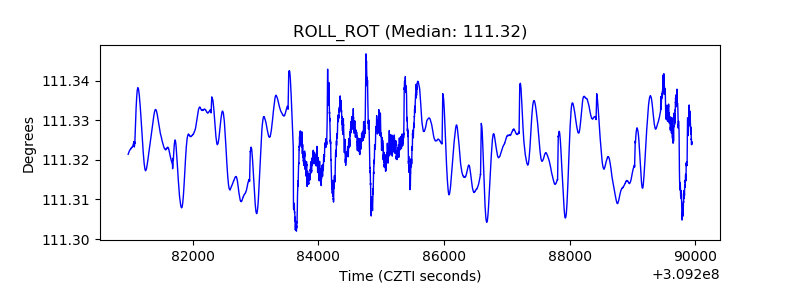

| _ROLL_ROT |  |

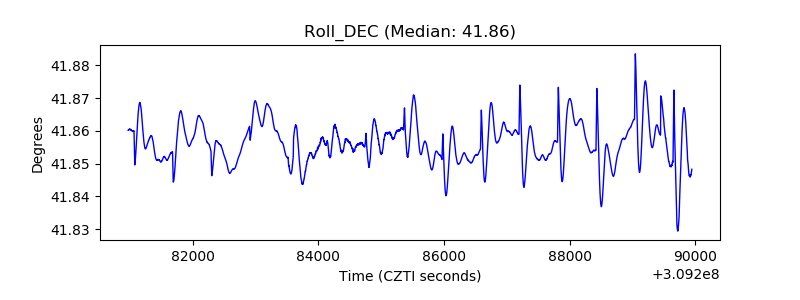

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
