| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_130T01_9000003246_21962cztM0_level2.evt | modeM0/AS1A07_130T01_9000003246_21962cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,425,600 | 110,943,360 |
| Size | 516.3 MB | 105.8 MB |
| Events in quadrant A | 3,638,290 | 715,727 |
| Events in quadrant B | 3,948,223 | 730,688 |
| Events in quadrant C | 3,732,477 | 706,548 |
| Events in quadrant D | 4,562,107 | 678,142 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15934 | 2 |
| B | 0 | 16749 | 2 |
| C | 0 | 16031 | 3 |
| D | 0 | 18816 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7599 | 89 | 1.171207% |
| B | 7599 | 187 | 2.460850% |
| C | 7598 | 143 | 1.882074% |
| D | 7598 | 354 | 4.659121% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8544 | 7600 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8544 | 7600 | 77 | 77 | 0.90% | 1.01% |  |
| C | 8543 | 7599 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8543 | 7599 | 160 | 160 | 1.87% | 2.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13179 | 64.52 | 940 | 919 | 190.0 |
| A | 2 | 79 | 9116 | 43.14 | 940 | 919 | 190.0 |
| A | 3 | 137 | 8328 | 38.99 | 940 | 919 | 190.0 |
| B | 3 | 64 | 235287 | 1306.12 | 932 | 908 | 179.4 |
| B | 0 | 230 | 25742 | 138.39 | 932 | 908 | 179.4 |
| B | 0 | 197 | 24083 | 129.15 | 932 | 908 | 179.4 |
| C | 14 | 238 | 142104 | 652.88 | 914 | 918 | 216.3 |
| C | 10 | 22 | 22122 | 98.05 | 914 | 918 | 216.3 |
| C | 13 | 61 | 6191 | 24.38 | 914 | 918 | 216.3 |
| D | 13 | 174 | 744737 | 3372.2 | 913 | 890 | 220.6 |
| D | 11 | 176 | 159028 | 716.91 | 913 | 890 | 220.6 |
| D | 13 | 172 | 111831 | 502.95 | 913 | 890 | 220.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

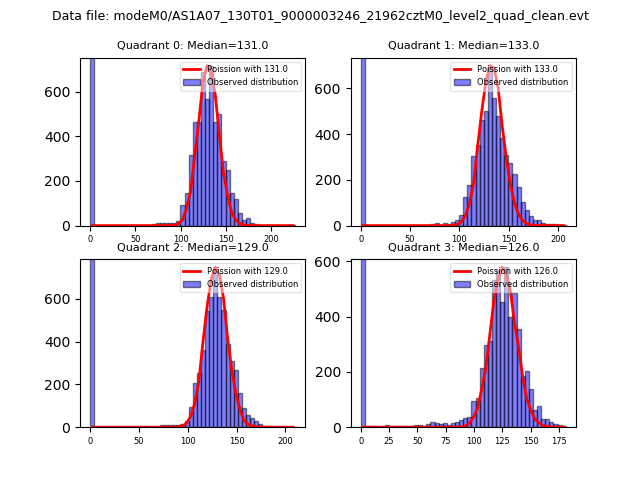

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

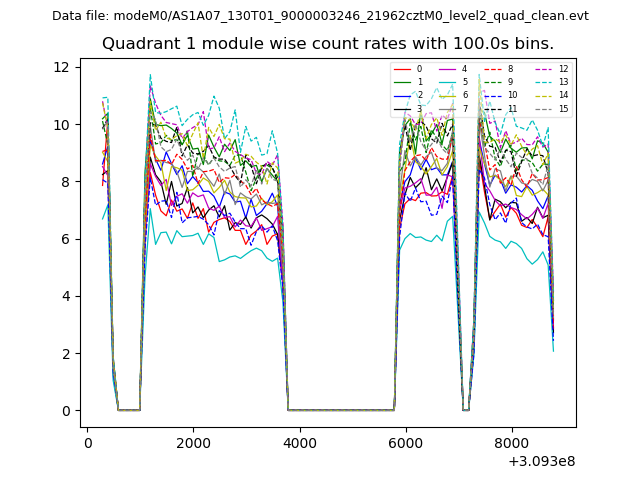

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

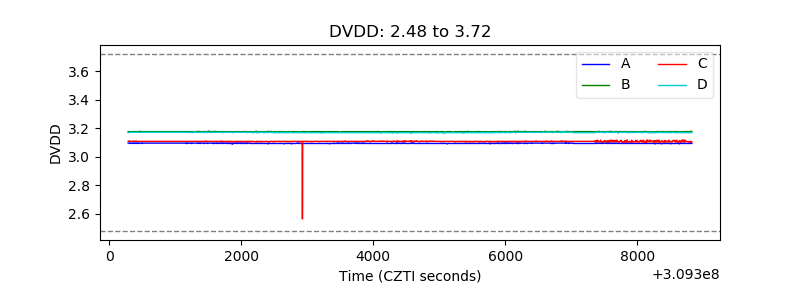

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

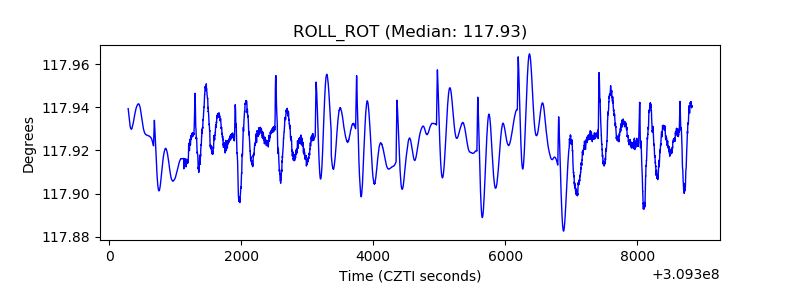

| _ROLL_ROT |  |

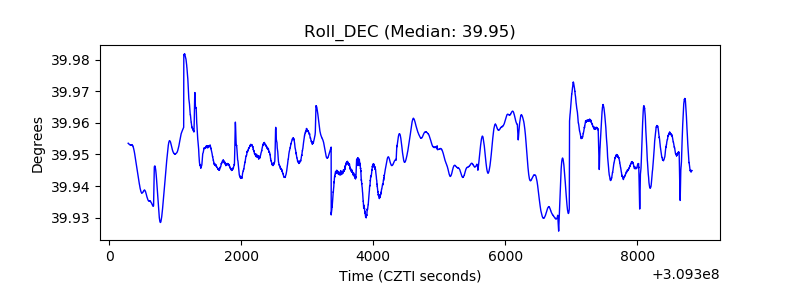

| _Roll_DEC |  |

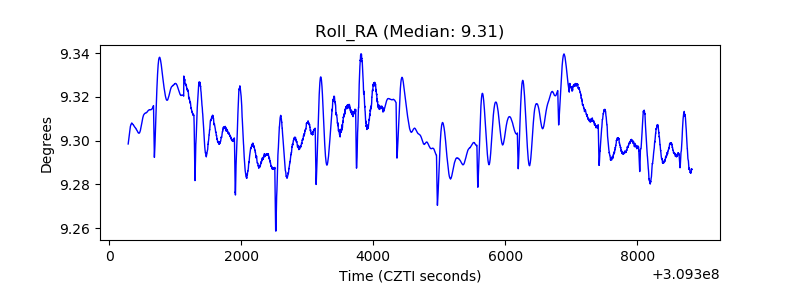

| _Roll_RA |  |

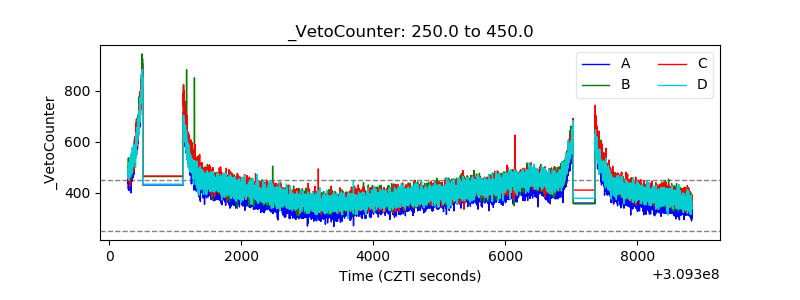

| Veto Counter |  |
