| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_094T01_9000003248_21972cztM0_level2.evt | modeM0/AS1A07_094T01_9000003248_21972cztM0_level2_quad_clean.evt |
| Size (bytes) | 249,042,240 | 52,643,520 |
| Size | 237.5 MB | 50.2 MB |
| Events in quadrant A | 1,770,063 | 354,379 |
| Events in quadrant B | 1,882,508 | 355,877 |
| Events in quadrant C | 1,734,211 | 333,749 |
| Events in quadrant D | 1,944,352 | 330,341 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7305 | 1 |
| B | 0 | 7721 | 1 |
| C | 0 | 7089 | 1 |
| D | 0 | 7763 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3083 | 99 | 3.211158% |
| B | 3083 | 110 | 3.567953% |
| C | 3083 | 123 | 3.989620% |
| D | 3083 | 88 | 2.854363% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4413 | 3083 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4413 | 3083 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4413 | 3083 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4413 | 3083 | 13 | 13 | 0.29% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 253 | 7852 | 80.25 | 456 | 447 | 92.3 |
| A | 13 | 254 | 5179 | 51.28 | 456 | 447 | 92.3 |
| A | 0 | 226 | 3881 | 37.22 | 456 | 447 | 92.3 |
| B | 0 | 230 | 67269 | 779.8 | 446 | 438 | 85.7 |
| B | 0 | 197 | 46294 | 535.06 | 446 | 438 | 85.7 |
| B | 3 | 64 | 19303 | 220.12 | 446 | 438 | 85.7 |
| C | 14 | 238 | 68119 | 678.87 | 427 | 430 | 99.7 |
| C | 13 | 61 | 2949 | 25.26 | 427 | 430 | 99.7 |
| C | 4 | 175 | 1333 | 9.06 | 427 | 430 | 99.7 |
| D | 1 | 52 | 105579 | 983.48 | 440 | 429 | 106.9 |
| D | 2 | 136 | 49908 | 462.78 | 440 | 429 | 106.9 |
| D | 13 | 174 | 49280 | 456.91 | 440 | 429 | 106.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

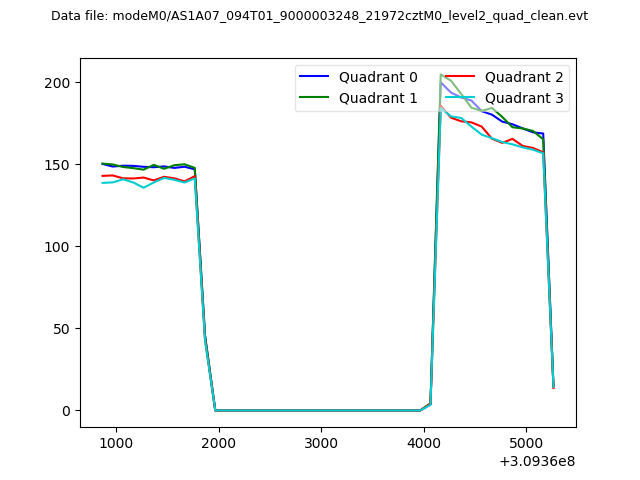

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

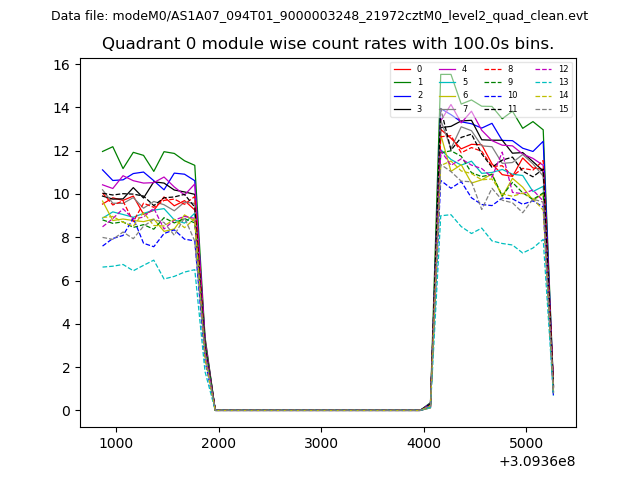

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

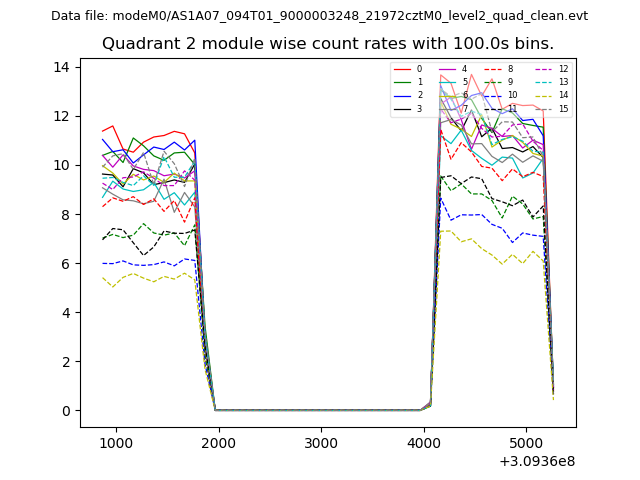

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

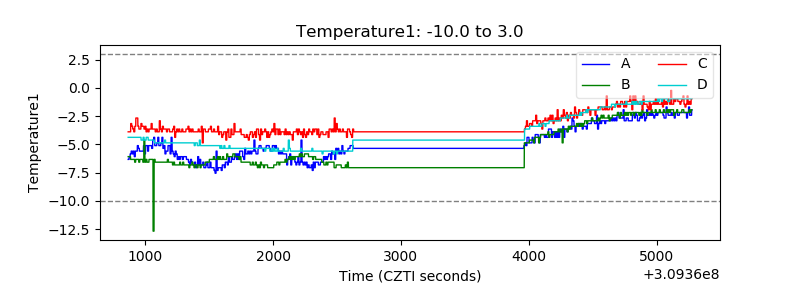

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

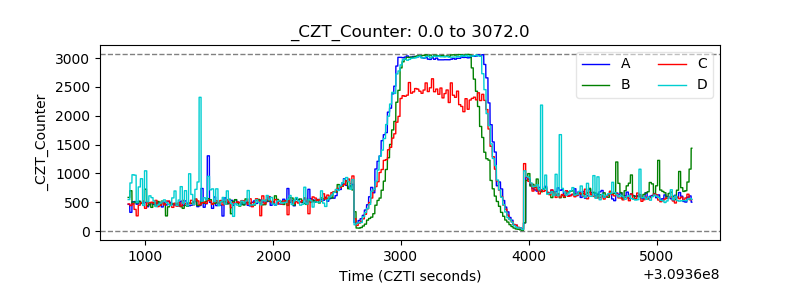

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
