| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_094T01_9000003248_21976cztM0_level2.evt | modeM0/AS1A07_094T01_9000003248_21976cztM0_level2_quad_clean.evt |
| Size (bytes) | 640,825,920 | 103,760,640 |
| Size | 611.1 MB | 99.0 MB |
| Events in quadrant A | 3,738,734 | 682,033 |
| Events in quadrant B | 3,943,822 | 684,028 |
| Events in quadrant C | 3,628,521 | 658,502 |
| Events in quadrant D | 7,597,014 | 604,053 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15882 | 2 |
| B | 0 | 16415 | 2 |
| C | 0 | 15498 | 2 |
| D | 0 | 27656 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7372 | 135 | 1.831253% |
| B | 7373 | 232 | 3.146616% |
| C | 7373 | 176 | 2.387088% |
| D | 7373 | 890 | 12.071070% |

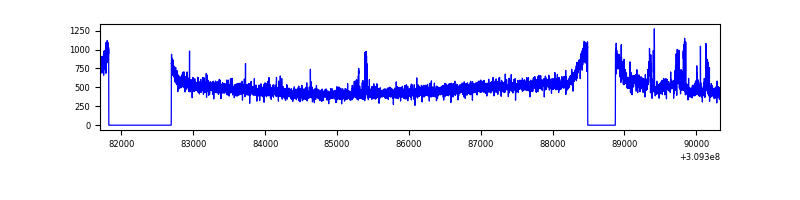

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8627 | 7373 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8628 | 7373 | 37 | 37 | 0.43% | 0.50% |  |
| C | 8628 | 7373 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8628 | 7373 | 615 | 615 | 7.13% | 8.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 125428 | 657.69 | 936 | 916 | 189.3 |
| A | 13 | 254 | 13506 | 66.5 | 936 | 916 | 189.3 |
| A | 3 | 137 | 8116 | 38.03 | 936 | 916 | 189.3 |
| B | 3 | 64 | 176901 | 975.73 | 925 | 900 | 180.4 |
| B | 0 | 230 | 91869 | 504.32 | 925 | 900 | 180.4 |
| B | 0 | 190 | 21610 | 114.81 | 925 | 900 | 180.4 |
| C | 14 | 238 | 140174 | 655.07 | 895 | 901 | 212.6 |
| C | 13 | 61 | 6295 | 25.37 | 895 | 901 | 212.6 |
| C | 15 | 78 | 2131 | 5.79 | 895 | 901 | 212.6 |
| D | 7 | 238 | 2829449 | 13102.18 | 882 | 856 | 215.9 |
| D | 12 | 227 | 891535 | 4125.67 | 882 | 856 | 215.9 |
| D | 13 | 104 | 195833 | 903.14 | 882 | 856 | 215.9 |

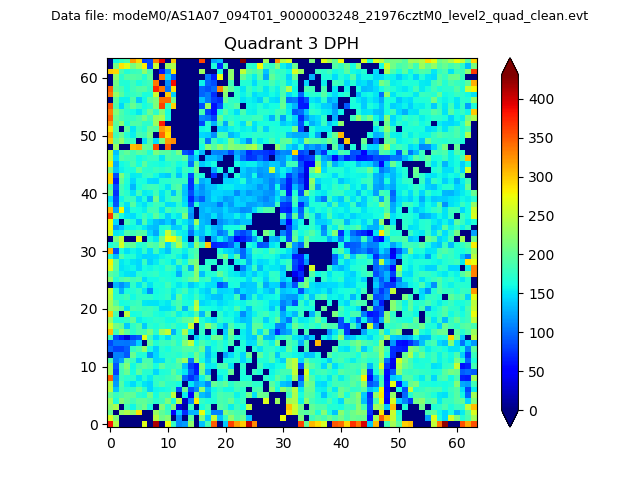

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

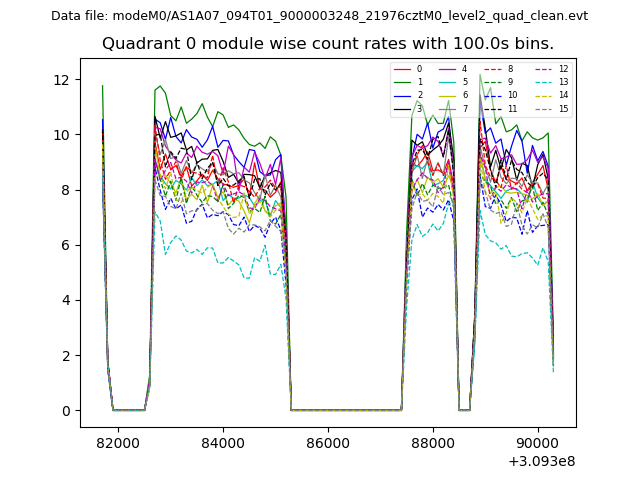

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

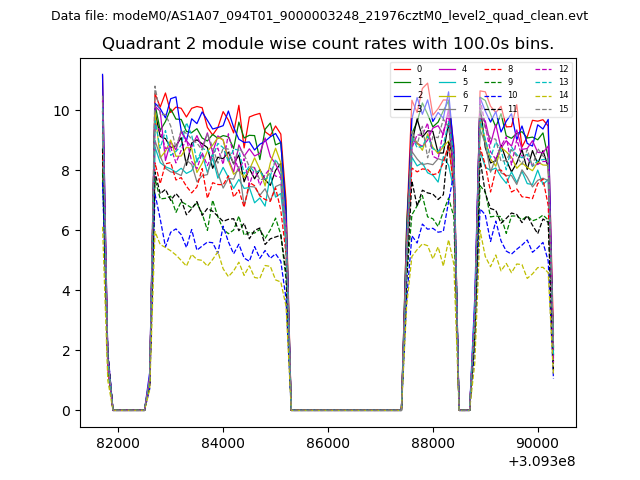

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

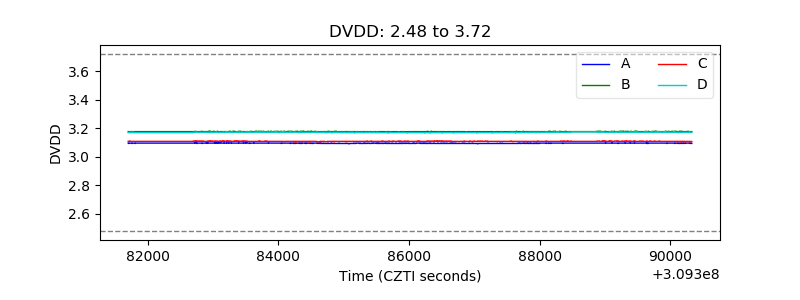

| D_VDD |  |
| Temperature 1 |  |

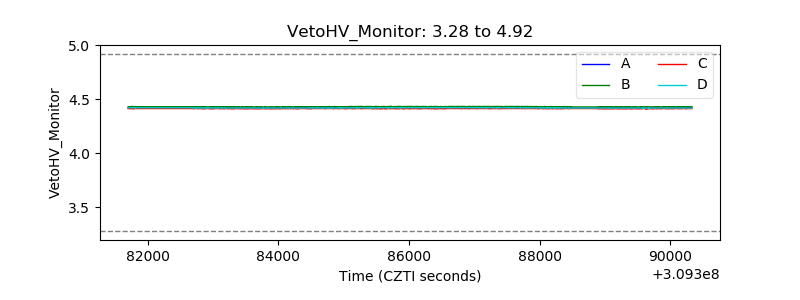

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

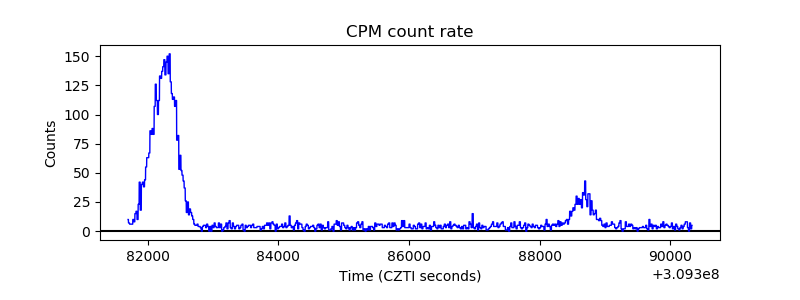

| _CPM_Rate |  |

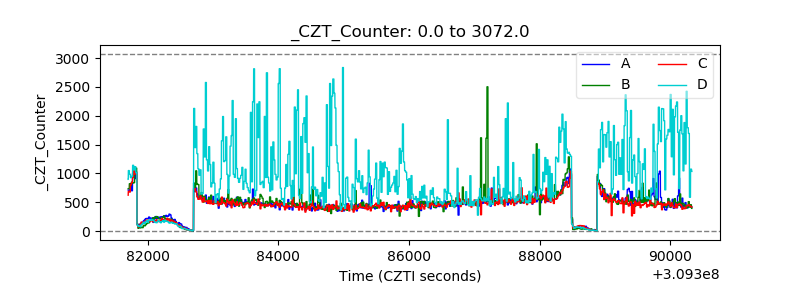

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
