| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_094T01_9000003248_21978cztM0_level2.evt | modeM0/AS1A07_094T01_9000003248_21978cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,738,560 | 106,246,080 |
| Size | 591.0 MB | 101.3 MB |
| Events in quadrant A | 3,762,134 | 689,474 |
| Events in quadrant B | 3,953,222 | 695,126 |
| Events in quadrant C | 3,732,439 | 670,811 |
| Events in quadrant D | 6,787,727 | 614,727 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16418 | 2 |
| B | 0 | 16883 | 2 |
| C | 0 | 16231 | 2 |
| D | 0 | 25567 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7862 | 42 | 0.534215% |
| B | 7863 | 70 | 0.890245% |
| C | 7863 | 70 | 0.890245% |
| D | 7862 | 720 | 9.157975% |

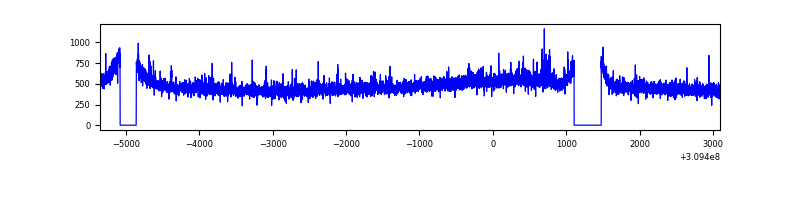

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8452 | 7864 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8453 | 7865 | 14 | 14 | 0.17% | 0.18% |  |
| C | 8453 | 7865 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8452 | 7864 | 629 | 629 | 7.44% | 8.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 60812 | 307.61 | 956 | 933 | 194.7 |
| A | 13 | 254 | 14687 | 70.66 | 956 | 933 | 194.7 |
| A | 3 | 137 | 8158 | 37.12 | 956 | 933 | 194.7 |
| B | 3 | 64 | 75994 | 402.54 | 955 | 929 | 186.5 |
| B | 0 | 230 | 72873 | 385.81 | 955 | 929 | 186.5 |
| B | 12 | 111 | 22193 | 114.03 | 955 | 929 | 186.5 |
| C | 14 | 238 | 144280 | 663.13 | 919 | 923 | 216.2 |
| C | 13 | 61 | 6569 | 26.11 | 919 | 923 | 216.2 |
| C | 14 | 220 | 3676 | 12.73 | 919 | 923 | 216.2 |
| D | 7 | 238 | 2075096 | 9350.74 | 897 | 869 | 221.8 |
| D | 13 | 104 | 897953 | 4044.11 | 897 | 869 | 221.8 |
| D | 5 | 222 | 86108 | 384.26 | 897 | 869 | 221.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

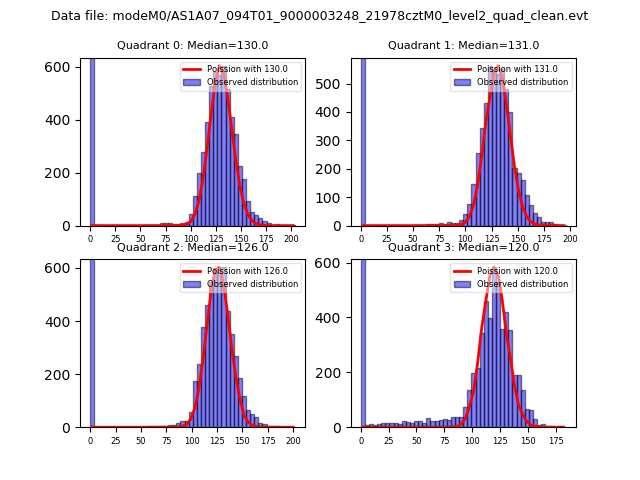

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

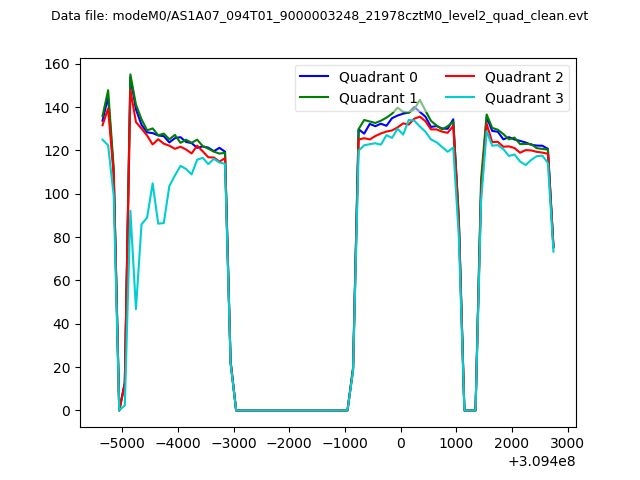

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

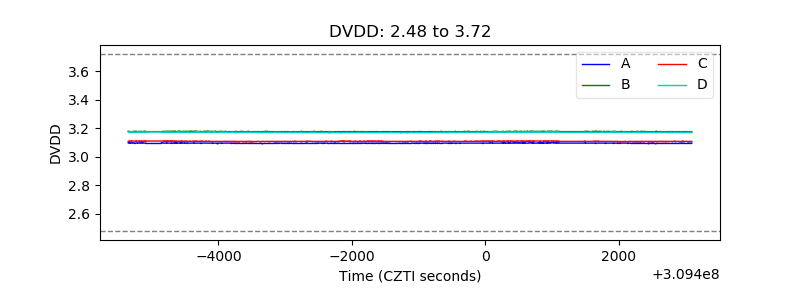

| D_VDD |  |

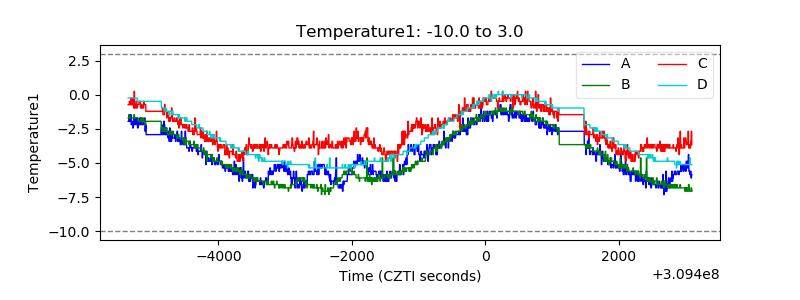

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

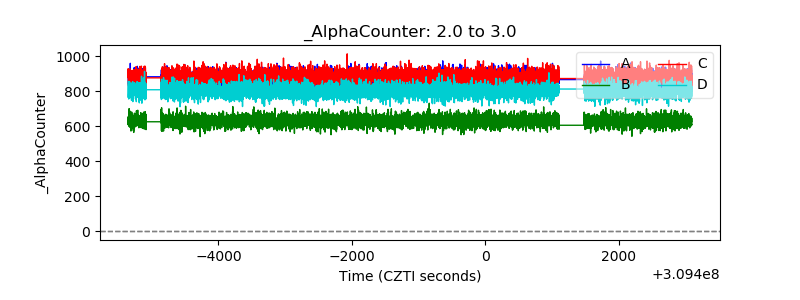

| Alpha Counter |  |

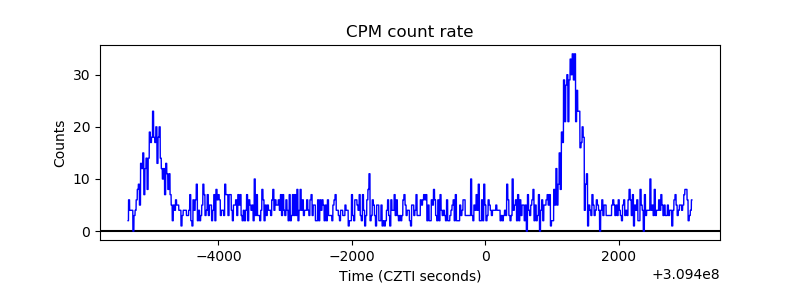

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

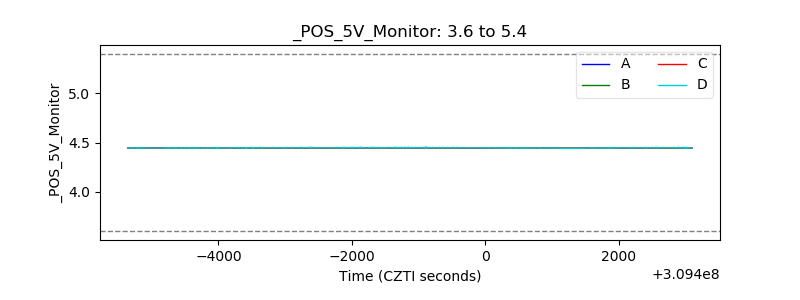

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
