| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_094T01_9000003248_21981cztM0_level2.evt | modeM0/AS1A07_094T01_9000003248_21981cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,066,880 | 68,987,520 |
| Size | 496.9 MB | 65.8 MB |
| Events in quadrant A | 3,349,107 | 406,636 |
| Events in quadrant B | 3,551,884 | 412,783 |
| Events in quadrant C | 3,373,348 | 396,511 |
| Events in quadrant D | 5,027,957 | 381,808 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14372 | 2 |
| B | 0 | 14835 | 2 |
| C | 0 | 14392 | 2 |
| D | 0 | 19556 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7046 | 64 | 0.908317% |
| B | 7046 | 86 | 1.220551% |
| C | 7046 | 78 | 1.107011% |
| D | 7046 | 253 | 3.590690% |

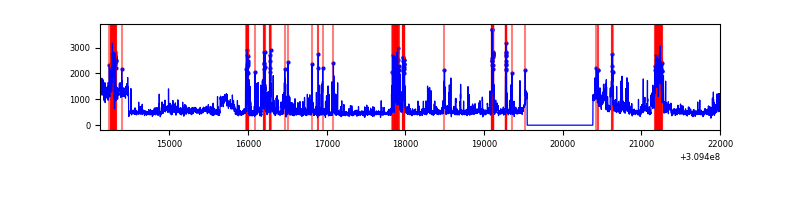

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

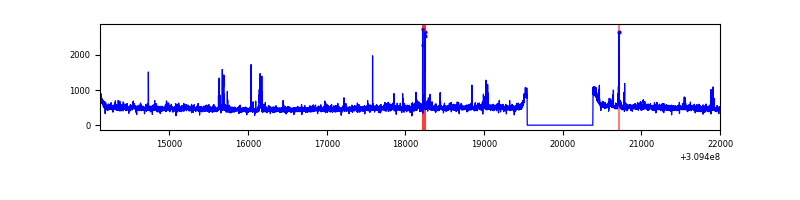

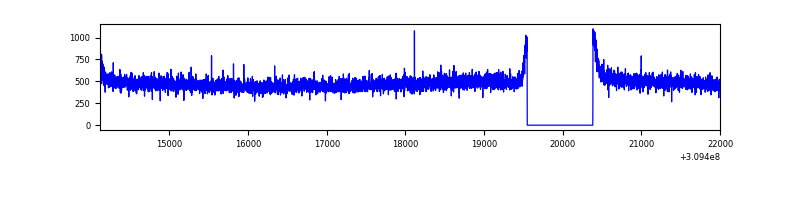

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7881 | 7046 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7881 | 7046 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7881 | 7046 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7881 | 7046 | 197 | 197 | 2.50% | 2.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12263 | 64.85 | 867 | 849 | 176.0 |
| A | 3 | 137 | 7499 | 37.78 | 867 | 849 | 176.0 |
| A | 0 | 226 | 7433 | 37.41 | 867 | 849 | 176.0 |
| B | 3 | 64 | 80074 | 473.78 | 865 | 843 | 167.2 |
| B | 0 | 230 | 35089 | 204.78 | 865 | 843 | 167.2 |
| B | 0 | 190 | 23746 | 136.95 | 865 | 843 | 167.2 |
| C | 14 | 238 | 131399 | 668.27 | 830 | 836 | 195.4 |
| C | 13 | 61 | 5889 | 25.86 | 830 | 836 | 195.4 |
| C | 10 | 91 | 4067 | 16.54 | 830 | 836 | 195.4 |
| D | 7 | 238 | 1025364 | 5048.57 | 829 | 806 | 202.9 |
| D | 5 | 222 | 547229 | 2692.53 | 829 | 806 | 202.9 |
| D | 1 | 52 | 174694 | 856.84 | 829 | 806 | 202.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

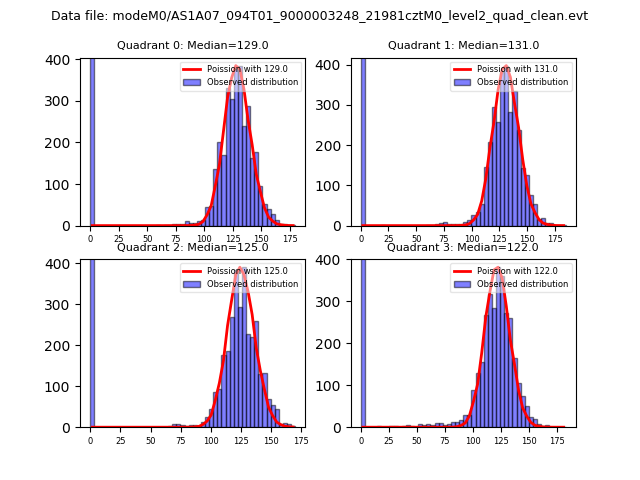

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

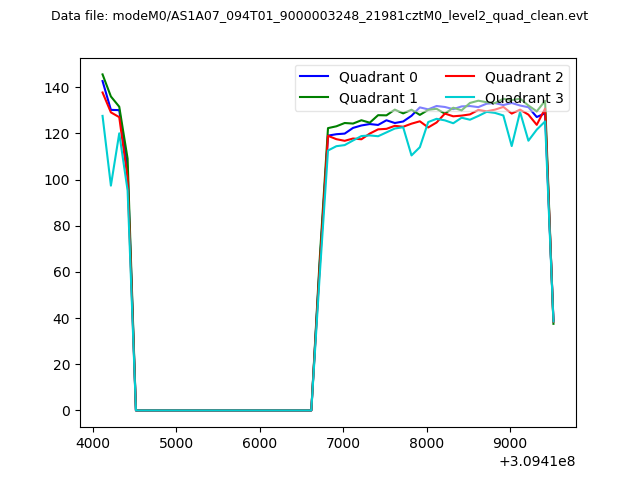

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

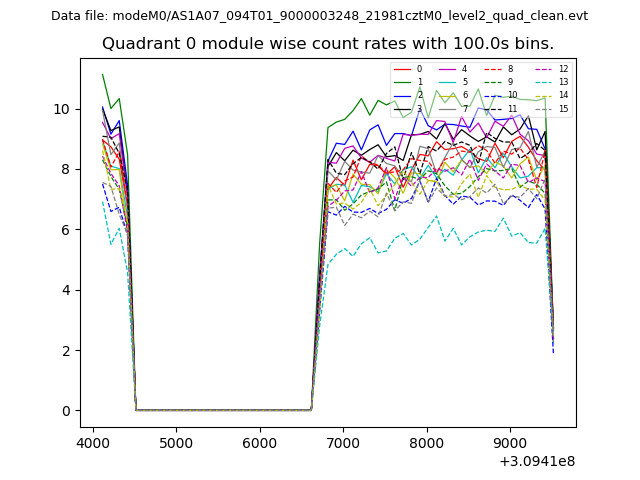

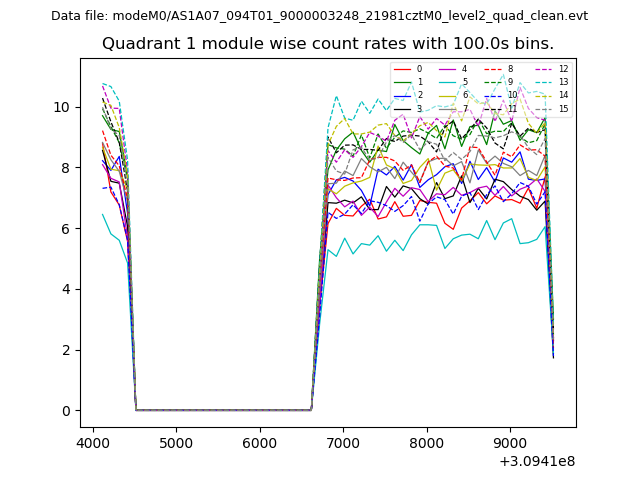

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

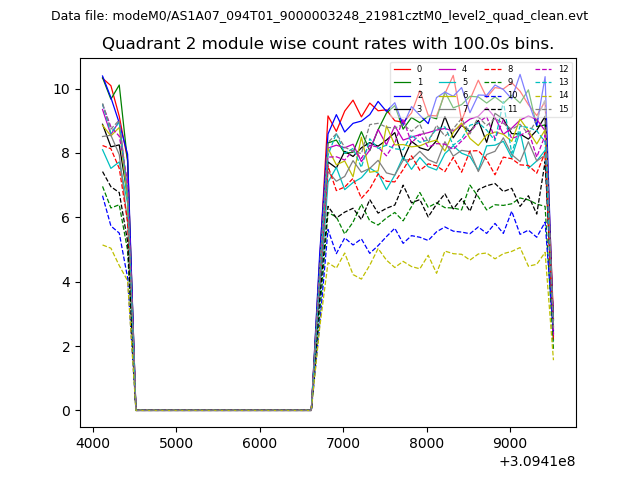

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

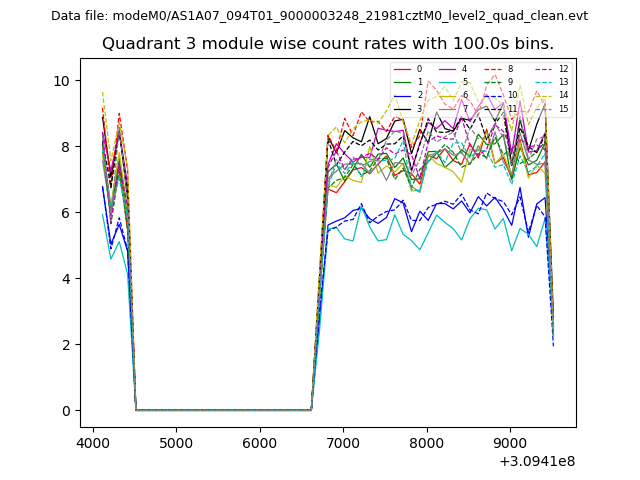

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

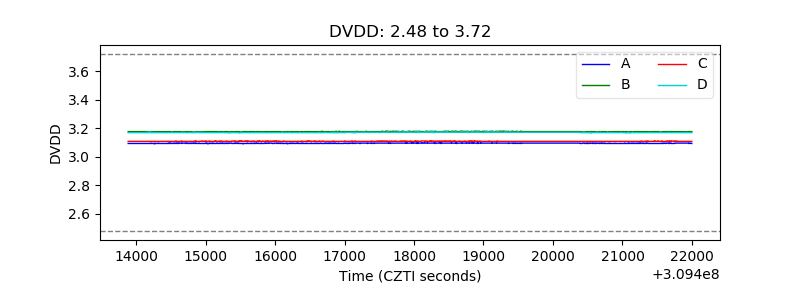

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

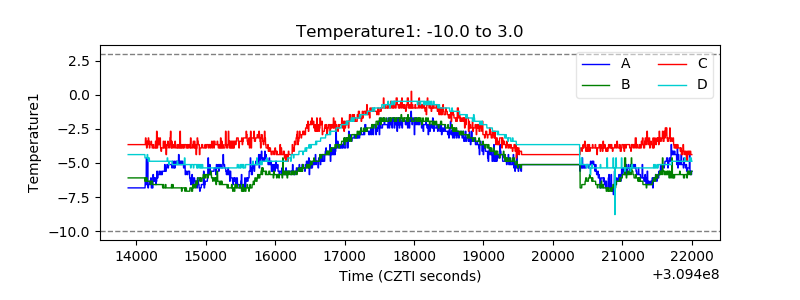

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

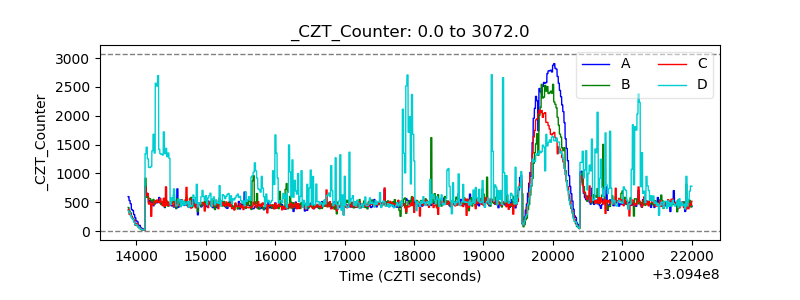

| CZT Counter |  |

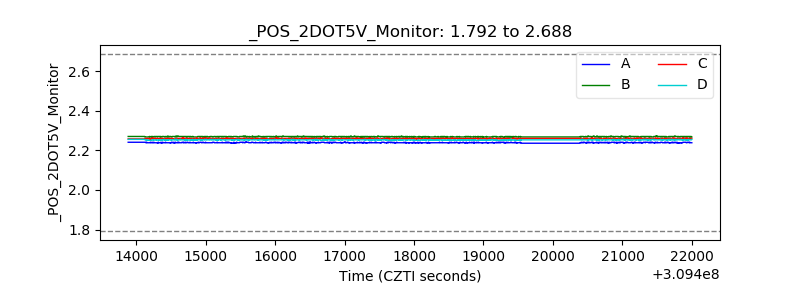

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

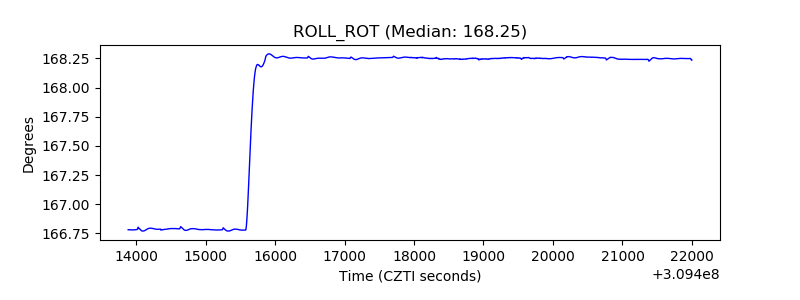

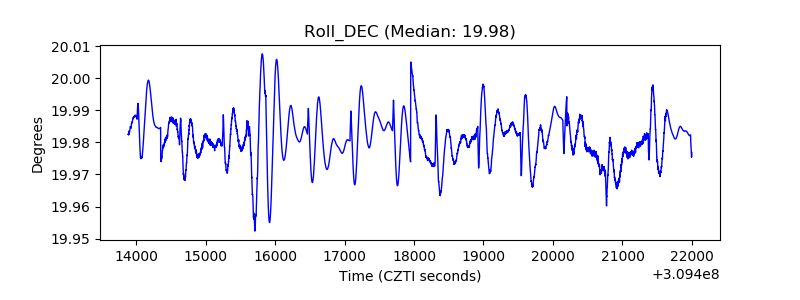

| _ROLL_ROT |  |
| _Roll_DEC |  |

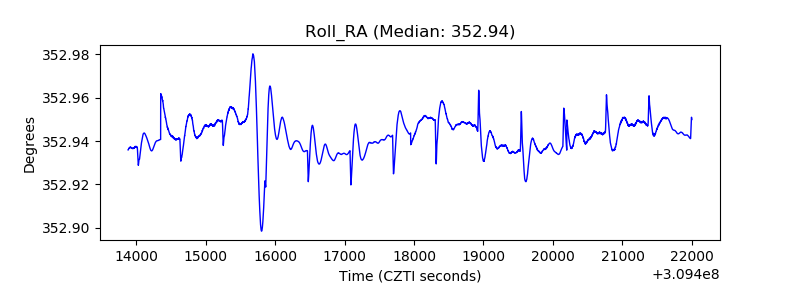

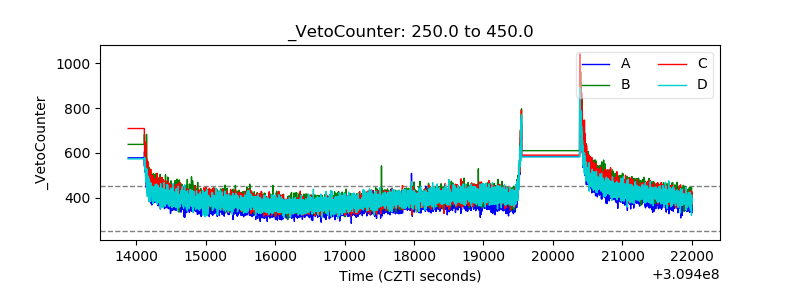

| _Roll_RA |  |
| Veto Counter |  |
