| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_094T01_9000003248_21982cztM0_level2.evt | modeM0/AS1A07_094T01_9000003248_21982cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,968,640 | 71,429,760 |
| Size | 527.4 MB | 68.1 MB |
| Events in quadrant A | 3,462,256 | 429,689 |
| Events in quadrant B | 3,775,895 | 438,504 |
| Events in quadrant C | 3,444,261 | 420,813 |
| Events in quadrant D | 5,594,646 | 391,245 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14491 | 2 |
| B | 0 | 15403 | 2 |
| C | 0 | 14420 | 2 |
| D | 0 | 21105 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6917 | 127 | 1.836056% |
| B | 6918 | 209 | 3.021104% |
| C | 6918 | 129 | 1.864701% |
| D | 6918 | 512 | 7.400983% |

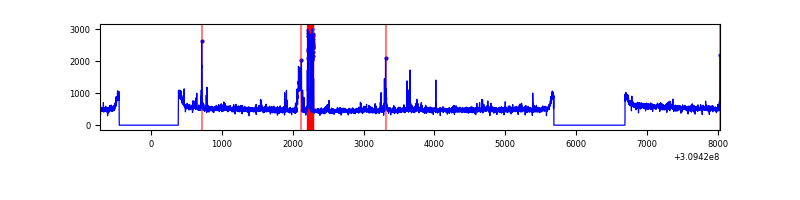

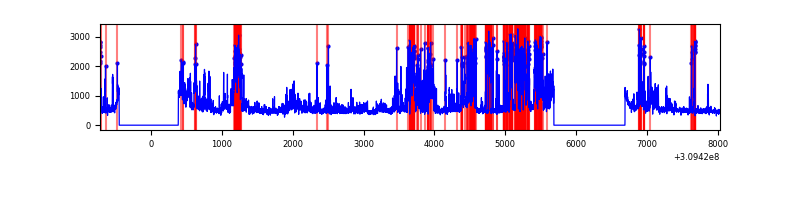

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8757 | 6917 | 9 | 9 | 0.10% | 0.13% |  |
| B | 8757 | 6917 | 59 | 59 | 0.67% | 0.85% |  |
| C | 8758 | 6918 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8758 | 6918 | 416 | 416 | 4.75% | 6.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 24462 | 130.5 | 891 | 872 | 180.8 |
| A | 13 | 254 | 12151 | 62.4 | 891 | 872 | 180.8 |
| A | 3 | 137 | 7593 | 37.18 | 891 | 872 | 180.8 |
| B | 3 | 64 | 266071 | 1570.89 | 884 | 861 | 168.8 |
| B | 0 | 230 | 23678 | 135.15 | 884 | 861 | 168.8 |
| B | 12 | 111 | 20608 | 116.97 | 884 | 861 | 168.8 |
| C | 14 | 238 | 135007 | 668.42 | 848 | 855 | 200.7 |
| C | 13 | 61 | 5845 | 24.86 | 848 | 855 | 200.7 |
| C | 0 | 10 | 3964 | 15.49 | 848 | 855 | 200.7 |
| D | 5 | 222 | 1591440 | 7739.95 | 841 | 817 | 205.5 |
| D | 1 | 52 | 583092 | 2833.34 | 841 | 817 | 205.5 |
| D | 13 | 172 | 91935 | 443.38 | 841 | 817 | 205.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

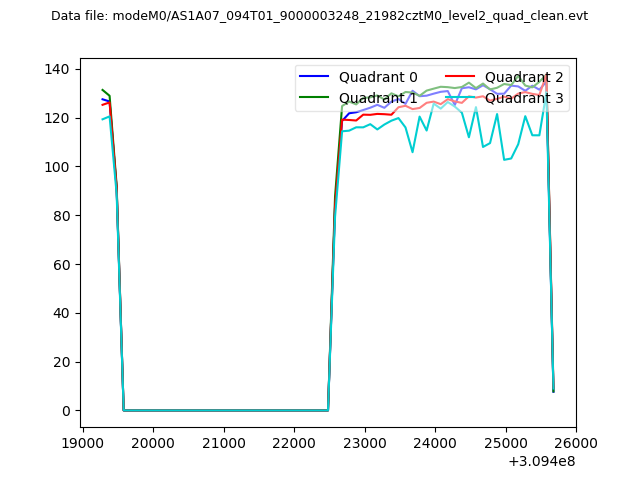

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

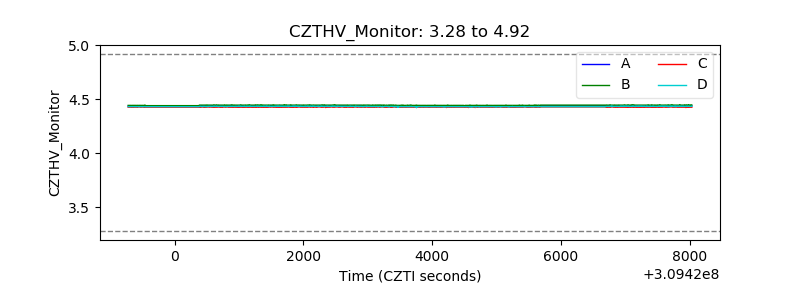

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

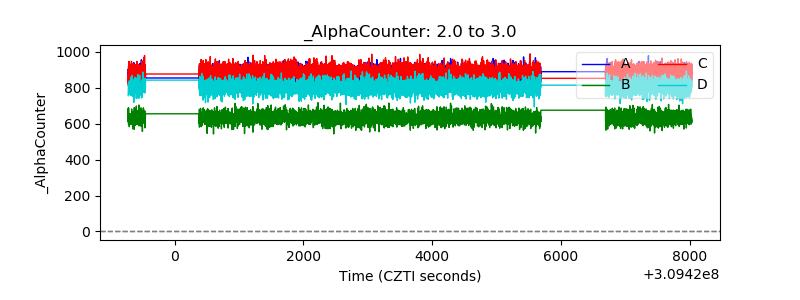

| Alpha Counter |  |

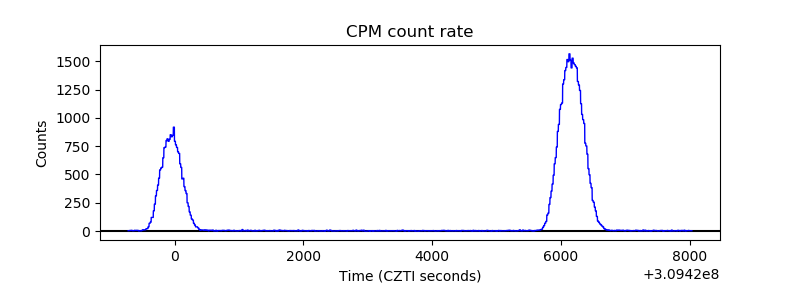

| _CPM_Rate |  |

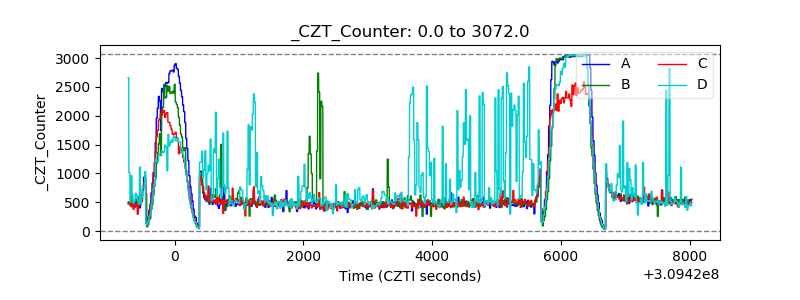

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
