| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_094T01_9000003248_21989cztM0_level2.evt | modeM0/AS1A07_094T01_9000003248_21989cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,650,880 | 104,915,520 |
| Size | 464.1 MB | 100.1 MB |
| Events in quadrant A | 3,454,199 | 698,080 |
| Events in quadrant B | 3,732,698 | 696,035 |
| Events in quadrant C | 3,380,784 | 660,894 |
| Events in quadrant D | 3,715,568 | 655,557 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14369 | 3 |
| B | 0 | 15255 | 2 |
| C | 0 | 14124 | 2 |
| D | 0 | 15335 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6692 | 105 | 1.569038% |
| B | 6692 | 173 | 2.585176% |
| C | 6692 | 126 | 1.882845% |
| D | 6692 | 101 | 1.509265% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7727 | 6692 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7727 | 6692 | 20 | 20 | 0.26% | 0.30% |  |
| C | 7727 | 6693 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7727 | 6693 | 40 | 40 | 0.52% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 17142 | 91.63 | 885 | 868 | 177.6 |
| A | 15 | 236 | 16008 | 85.24 | 885 | 868 | 177.6 |
| A | 13 | 254 | 11580 | 60.31 | 885 | 868 | 177.6 |
| B | 3 | 64 | 133765 | 803.52 | 869 | 849 | 165.4 |
| B | 0 | 197 | 78444 | 469.09 | 869 | 849 | 165.4 |
| B | 0 | 190 | 34752 | 204.96 | 869 | 849 | 165.4 |
| C | 14 | 238 | 132194 | 679.14 | 832 | 838 | 193.4 |
| C | 0 | 10 | 7350 | 33.67 | 832 | 838 | 193.4 |
| C | 13 | 61 | 5869 | 26.01 | 832 | 838 | 193.4 |
| D | 1 | 52 | 191386 | 906.44 | 858 | 834 | 210.2 |
| D | 7 | 238 | 78240 | 368.22 | 858 | 834 | 210.2 |
| D | 7 | 38 | 56514 | 264.87 | 858 | 834 | 210.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

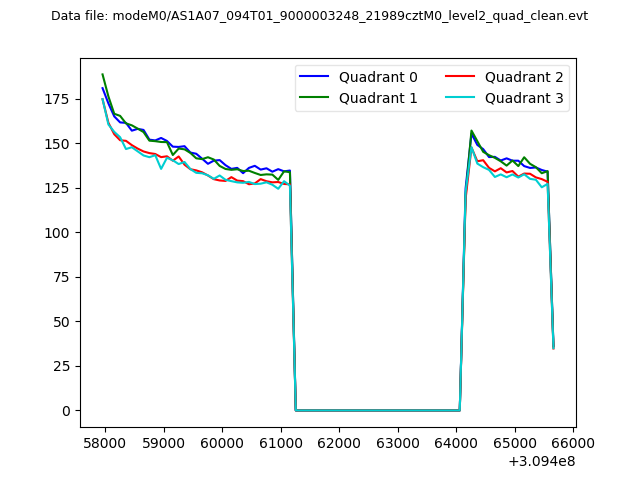

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

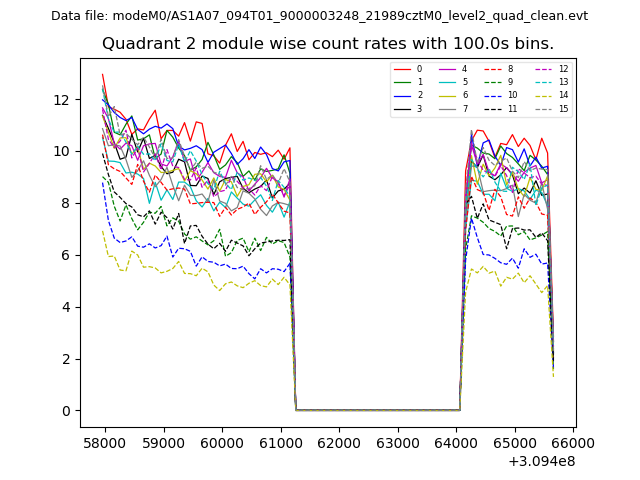

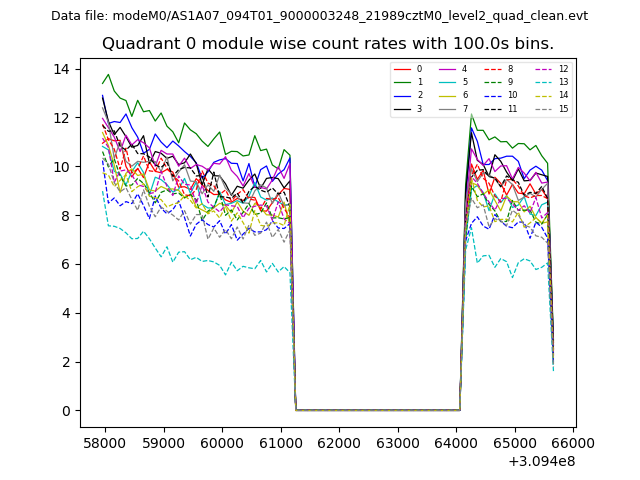

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

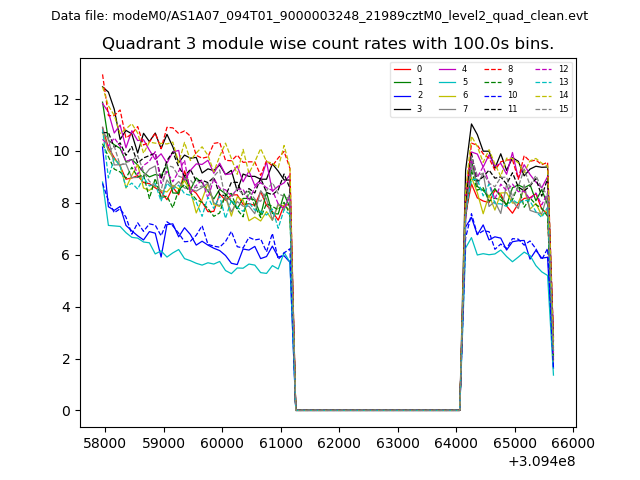

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

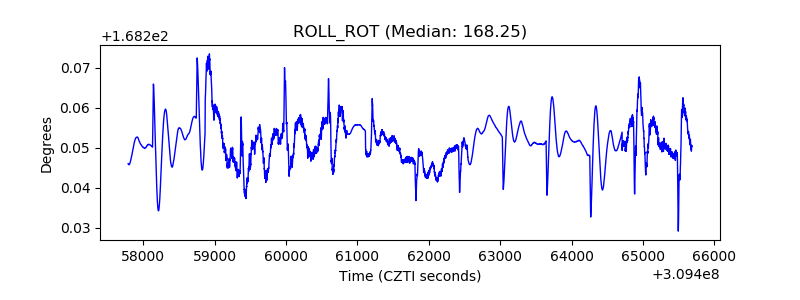

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

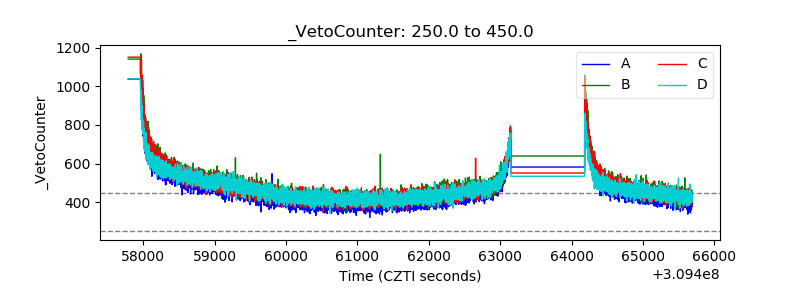

| Veto Counter |  |
