| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_094T01_9000003248_21990cztM0_level2.evt | modeM0/AS1A07_094T01_9000003248_21990cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,013,760 | 98,919,360 |
| Size | 481.6 MB | 94.3 MB |
| Events in quadrant A | 3,494,396 | 642,423 |
| Events in quadrant B | 3,733,344 | 643,775 |
| Events in quadrant C | 3,438,346 | 616,986 |
| Events in quadrant D | 4,152,834 | 604,684 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14790 | 3 |
| B | 0 | 15497 | 2 |
| C | 0 | 14637 | 2 |
| D | 0 | 17042 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6995 | 129 | 1.844174% |
| B | 6995 | 181 | 2.587563% |
| C | 6995 | 120 | 1.715511% |
| D | 6995 | 212 | 3.030736% |

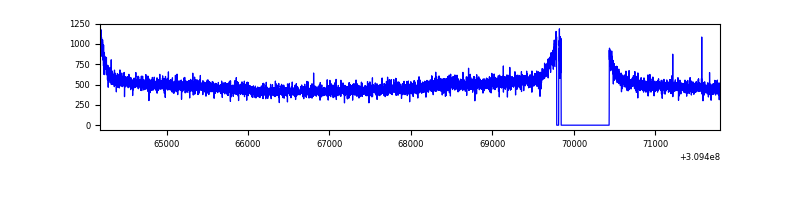

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

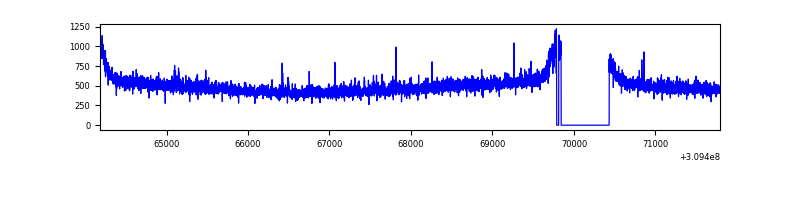

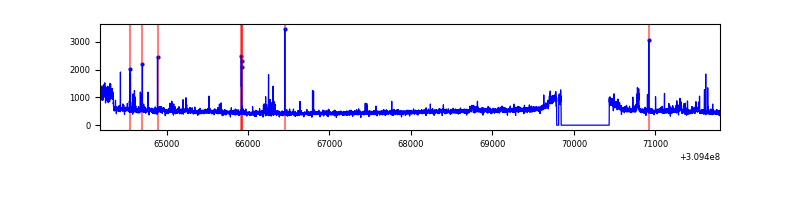

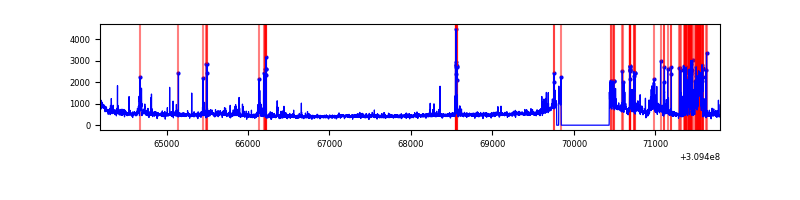

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6996 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7610 | 6995 | 8 | 8 | 0.11% | 0.11% |  |
| C | 7610 | 6996 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7610 | 6996 | 119 | 119 | 1.56% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 79 | 17849 | 93.4 | 895 | 875 | 181.7 |
| A | 15 | 236 | 15895 | 82.65 | 895 | 875 | 181.7 |
| A | 13 | 254 | 12133 | 61.95 | 895 | 875 | 181.7 |
| B | 0 | 197 | 72211 | 417.87 | 885 | 861 | 170.7 |
| B | 3 | 64 | 52573 | 302.86 | 885 | 861 | 170.7 |
| B | 0 | 190 | 40477 | 232.02 | 885 | 861 | 170.7 |
| C | 14 | 238 | 134888 | 670.28 | 846 | 852 | 200.0 |
| C | 0 | 10 | 6568 | 28.58 | 846 | 852 | 200.0 |
| C | 13 | 61 | 5885 | 25.17 | 846 | 852 | 200.0 |
| D | 1 | 52 | 384649 | 1807.68 | 861 | 835 | 212.3 |
| D | 13 | 104 | 222624 | 1044.58 | 861 | 835 | 212.3 |
| D | 7 | 238 | 142004 | 664.88 | 861 | 835 | 212.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

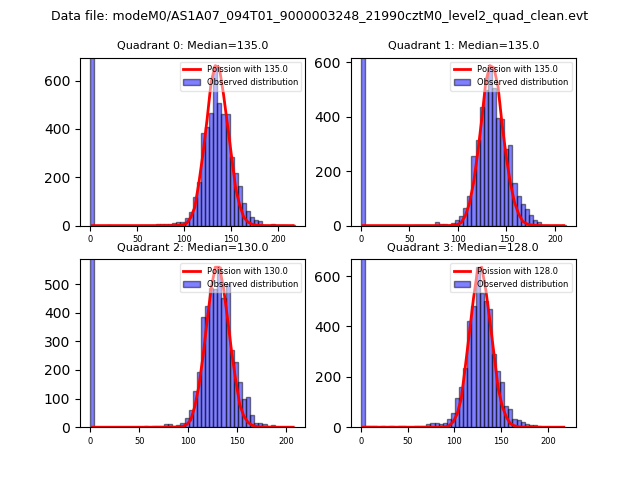

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

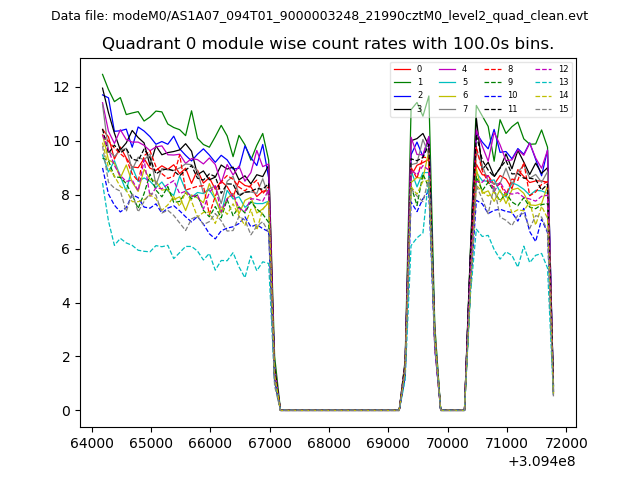

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

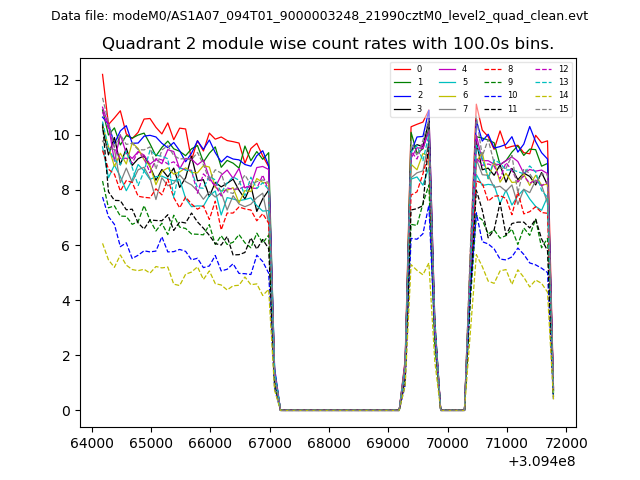

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

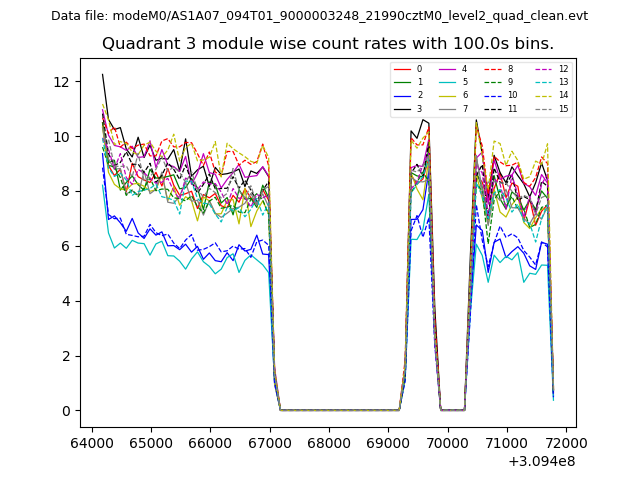

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

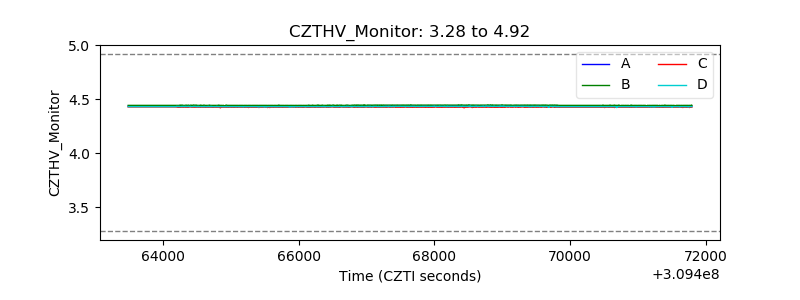

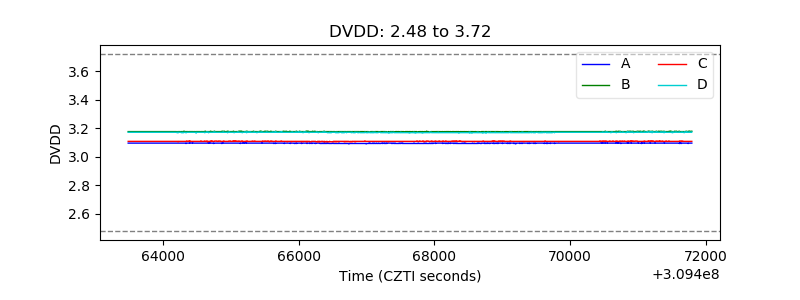

| CZT HV Monitor |  |
| D_VDD |  |

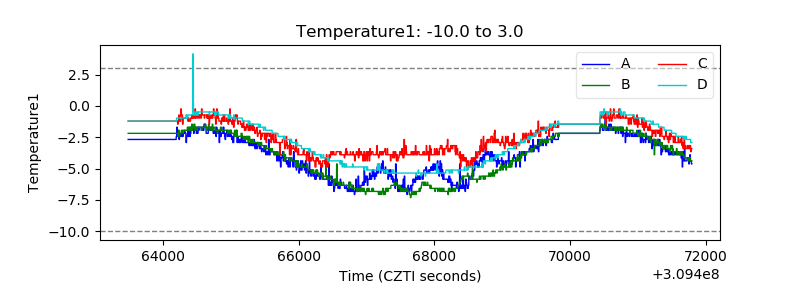

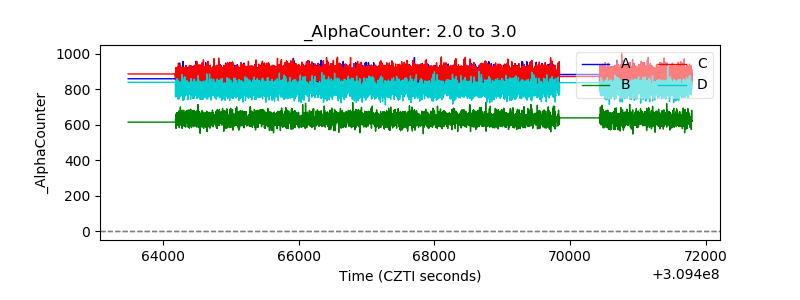

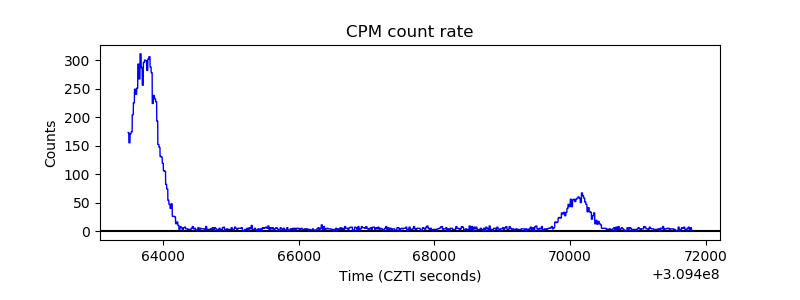

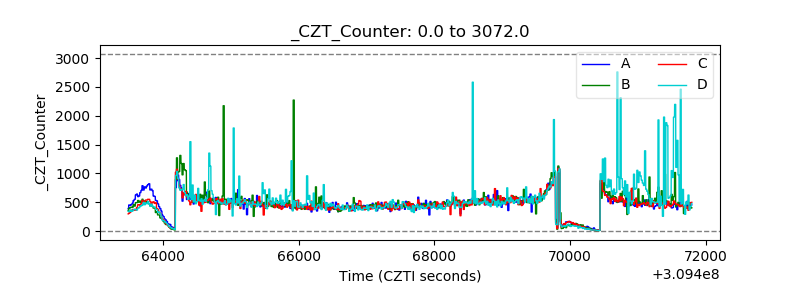

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

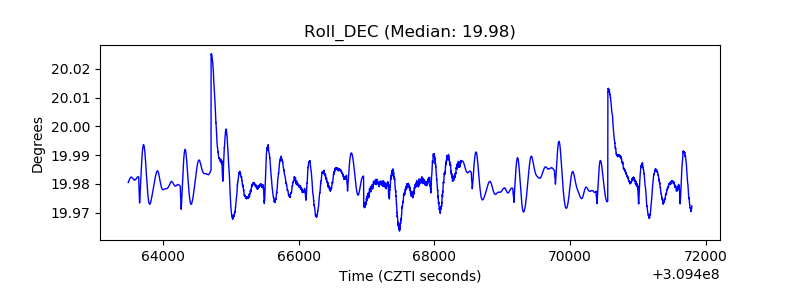

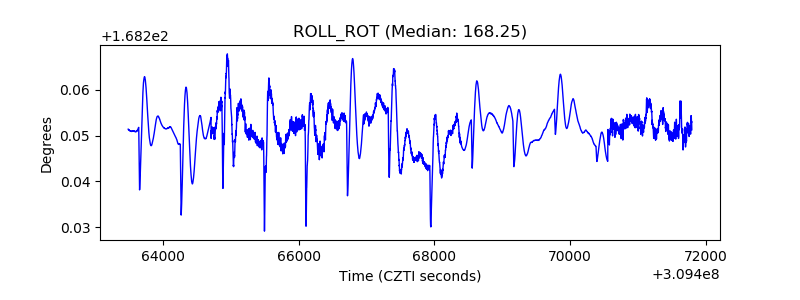

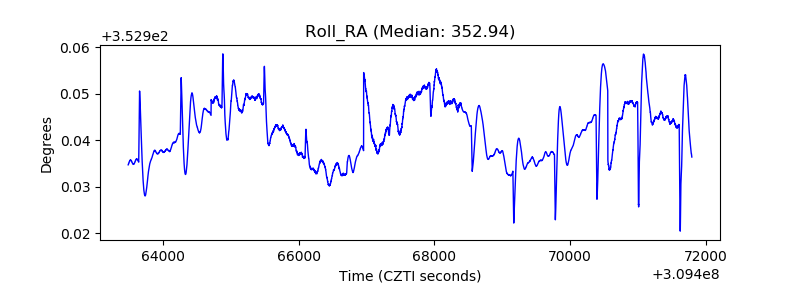

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

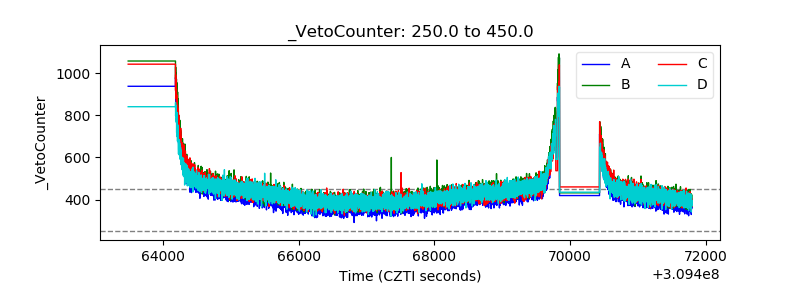

| Veto Counter |  |
