| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_094T01_9000003248_21992cztM0_level2.evt | modeM0/AS1A07_094T01_9000003248_21992cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,492,800 | 119,589,120 |
| Size | 596.5 MB | 114.0 MB |
| Events in quadrant A | 4,096,799 | 781,185 |
| Events in quadrant B | 4,414,235 | 785,503 |
| Events in quadrant C | 4,023,825 | 757,030 |
| Events in quadrant D | 5,849,007 | 724,643 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17497 | 3 |
| B | 0 | 18547 | 3 |
| C | 0 | 17246 | 3 |
| D | 0 | 22794 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8246 | 99 | 1.200582% |
| B | 8247 | 227 | 2.752516% |
| C | 8247 | 164 | 1.988602% |
| D | 8246 | 417 | 5.056997% |

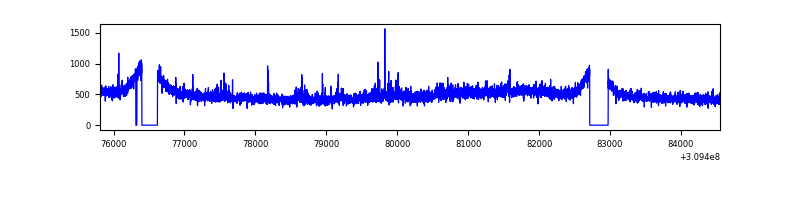

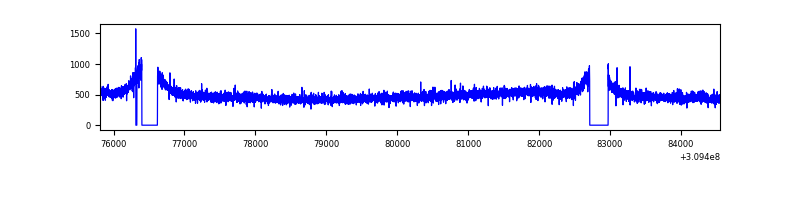

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8741 | 8249 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8742 | 8248 | 38 | 38 | 0.43% | 0.46% |  |
| C | 8742 | 8248 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8741 | 8249 | 359 | 359 | 4.11% | 4.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 97298 | 459.5 | 1028 | 1003 | 209.6 |
| A | 2 | 79 | 18282 | 82.45 | 1028 | 1003 | 209.6 |
| A | 13 | 254 | 15673 | 70.0 | 1028 | 1003 | 209.6 |
| B | 3 | 64 | 229201 | 1155.55 | 1019 | 990 | 197.5 |
| B | 0 | 230 | 78107 | 390.48 | 1019 | 990 | 197.5 |
| B | 0 | 197 | 32653 | 160.33 | 1019 | 990 | 197.5 |
| C | 14 | 238 | 152684 | 655.98 | 985 | 991 | 231.2 |
| C | 8 | 128 | 12915 | 51.56 | 985 | 991 | 231.2 |
| C | 13 | 61 | 6901 | 25.56 | 985 | 991 | 231.2 |
| D | 7 | 238 | 929121 | 3823.97 | 987 | 958 | 242.7 |
| D | 5 | 222 | 638168 | 2625.26 | 987 | 958 | 242.7 |
| D | 1 | 52 | 365071 | 1500.12 | 987 | 958 | 242.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

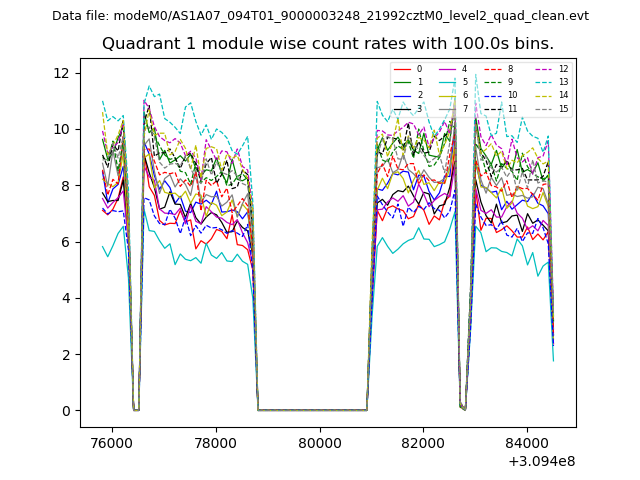

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

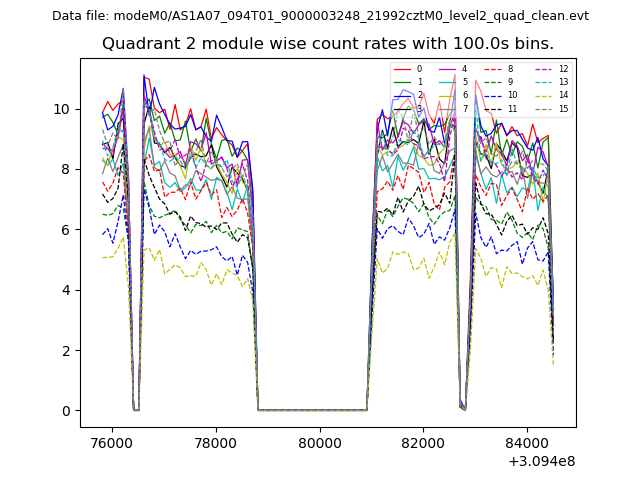

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

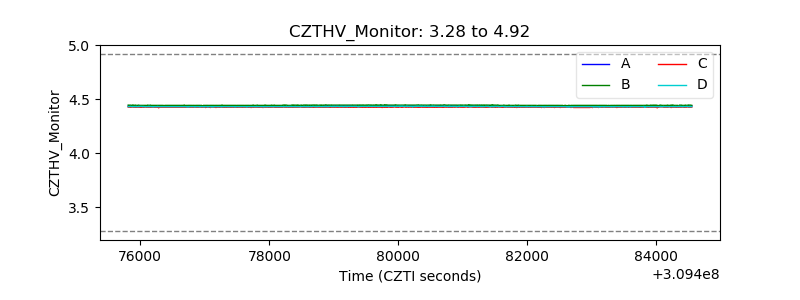

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

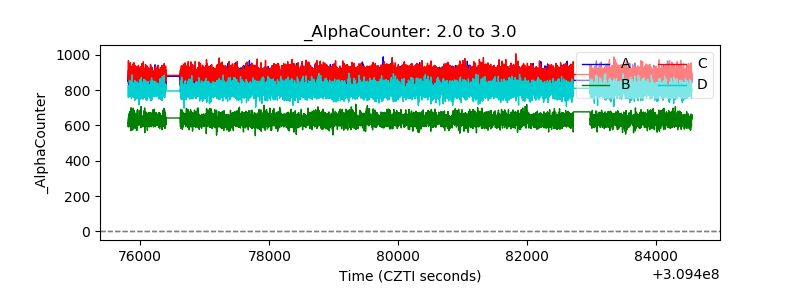

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

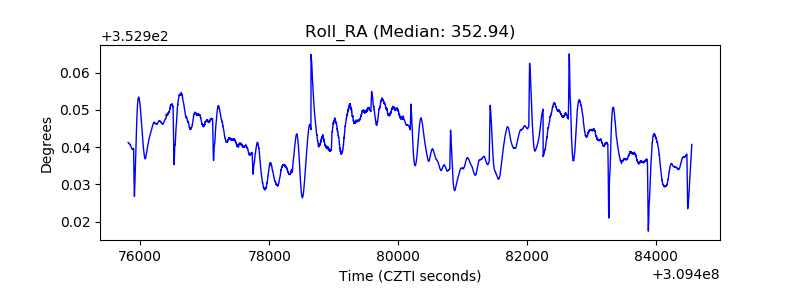

| _Roll_RA |  |

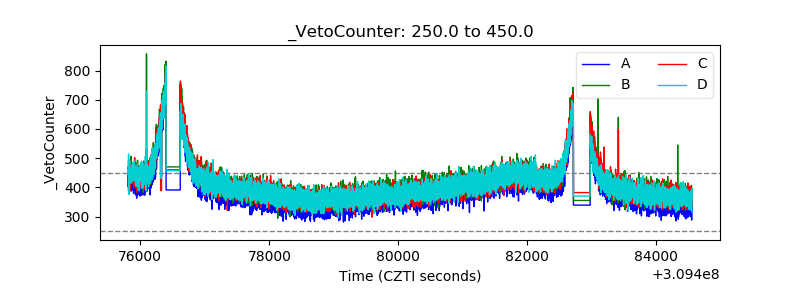

| Veto Counter |  |
