| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_153T02_9000003250_21998cztM0_level2.evt | modeM0/AS1A07_153T02_9000003250_21998cztM0_level2_quad_clean.evt |
| Size (bytes) | 581,604,480 | 86,722,560 |
| Size | 554.7 MB | 82.7 MB |
| Events in quadrant A | 3,150,848 | 567,816 |
| Events in quadrant B | 3,284,024 | 574,567 |
| Events in quadrant C | 3,218,476 | 545,162 |
| Events in quadrant D | 7,528,599 | 493,742 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13387 | 1 |
| B | 0 | 13711 | 1 |
| C | 0 | 13559 | 1 |
| D | 0 | 26703 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6369 | 44 | 0.690846% |
| B | 6369 | 56 | 0.879259% |
| C | 6369 | 94 | 1.475899% |
| D | 6369 | 1538 | 24.148218% |

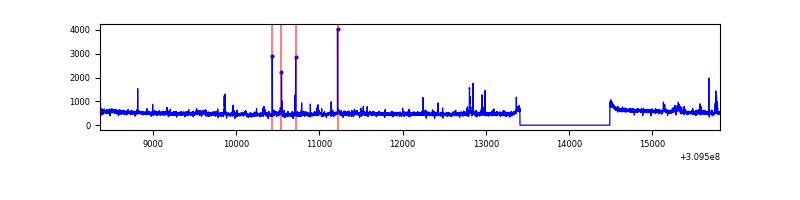

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7449 | 6369 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7449 | 6369 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7449 | 6369 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7449 | 6369 | 1474 | 1474 | 19.79% | 23.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 28210 | 171.1 | 809 | 793 | 160.2 |
| A | 13 | 254 | 10708 | 61.88 | 809 | 793 | 160.2 |
| A | 0 | 226 | 6878 | 37.97 | 809 | 793 | 160.2 |
| B | 3 | 64 | 61144 | 401.58 | 801 | 784 | 150.3 |
| B | 0 | 229 | 30263 | 196.13 | 801 | 784 | 150.3 |
| B | 0 | 197 | 28907 | 187.1 | 801 | 784 | 150.3 |
| C | 14 | 238 | 124688 | 684.55 | 779 | 784 | 181.0 |
| C | 9 | 54 | 47378 | 257.42 | 779 | 784 | 181.0 |
| C | 0 | 10 | 9188 | 46.43 | 779 | 784 | 181.0 |
| D | 7 | 238 | 4133411 | 23206.68 | 739 | 718 | 178.1 |
| D | 1 | 52 | 527253 | 2956.7 | 739 | 718 | 178.1 |
| D | 12 | 235 | 27176 | 148.57 | 739 | 718 | 178.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

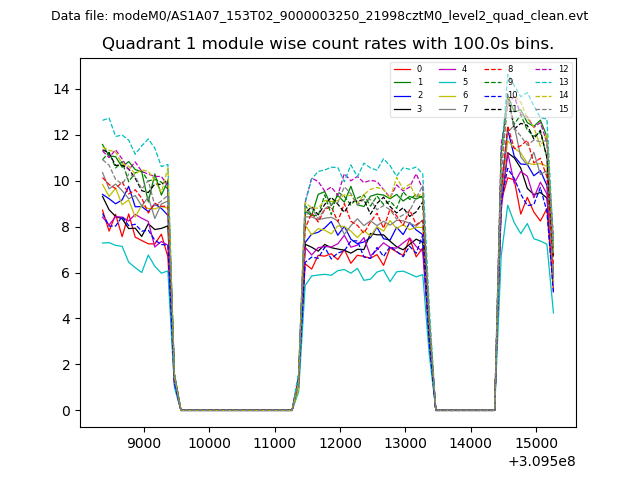

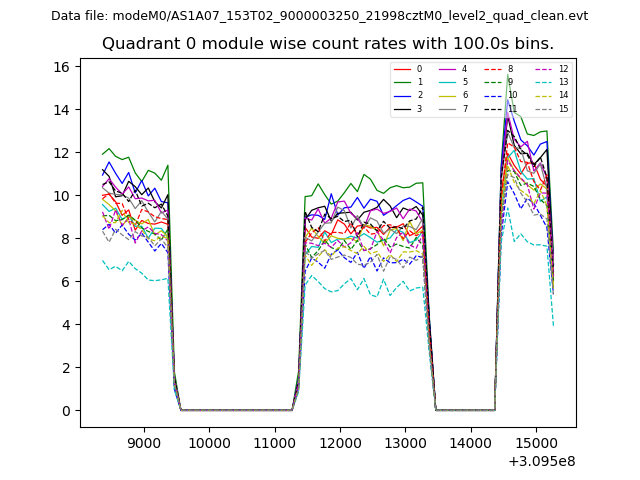

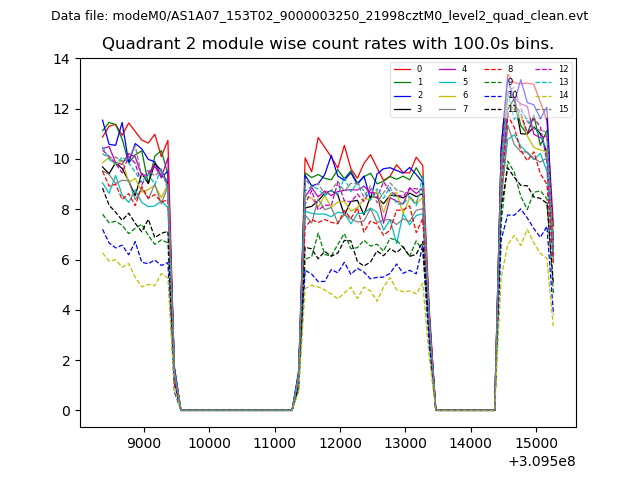

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

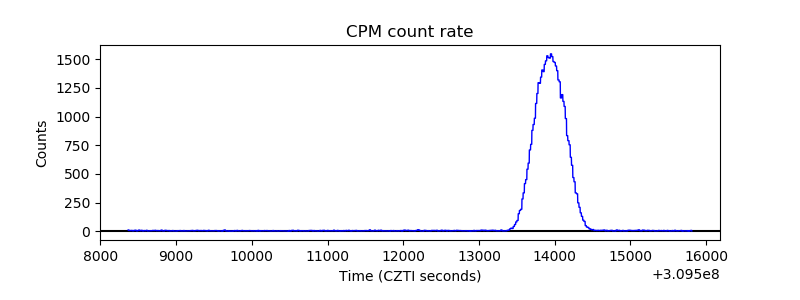

| _CPM_Rate |  |

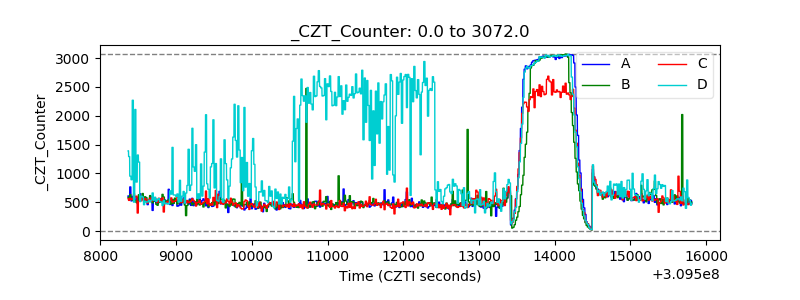

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

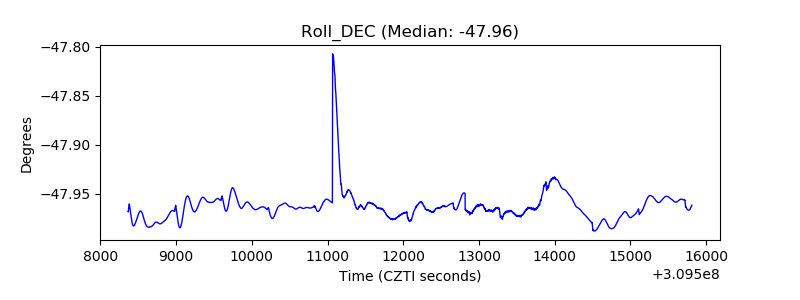

| _Roll_DEC |  |
| _Roll_RA |  |

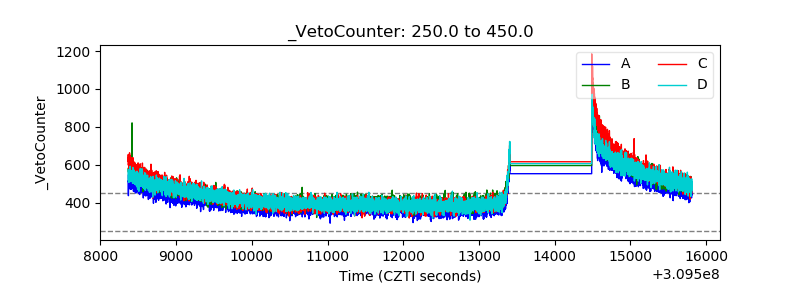

| Veto Counter |  |
