| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_153T02_9000003250_22001cztM0_level2.evt | modeM0/AS1A07_153T02_9000003250_22001cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,992,960 | 72,288,000 |
| Size | 508.3 MB | 68.9 MB |
| Events in quadrant A | 3,720,122 | 447,016 |
| Events in quadrant B | 4,064,859 | 446,510 |
| Events in quadrant C | 3,649,222 | 421,193 |
| Events in quadrant D | 4,265,683 | 419,420 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15295 | 2 |
| B | 0 | 16444 | 2 |
| C | 0 | 15045 | 2 |
| D | 0 | 17136 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6517 | 152 | 2.332362% |
| B | 6517 | 227 | 3.483198% |
| C | 6517 | 186 | 2.854074% |
| D | 6516 | 139 | 2.133211% |

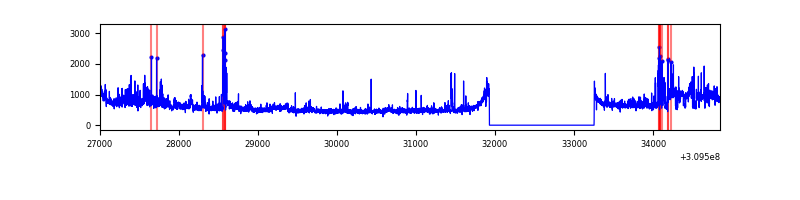

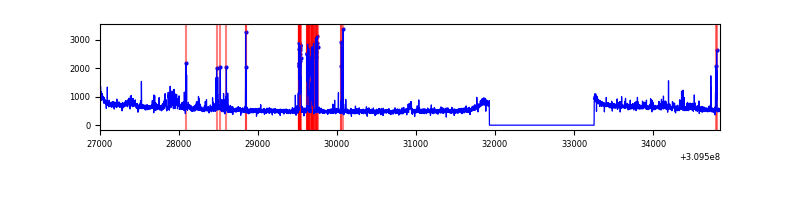

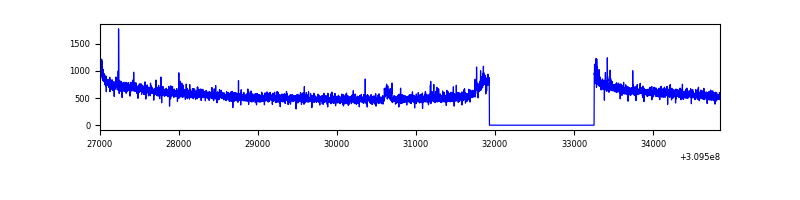

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7842 | 6517 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7842 | 6517 | 61 | 61 | 0.78% | 0.94% |  |
| C | 7842 | 6517 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7841 | 6516 | 17 | 17 | 0.22% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 52200 | 277.62 | 950 | 935 | 184.7 |
| A | 13 | 254 | 11706 | 58.33 | 950 | 935 | 184.7 |
| A | 0 | 226 | 8375 | 40.29 | 950 | 935 | 184.7 |
| B | 3 | 64 | 240431 | 1404.31 | 937 | 917 | 170.6 |
| B | 0 | 197 | 75117 | 435.05 | 937 | 917 | 170.6 |
| B | 0 | 230 | 63008 | 364.05 | 937 | 917 | 170.6 |
| C | 14 | 238 | 144194 | 708.91 | 892 | 900 | 202.1 |
| C | 0 | 10 | 20739 | 98.15 | 892 | 900 | 202.1 |
| C | 10 | 22 | 9755 | 43.81 | 892 | 900 | 202.1 |
| D | 1 | 52 | 483896 | 2232.69 | 911 | 885 | 216.3 |
| D | 7 | 238 | 207946 | 957.13 | 911 | 885 | 216.3 |
| D | 12 | 235 | 40443 | 182.85 | 911 | 885 | 216.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

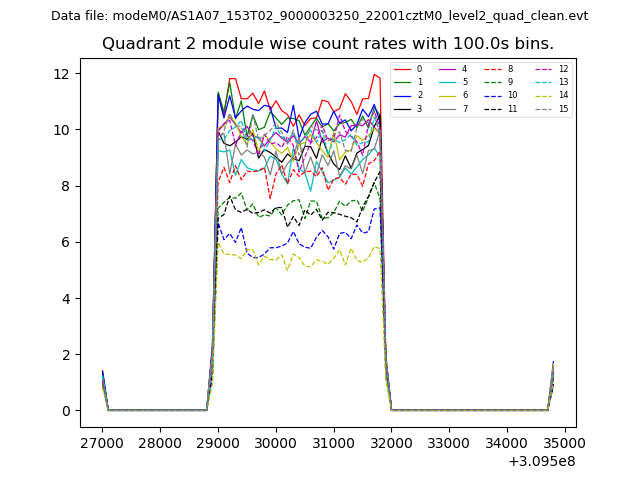

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

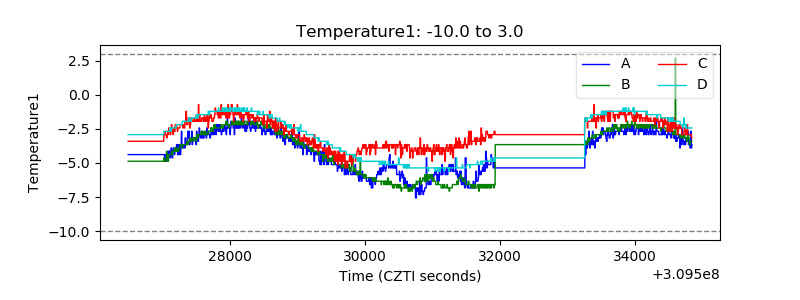

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

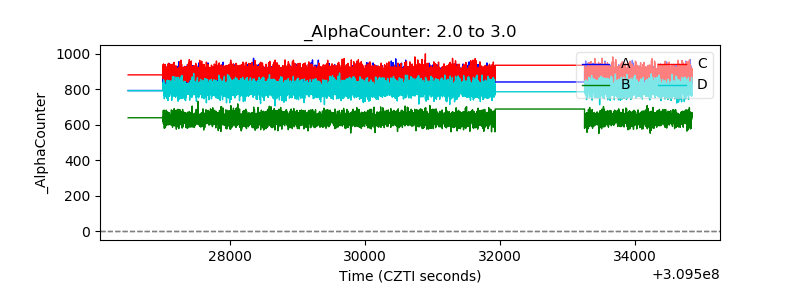

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

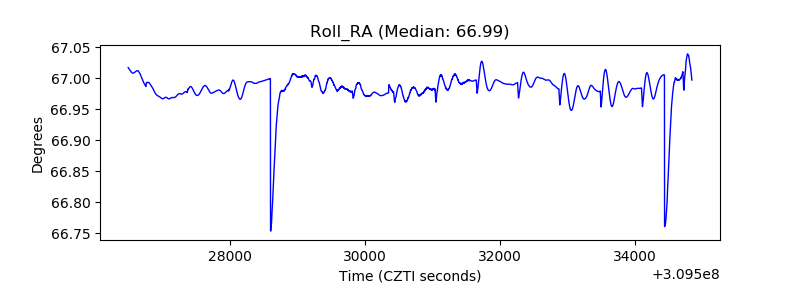

| _Roll_RA |  |

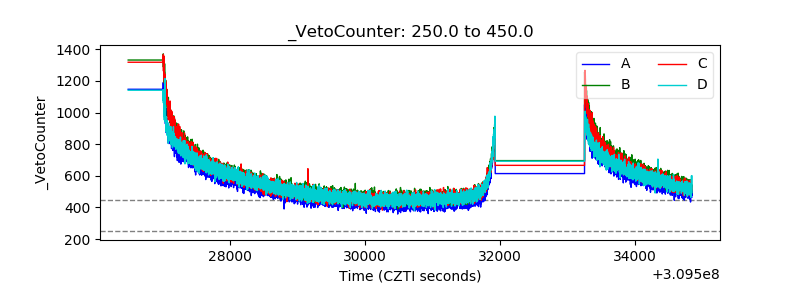

| Veto Counter |  |
