| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_153T02_9000003250_22002cztM0_level2.evt | modeM0/AS1A07_153T02_9000003250_22002cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,779,200 | 88,934,400 |
| Size | 500.5 MB | 84.8 MB |
| Events in quadrant A | 3,595,657 | 578,504 |
| Events in quadrant B | 3,753,370 | 582,733 |
| Events in quadrant C | 3,556,328 | 542,445 |
| Events in quadrant D | 4,544,432 | 533,792 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14809 | 3 |
| B | 0 | 15403 | 2 |
| C | 0 | 14675 | 2 |
| D | 0 | 18092 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6537 | 142 | 2.172250% |
| B | 6537 | 173 | 2.646474% |
| C | 6537 | 195 | 2.983020% |
| D | 6537 | 146 | 2.233440% |

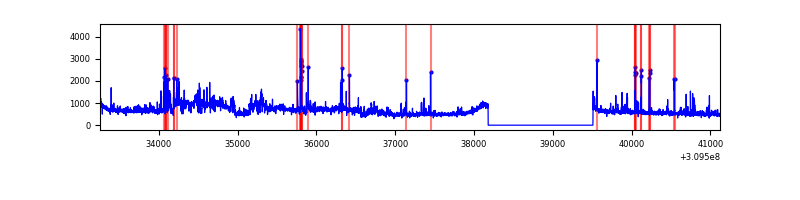

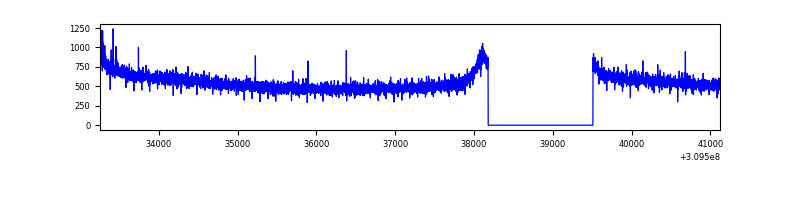

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7867 | 6537 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7867 | 6537 | 11 | 11 | 0.14% | 0.17% |  |
| C | 7867 | 6537 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7867 | 6537 | 41 | 41 | 0.52% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11500 | 57.98 | 929 | 914 | 182.6 |
| A | 15 | 236 | 11329 | 57.04 | 929 | 914 | 182.6 |
| A | 0 | 226 | 8253 | 40.19 | 929 | 914 | 182.6 |
| B | 3 | 64 | 62139 | 364.92 | 919 | 899 | 167.8 |
| B | 0 | 230 | 50776 | 297.21 | 919 | 899 | 167.8 |
| B | 0 | 197 | 29025 | 167.6 | 919 | 899 | 167.8 |
| C | 14 | 238 | 142158 | 711.39 | 869 | 876 | 198.6 |
| C | 0 | 10 | 23364 | 113.23 | 869 | 876 | 198.6 |
| C | 13 | 61 | 6137 | 26.49 | 869 | 876 | 198.6 |
| D | 1 | 52 | 840782 | 4024.87 | 885 | 860 | 208.7 |
| D | 7 | 238 | 104923 | 498.66 | 885 | 860 | 208.7 |
| D | 11 | 176 | 73529 | 348.22 | 885 | 860 | 208.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

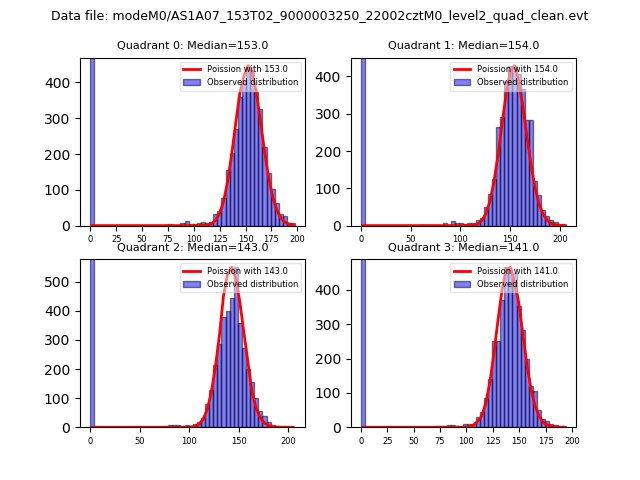

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

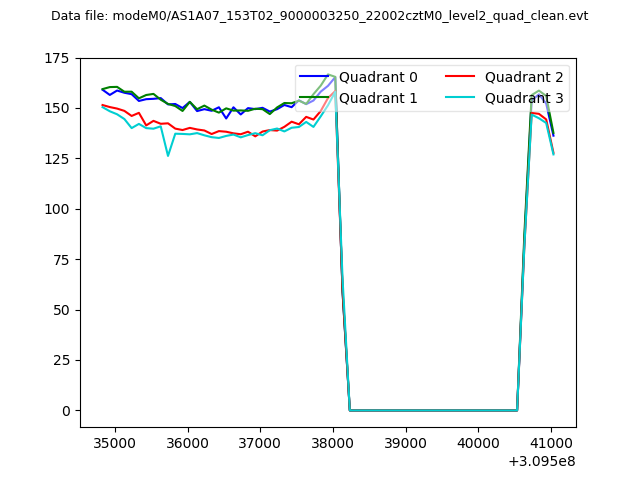

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

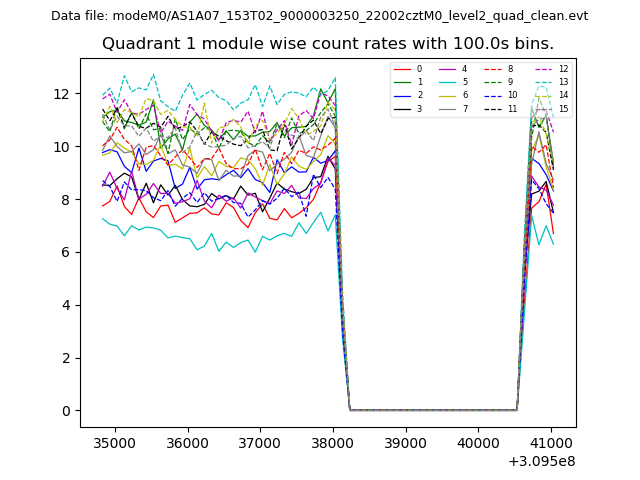

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

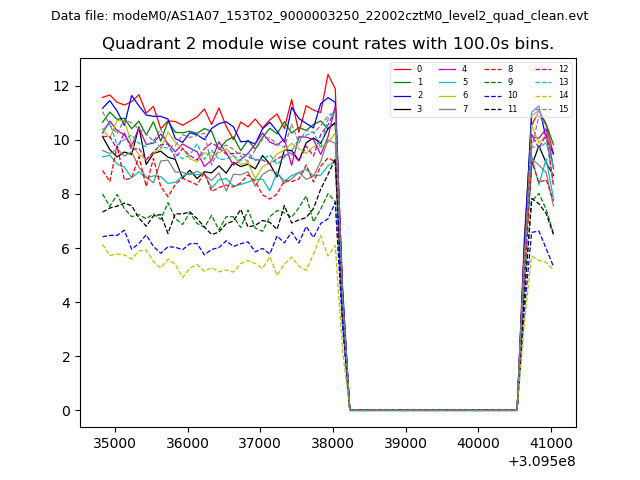

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

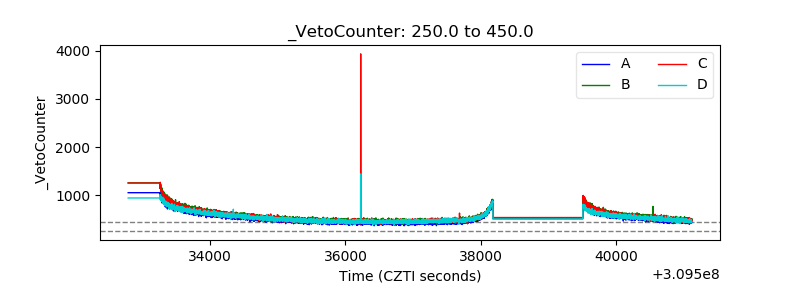

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

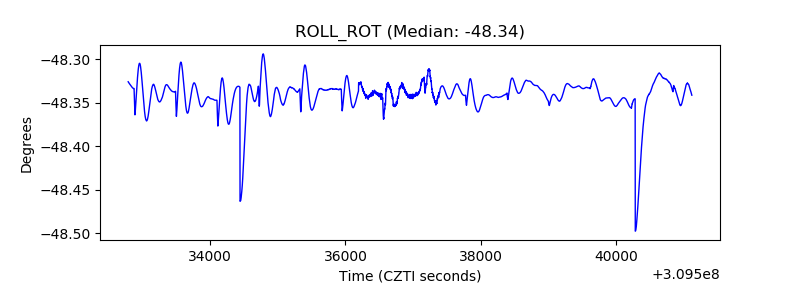

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
