| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_153T02_9000003250_22003cztM0_level2.evt | modeM0/AS1A07_153T02_9000003250_22003cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,164,480 | 100,405,440 |
| Size | 450.3 MB | 95.8 MB |
| Events in quadrant A | 3,258,097 | 667,571 |
| Events in quadrant B | 3,461,928 | 678,135 |
| Events in quadrant C | 3,233,033 | 631,775 |
| Events in quadrant D | 3,915,256 | 620,145 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13569 | 1 |
| B | 0 | 14221 | 1 |
| C | 0 | 13493 | 1 |
| D | 0 | 16001 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6347 | 79 | 1.244683% |
| B | 6347 | 128 | 2.016701% |
| C | 6347 | 102 | 1.607058% |
| D | 6348 | 99 | 1.559546% |

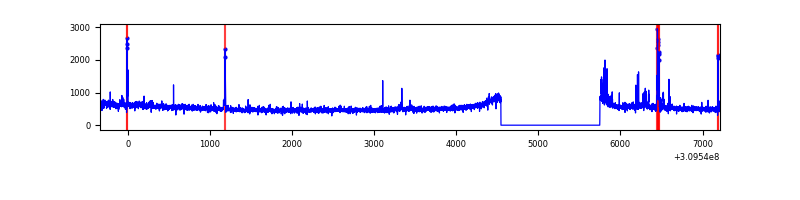

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7552 | 6347 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7552 | 6347 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7552 | 6347 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7553 | 6349 | 40 | 40 | 0.53% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11150 | 61.88 | 843 | 827 | 166.8 |
| A | 0 | 226 | 7275 | 38.65 | 843 | 827 | 166.8 |
| A | 3 | 137 | 6595 | 34.58 | 843 | 827 | 166.8 |
| B | 3 | 64 | 68890 | 432.84 | 838 | 819 | 157.3 |
| B | 0 | 190 | 65877 | 413.68 | 838 | 819 | 157.3 |
| B | 0 | 230 | 19306 | 117.55 | 838 | 819 | 157.3 |
| C | 14 | 238 | 127774 | 696.27 | 793 | 800 | 182.4 |
| C | 0 | 10 | 5988 | 28.45 | 793 | 800 | 182.4 |
| C | 13 | 61 | 5589 | 26.26 | 793 | 800 | 182.4 |
| D | 7 | 238 | 599576 | 3116.63 | 804 | 781 | 192.1 |
| D | 1 | 52 | 109063 | 563.59 | 804 | 781 | 192.1 |
| D | 11 | 176 | 75353 | 388.13 | 804 | 781 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

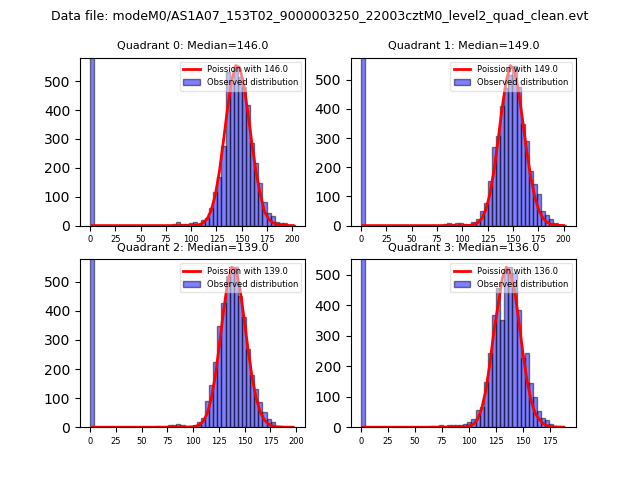

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

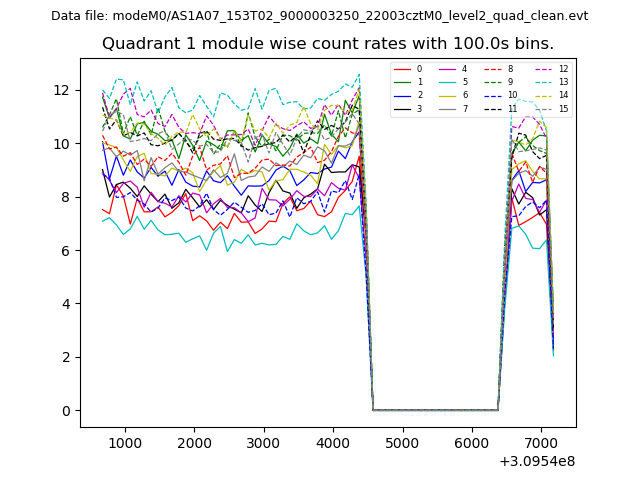

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

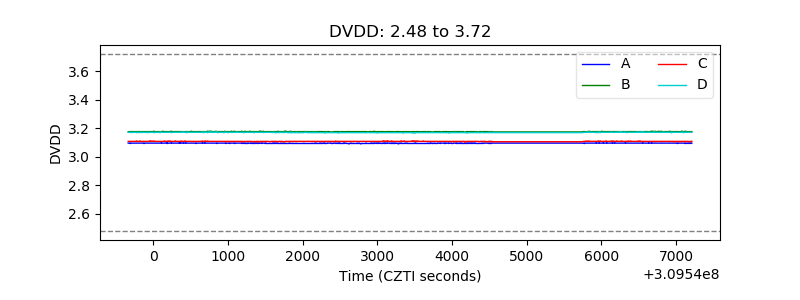

| D_VDD |  |

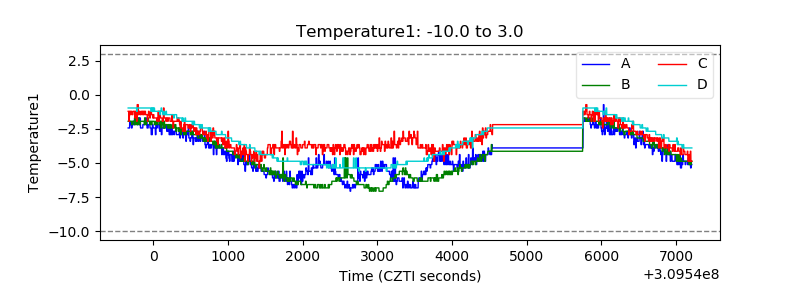

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

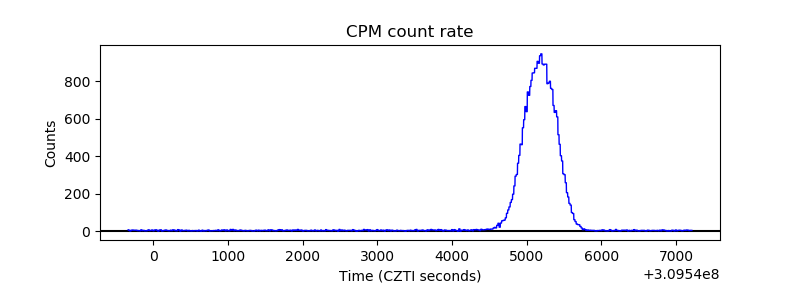

| _CPM_Rate |  |

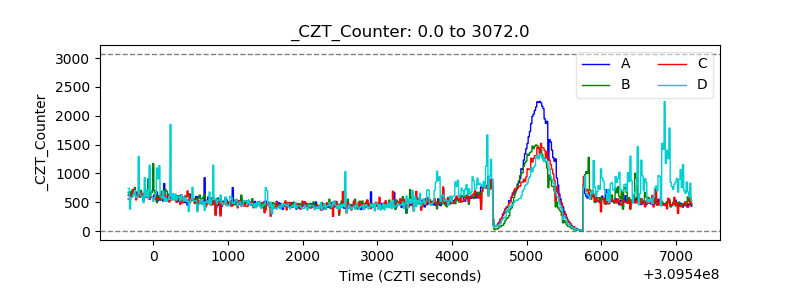

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

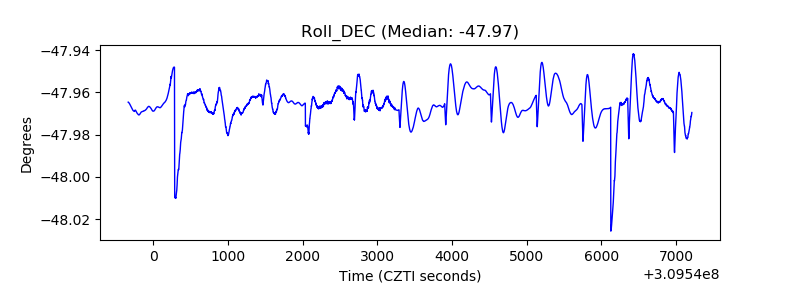

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
