| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_153T02_9000003250_22014cztM0_level2.evt | modeM0/AS1A07_153T02_9000003250_22014cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,776,640 | 82,111,680 |
| Size | 461.4 MB | 78.3 MB |
| Events in quadrant A | 3,364,262 | 530,532 |
| Events in quadrant B | 3,644,397 | 527,365 |
| Events in quadrant C | 3,348,509 | 504,610 |
| Events in quadrant D | 3,874,945 | 492,771 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14033 | 2 |
| B | 0 | 14804 | 2 |
| C | 0 | 13985 | 2 |
| D | 0 | 15776 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6173 | 101 | 1.636157% |
| B | 6173 | 218 | 3.531508% |
| C | 6173 | 151 | 2.446136% |
| D | 6173 | 189 | 3.061720% |

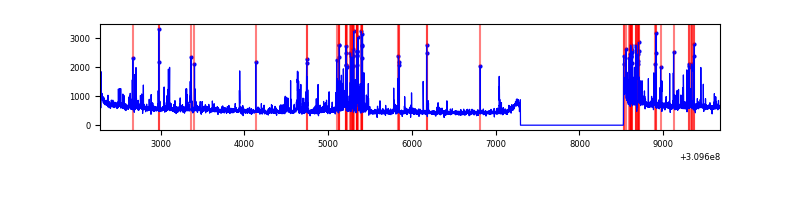

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7403 | 6173 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7403 | 6173 | 105 | 105 | 1.42% | 1.70% |  |
| C | 7403 | 6173 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7403 | 6173 | 82 | 82 | 1.11% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 28925 | 164.04 | 864 | 849 | 171.2 |
| A | 13 | 254 | 9979 | 53.34 | 864 | 849 | 171.2 |
| A | 0 | 226 | 7459 | 38.62 | 864 | 849 | 171.2 |
| B | 3 | 64 | 289746 | 1877.55 | 840 | 821 | 153.9 |
| B | 0 | 230 | 38360 | 243.94 | 840 | 821 | 153.9 |
| B | 12 | 111 | 17683 | 109.58 | 840 | 821 | 153.9 |
| C | 14 | 238 | 133346 | 704.59 | 820 | 827 | 188.1 |
| C | 0 | 10 | 16140 | 81.42 | 820 | 827 | 188.1 |
| C | 13 | 61 | 5534 | 25.03 | 820 | 827 | 188.1 |
| D | 7 | 238 | 236340 | 1194.29 | 832 | 811 | 197.2 |
| D | 1 | 52 | 186558 | 941.86 | 832 | 811 | 197.2 |
| D | 13 | 172 | 102241 | 514.32 | 832 | 811 | 197.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

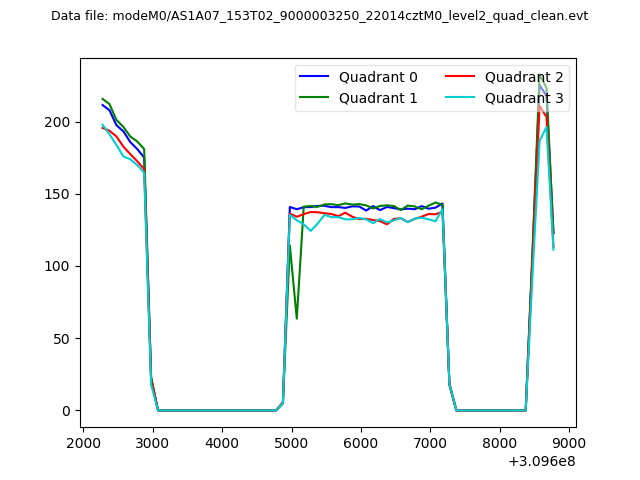

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

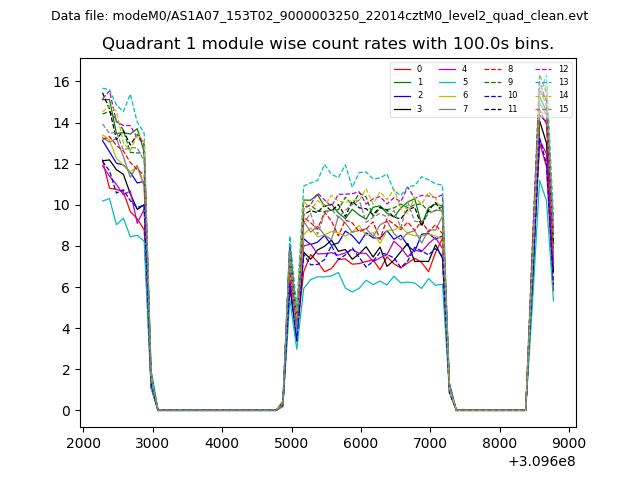

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

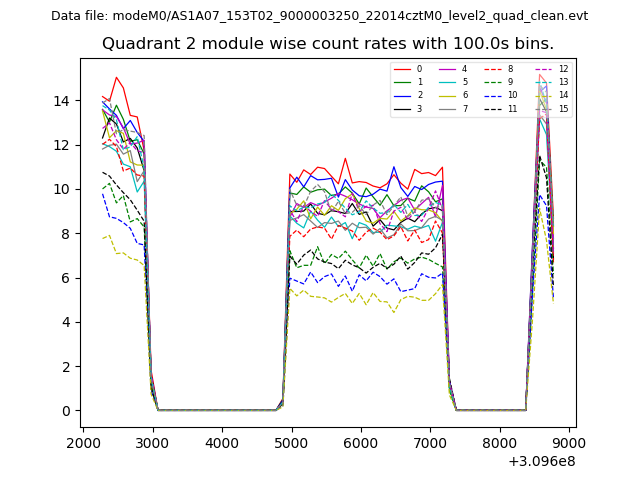

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

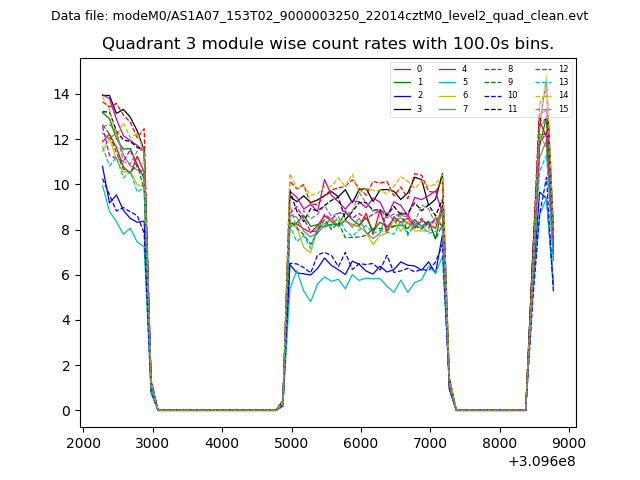

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

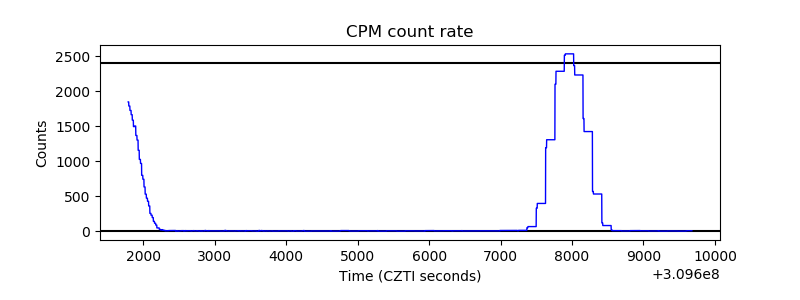

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

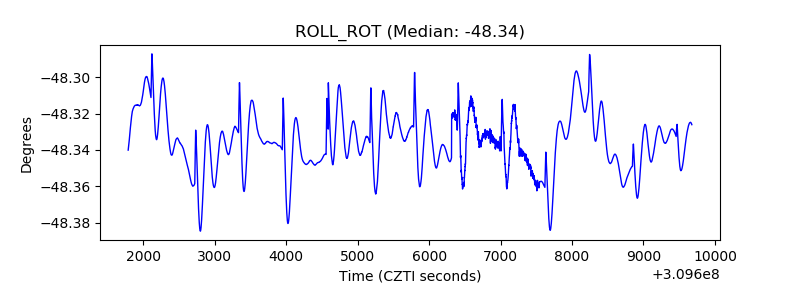

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

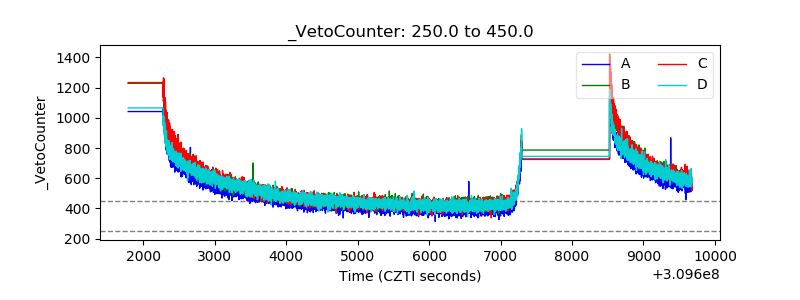

| Veto Counter |  |
