| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_153T02_9000003250_22015cztM0_level2.evt | modeM0/AS1A07_153T02_9000003250_22015cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,476,480 | 74,160,000 |
| Size | 513.5 MB | 70.7 MB |
| Events in quadrant A | 3,768,201 | 460,521 |
| Events in quadrant B | 3,812,832 | 465,747 |
| Events in quadrant C | 3,656,101 | 439,295 |
| Events in quadrant D | 4,626,022 | 422,528 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15398 | 2 |
| B | 0 | 15631 | 2 |
| C | 0 | 15089 | 2 |
| D | 0 | 18364 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6563 | 135 | 2.056986% |
| B | 6563 | 143 | 2.178882% |
| C | 6563 | 175 | 2.666464% |
| D | 6562 | 340 | 5.181347% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7858 | 6563 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7858 | 6563 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7858 | 6563 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7857 | 6562 | 201 | 201 | 2.56% | 3.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 65955 | 349.83 | 952 | 937 | 185.9 |
| A | 3 | 1 | 34511 | 180.64 | 952 | 937 | 185.9 |
| A | 13 | 254 | 11179 | 55.1 | 952 | 937 | 185.9 |
| B | 3 | 64 | 56911 | 328.18 | 937 | 916 | 170.6 |
| B | 0 | 230 | 36755 | 210.05 | 937 | 916 | 170.6 |
| B | 0 | 190 | 29150 | 165.48 | 937 | 916 | 170.6 |
| C | 14 | 238 | 145947 | 707.12 | 896 | 905 | 205.1 |
| C | 0 | 10 | 9773 | 43.23 | 896 | 905 | 205.1 |
| C | 3 | 233 | 9172 | 40.3 | 896 | 905 | 205.1 |
| D | 7 | 238 | 679822 | 3166.42 | 905 | 880 | 214.4 |
| D | 1 | 52 | 345833 | 1608.78 | 905 | 880 | 214.4 |
| D | 13 | 172 | 43617 | 199.32 | 905 | 880 | 214.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

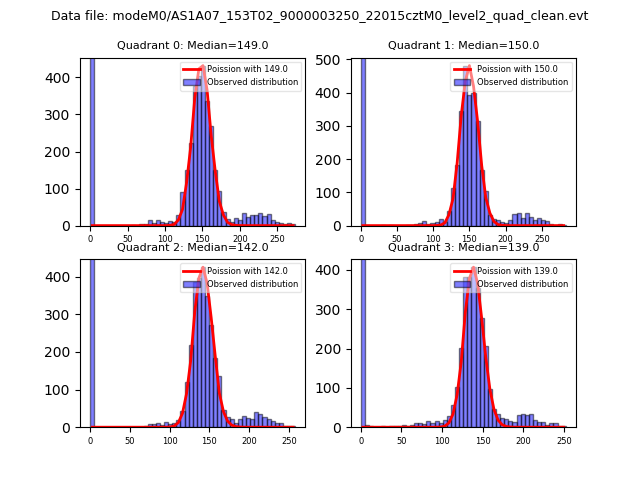

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

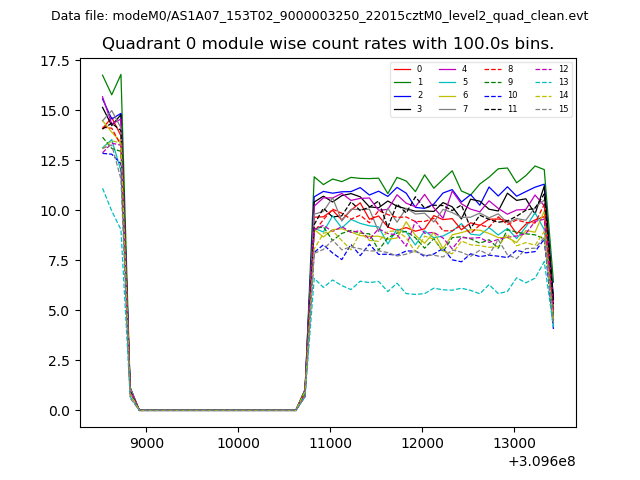

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

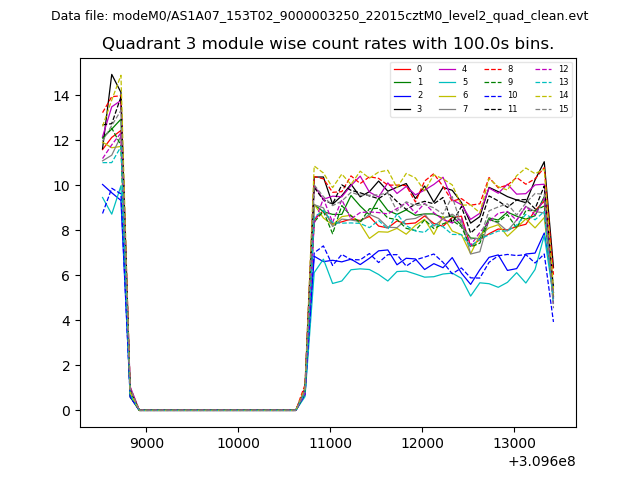

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

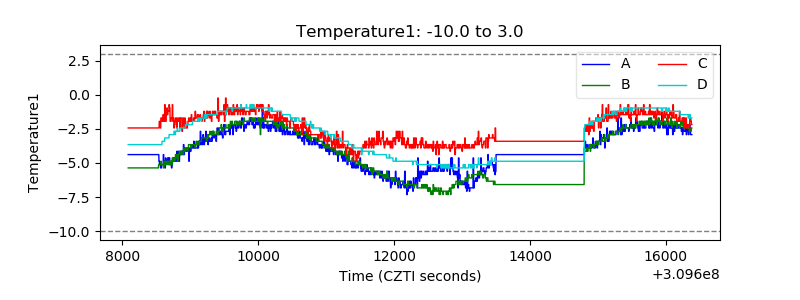

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
