| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_091T07_9000003254_22031cztM0_level2.evt | modeM0/AS1A07_091T07_9000003254_22031cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,580,480 | 78,304,320 |
| Size | 534.6 MB | 74.7 MB |
| Events in quadrant A | 3,435,438 | 495,091 |
| Events in quadrant B | 3,505,147 | 497,236 |
| Events in quadrant C | 3,439,196 | 481,029 |
| Events in quadrant D | 6,163,883 | 451,519 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14184 | 2 |
| B | 0 | 14332 | 2 |
| C | 0 | 13990 | 2 |
| D | 0 | 22541 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6393 | 93 | 1.454716% |
| B | 6394 | 98 | 1.532687% |
| C | 6394 | 125 | 1.954958% |
| D | 6394 | 1029 | 16.093212% |

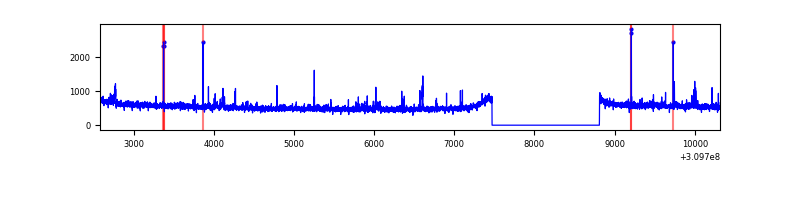

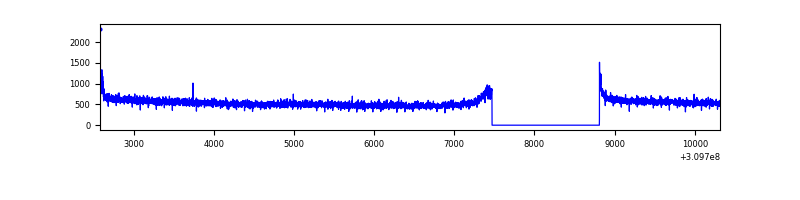

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7733 | 6393 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7734 | 6394 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7734 | 6394 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7734 | 6394 | 895 | 895 | 11.57% | 14.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 31081 | 172.86 | 882 | 867 | 174.8 |
| A | 13 | 254 | 10921 | 57.52 | 882 | 867 | 174.8 |
| A | 0 | 226 | 7905 | 40.27 | 882 | 867 | 174.8 |
| B | 0 | 230 | 36335 | 223.19 | 866 | 847 | 159.0 |
| B | 3 | 64 | 35953 | 220.78 | 866 | 847 | 159.0 |
| B | 0 | 190 | 34119 | 209.25 | 866 | 847 | 159.0 |
| C | 14 | 238 | 136184 | 701.86 | 841 | 847 | 192.8 |
| C | 0 | 10 | 21524 | 107.23 | 841 | 847 | 192.8 |
| C | 13 | 61 | 5785 | 25.61 | 841 | 847 | 192.8 |
| D | 1 | 52 | 2555656 | 12880.0 | 810 | 785 | 198.4 |
| D | 11 | 176 | 238893 | 1200.39 | 810 | 785 | 198.4 |
| D | 12 | 233 | 201157 | 1010.15 | 810 | 785 | 198.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

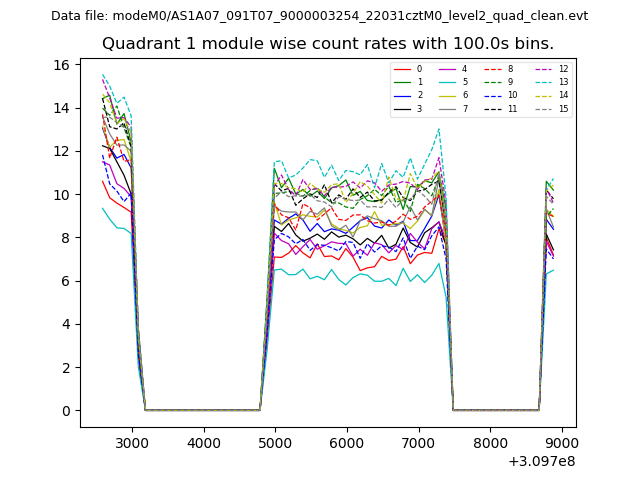

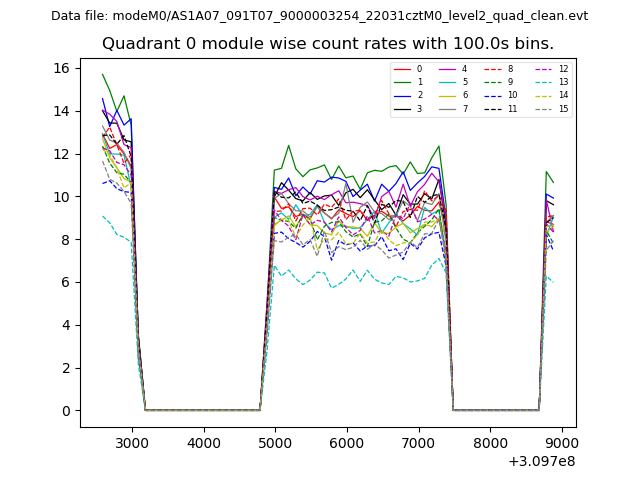

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

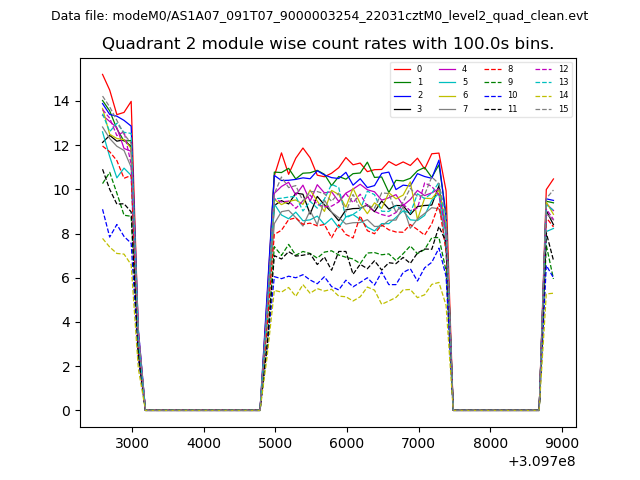

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

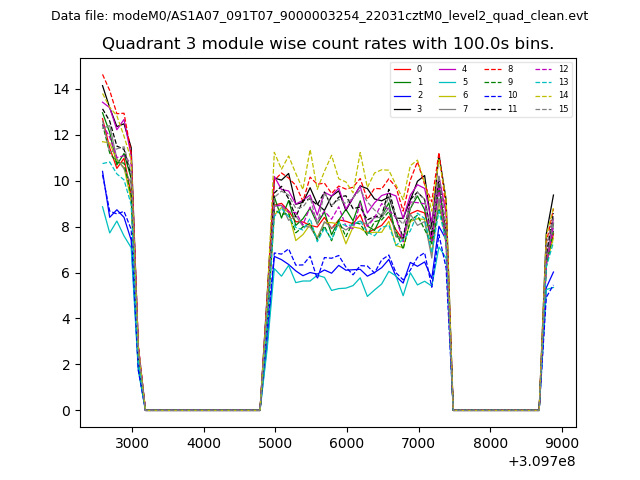

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

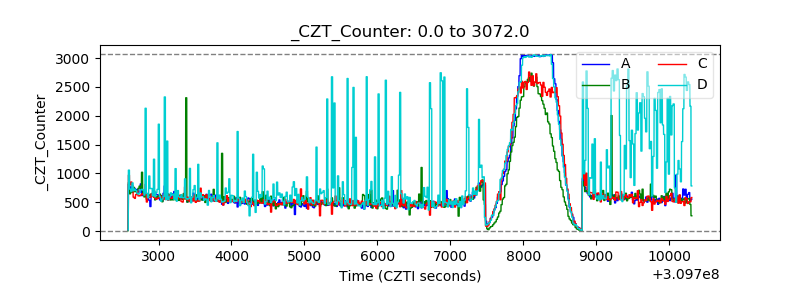

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

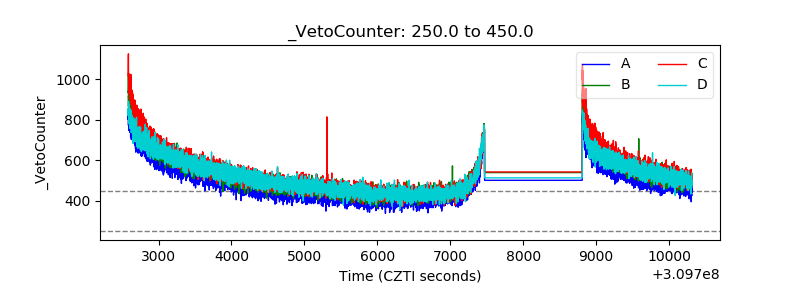

| Veto Counter |  |
