| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_149T01_9000003266_22062cztM0_level2.evt | modeM0/AS1A07_149T01_9000003266_22062cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,349,120 | 114,739,200 |
| Size | 454.3 MB | 109.4 MB |
| Events in quadrant A | 3,302,599 | 764,196 |
| Events in quadrant B | 3,413,429 | 770,987 |
| Events in quadrant C | 3,347,518 | 735,617 |
| Events in quadrant D | 3,893,751 | 723,624 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14285 | 2 |
| B | 0 | 14519 | 2 |
| C | 0 | 14435 | 2 |
| D | 0 | 16362 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6900 | 83 | 1.202899% |
| B | 6900 | 126 | 1.826087% |
| C | 6899 | 140 | 2.029280% |
| D | 6899 | 149 | 2.159733% |

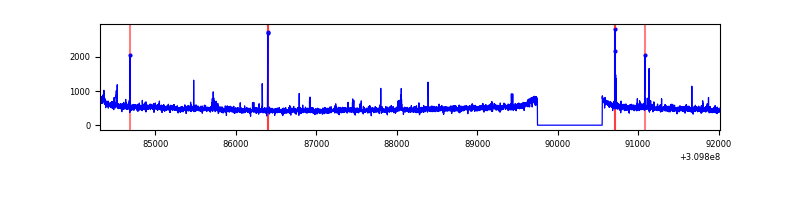

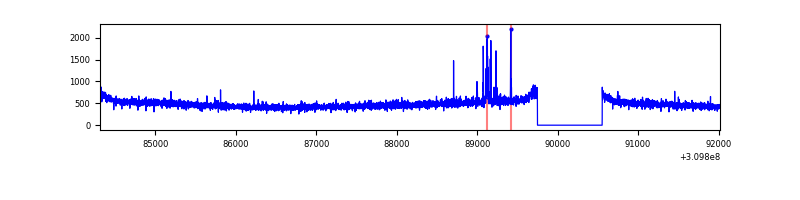

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7704 | 6899 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7704 | 6899 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7703 | 6898 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7703 | 6898 | 88 | 88 | 1.14% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10822 | 58.86 | 854 | 837 | 169.6 |
| A | 0 | 226 | 7401 | 38.69 | 854 | 837 | 169.6 |
| A | 3 | 137 | 7023 | 36.46 | 854 | 837 | 169.6 |
| B | 3 | 64 | 37829 | 233.25 | 849 | 830 | 158.6 |
| B | 12 | 111 | 18605 | 112.06 | 849 | 830 | 158.6 |
| B | 0 | 190 | 17117 | 102.68 | 849 | 830 | 158.6 |
| C | 14 | 238 | 129730 | 687.54 | 811 | 816 | 187.5 |
| C | 10 | 22 | 52593 | 276.14 | 811 | 816 | 187.5 |
| C | 13 | 61 | 5810 | 26.63 | 811 | 816 | 187.5 |
| D | 1 | 52 | 441449 | 2229.27 | 824 | 800 | 197.7 |
| D | 13 | 172 | 176799 | 890.39 | 824 | 800 | 197.7 |
| D | 13 | 104 | 76136 | 381.13 | 824 | 800 | 197.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

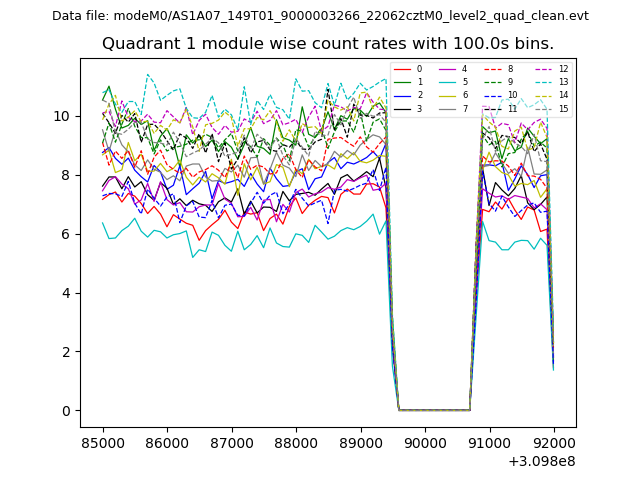

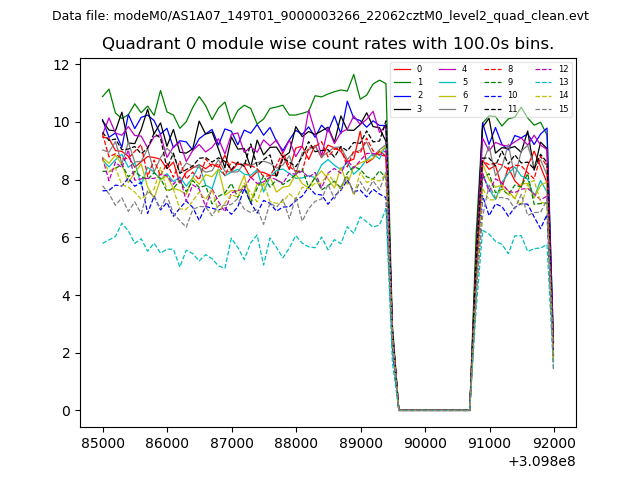

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

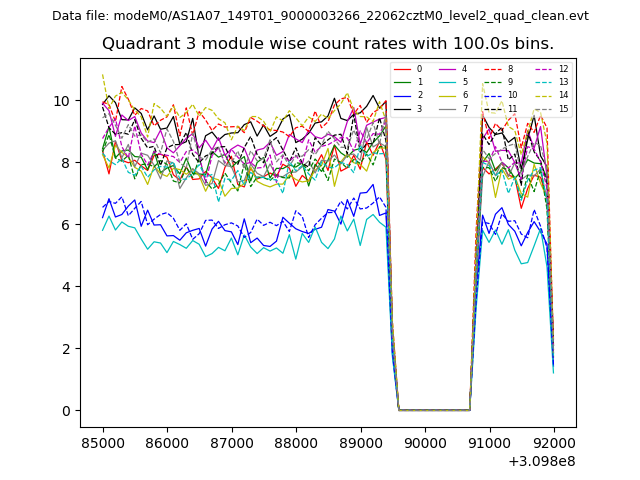

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

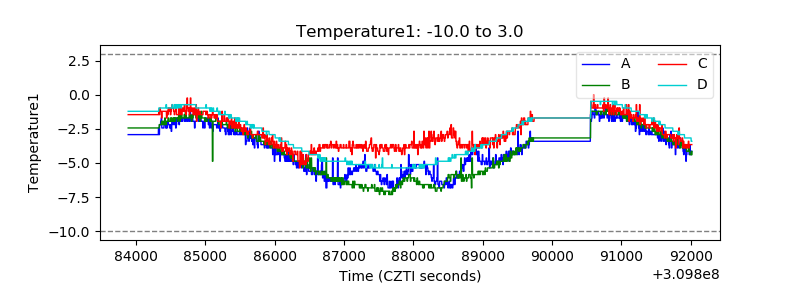

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

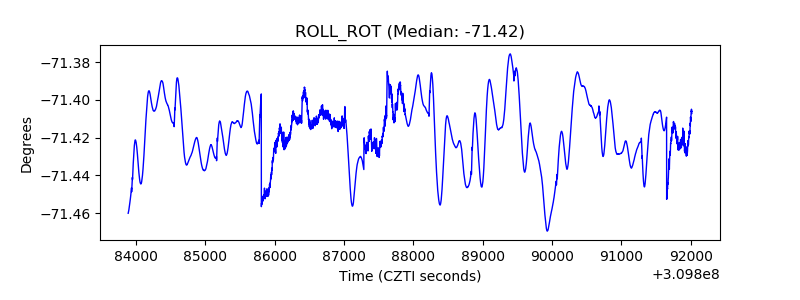

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

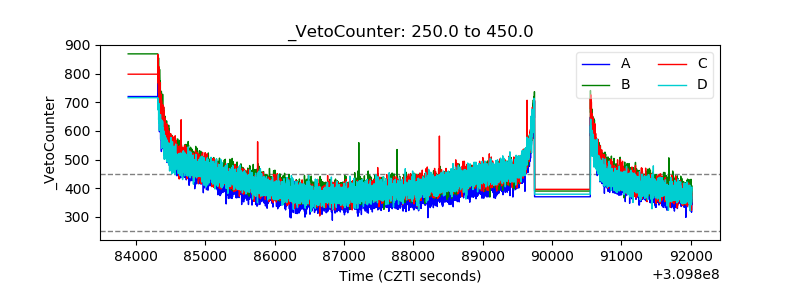

| Veto Counter |  |
