| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T05_9000003274_22093cztM0_level2.evt | modeM0/AS1A07_007T05_9000003274_22093cztM0_level2_quad_clean.evt |
| Size (bytes) | 424,730,880 | 69,632,640 |
| Size | 405.1 MB | 66.4 MB |
| Events in quadrant A | 2,615,909 | 439,858 |
| Events in quadrant B | 2,718,288 | 445,730 |
| Events in quadrant C | 2,680,796 | 428,342 |
| Events in quadrant D | 4,474,313 | 409,513 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11477 | 1 |
| B | 0 | 11683 | 1 |
| C | 0 | 11522 | 1 |
| D | 0 | 17190 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5498 | 48 | 0.873045% |
| B | 5498 | 73 | 1.327756% |
| C | 5498 | 87 | 1.582394% |
| D | 5498 | 303 | 5.511095% |

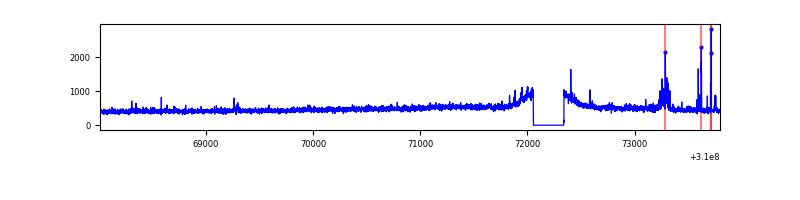

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5783 | 5499 | 2 | 2 | 0.03% | 0.04% |  |
| B | 5783 | 5499 | 4 | 4 | 0.07% | 0.07% |  |
| C | 5783 | 5499 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5783 | 5499 | 225 | 225 | 3.89% | 4.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 18080 | 128.34 | 673 | 659 | 135.7 |
| A | 13 | 254 | 9248 | 63.28 | 673 | 659 | 135.7 |
| A | 0 | 226 | 5786 | 37.77 | 673 | 659 | 135.7 |
| B | 0 | 190 | 45784 | 352.31 | 668 | 651 | 128.1 |
| B | 3 | 64 | 31517 | 240.94 | 668 | 651 | 128.1 |
| B | 12 | 111 | 15794 | 118.21 | 668 | 651 | 128.1 |
| C | 14 | 238 | 100043 | 648.77 | 645 | 648 | 153.2 |
| C | 0 | 239 | 59816 | 386.2 | 645 | 648 | 153.2 |
| C | 13 | 61 | 4497 | 25.12 | 645 | 648 | 153.2 |
| D | 1 | 52 | 1858257 | 11844.34 | 640 | 620 | 156.8 |
| D | 13 | 172 | 49528 | 311.84 | 640 | 620 | 156.8 |
| D | 2 | 16 | 46235 | 290.84 | 640 | 620 | 156.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

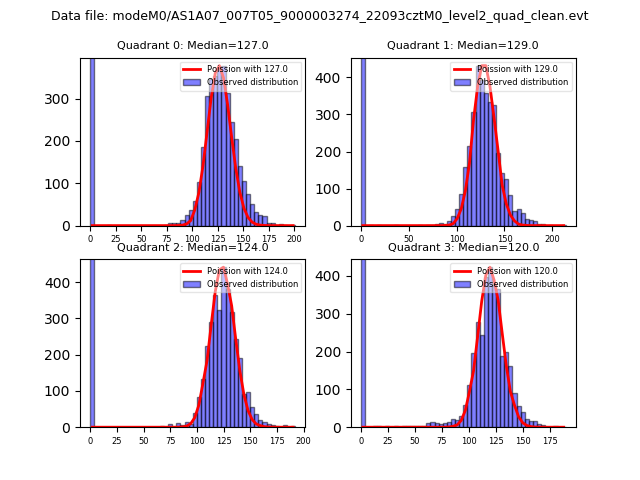

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

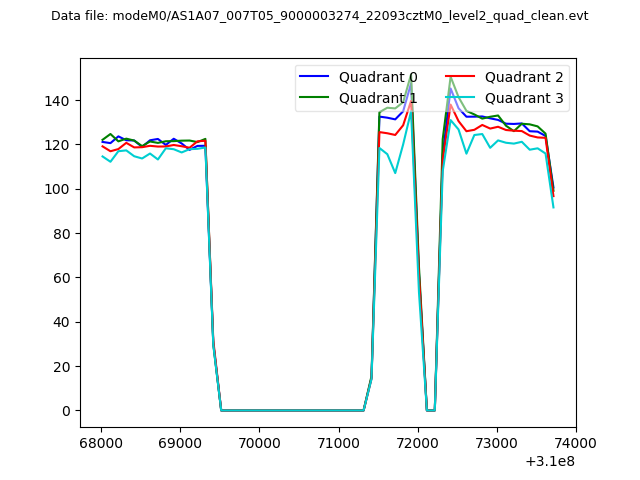

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

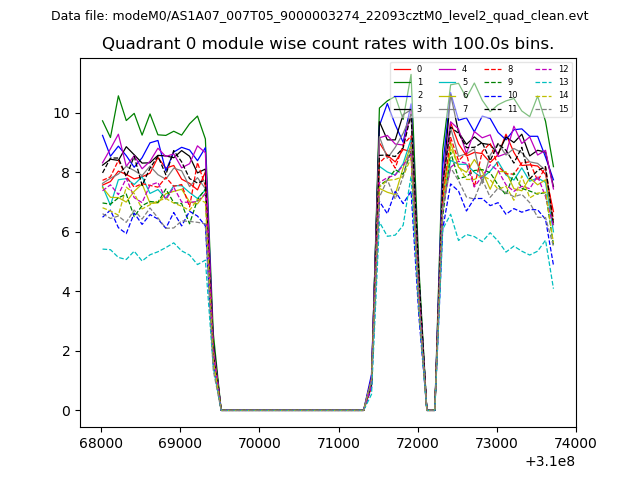

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

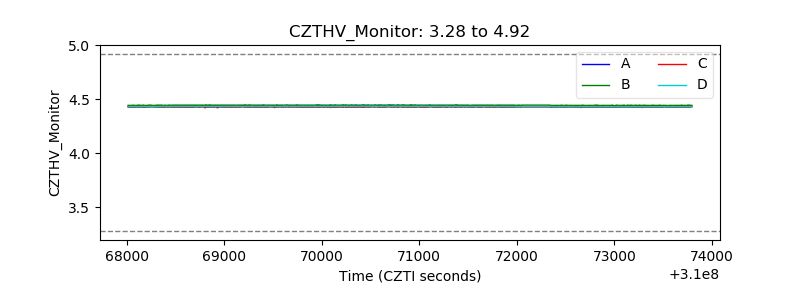

| CZT HV Monitor |  |

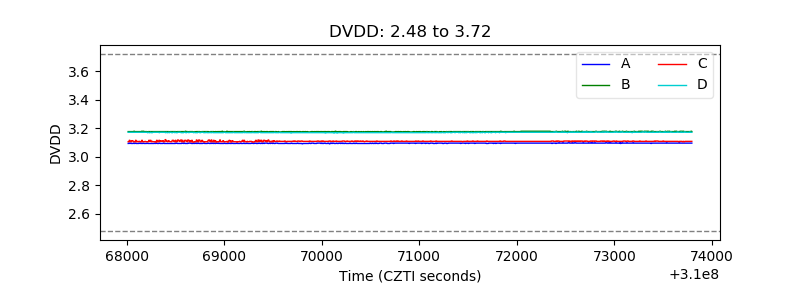

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

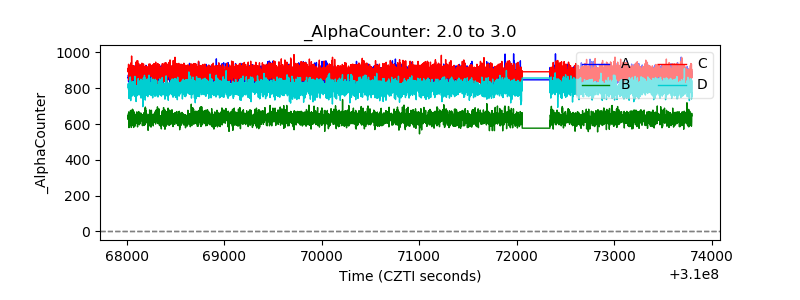

| Alpha Counter |  |

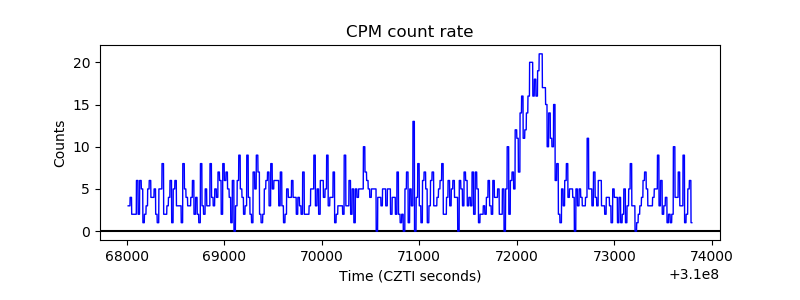

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
