| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T05_9000003274_22097cztM0_level2.evt | modeM0/AS1A07_007T05_9000003274_22097cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,301,440 | 100,215,360 |
| Size | 495.2 MB | 95.6 MB |
| Events in quadrant A | 3,417,902 | 646,958 |
| Events in quadrant B | 3,499,904 | 656,898 |
| Events in quadrant C | 3,471,223 | 630,554 |
| Events in quadrant D | 4,845,954 | 595,766 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14913 | 2 |
| B | 0 | 15026 | 2 |
| C | 0 | 14956 | 2 |
| D | 0 | 19624 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7259 | 40 | 0.551040% |
| B | 7259 | 35 | 0.482160% |
| C | 7259 | 74 | 1.019424% |
| D | 7260 | 396 | 5.454545% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8864 | 7261 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8864 | 7261 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8864 | 7261 | 4 | 4 | 0.05% | 0.06% |  |
| D | 8865 | 7262 | 308 | 308 | 3.47% | 4.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 22947 | 125.88 | 875 | 857 | 175.5 |
| A | 15 | 174 | 21918 | 120.02 | 875 | 857 | 175.5 |
| A | 13 | 254 | 11903 | 62.95 | 875 | 857 | 175.5 |
| B | 0 | 219 | 20708 | 117.98 | 876 | 852 | 168.3 |
| B | 12 | 111 | 20497 | 116.73 | 876 | 852 | 168.3 |
| B | 0 | 197 | 19179 | 108.9 | 876 | 852 | 168.3 |
| C | 14 | 238 | 132671 | 662.41 | 845 | 851 | 199.0 |
| C | 10 | 22 | 31003 | 151.52 | 845 | 851 | 199.0 |
| C | 0 | 239 | 10751 | 49.75 | 845 | 851 | 199.0 |
| D | 1 | 52 | 1245620 | 6047.67 | 838 | 812 | 205.8 |
| D | 12 | 33 | 109083 | 526.01 | 838 | 812 | 205.8 |
| D | 12 | 233 | 104329 | 502.92 | 838 | 812 | 205.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

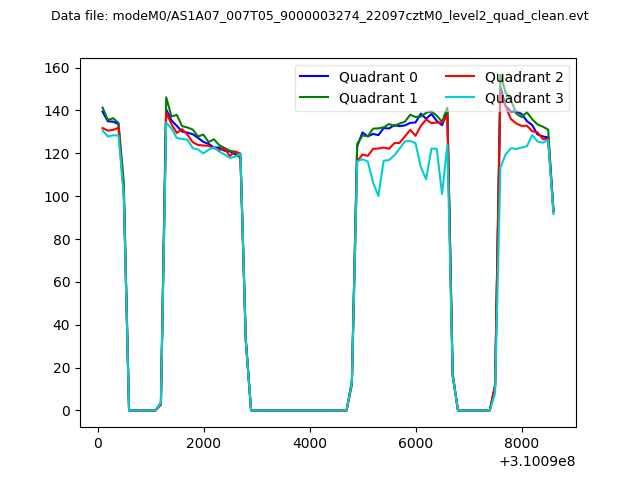

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

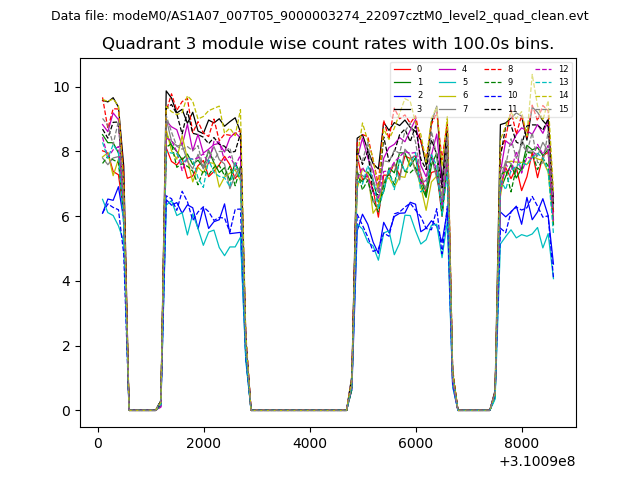

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

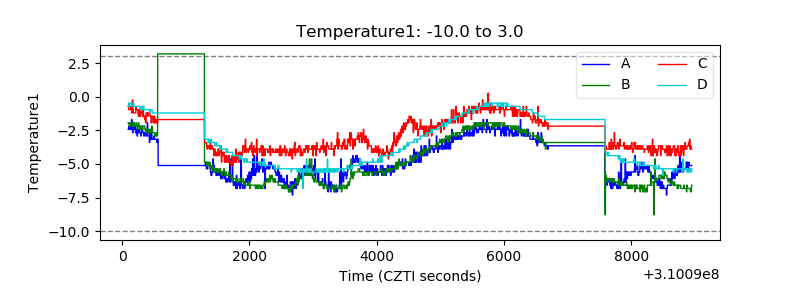

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

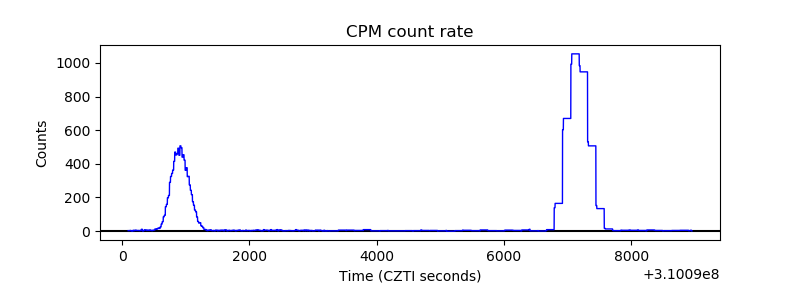

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

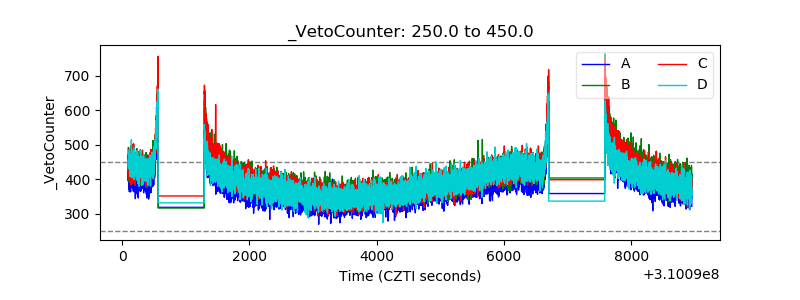

| Veto Counter |  |
