| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T05_9000003274_22101cztM0_level2.evt | modeM0/AS1A07_007T05_9000003274_22101cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,979,200 | 69,445,440 |
| Size | 447.3 MB | 66.2 MB |
| Events in quadrant A | 3,385,673 | 424,311 |
| Events in quadrant B | 3,432,286 | 431,039 |
| Events in quadrant C | 3,345,563 | 403,274 |
| Events in quadrant D | 3,603,878 | 396,490 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13880 | 2 |
| B | 0 | 14049 | 2 |
| C | 0 | 13732 | 2 |
| D | 0 | 14672 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6417 | 38 | 0.592177% |
| B | 6417 | 60 | 0.935016% |
| C | 6417 | 62 | 0.966184% |
| D | 6417 | 38 | 0.592177% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7677 | 6418 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7677 | 6418 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7677 | 6418 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7677 | 6418 | 7 | 7 | 0.09% | 0.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 9900 | 52.15 | 877 | 862 | 173.3 |
| A | 13 | 254 | 9506 | 49.88 | 877 | 862 | 173.3 |
| A | 0 | 226 | 7621 | 39.0 | 877 | 862 | 173.3 |
| B | 12 | 111 | 19168 | 112.47 | 872 | 852 | 162.9 |
| B | 0 | 230 | 18608 | 109.03 | 872 | 852 | 162.9 |
| B | 11 | 111 | 16991 | 99.1 | 872 | 852 | 162.9 |
| C | 14 | 238 | 132647 | 697.28 | 823 | 832 | 189.0 |
| C | 13 | 61 | 5888 | 26.75 | 823 | 832 | 189.0 |
| C | 0 | 239 | 2671 | 9.73 | 823 | 832 | 189.0 |
| D | 1 | 52 | 116561 | 577.94 | 835 | 811 | 200.3 |
| D | 13 | 172 | 83808 | 414.41 | 835 | 811 | 200.3 |
| D | 2 | 16 | 61846 | 304.75 | 835 | 811 | 200.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

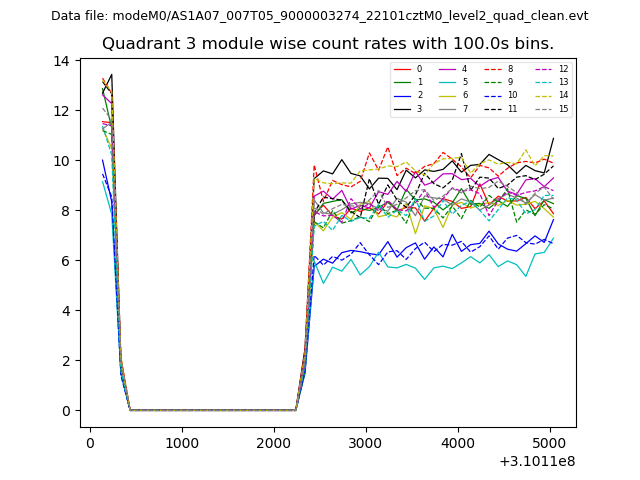

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

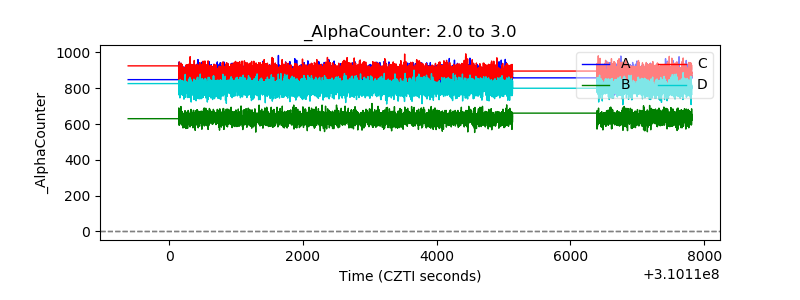

| Alpha Counter |  |
| _CPM_Rate |  |

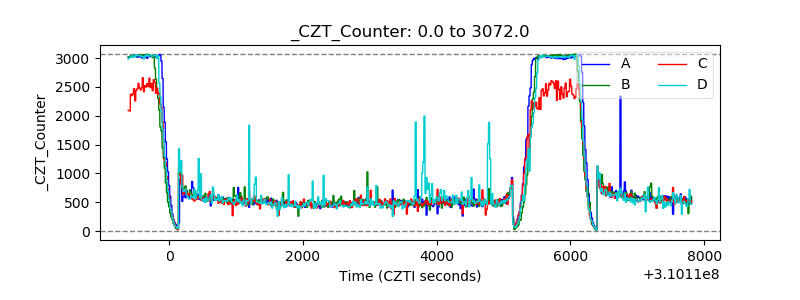

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

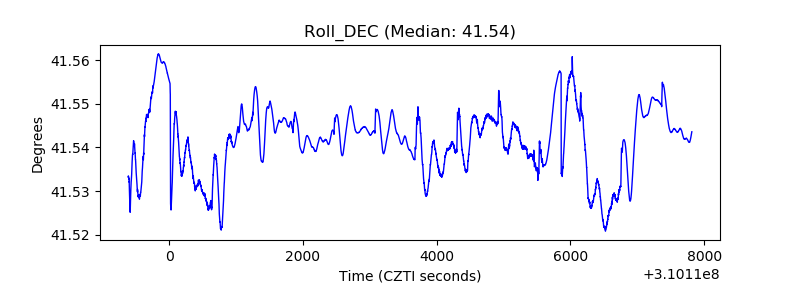

| _Roll_DEC |  |

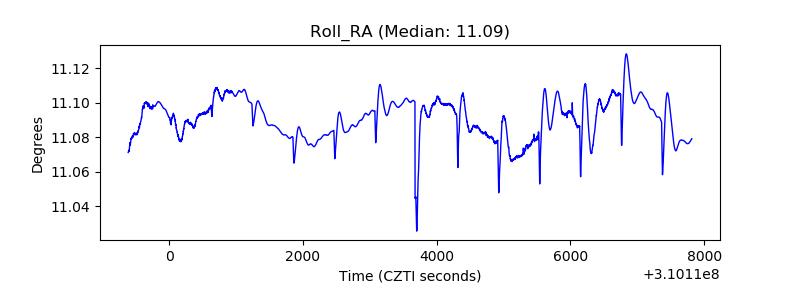

| _Roll_RA |  |
| Veto Counter |  |
