| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_146T01_9000003272_22088cztM0_level2.evt | modeM0/AS1T03_146T01_9000003272_22088cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,634,240 | 113,207,040 |
| Size | 446.0 MB | 108.0 MB |
| Events in quadrant A | 3,273,432 | 779,288 |
| Events in quadrant B | 3,399,343 | 789,912 |
| Events in quadrant C | 3,410,802 | 721,550 |
| Events in quadrant D | 3,672,219 | 719,597 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13501 | 1 |
| B | 0 | 13876 | 1 |
| C | 0 | 13907 | 1 |
| D | 0 | 14714 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5989 | 58 | 0.968442% |
| B | 5990 | 73 | 1.218698% |
| C | 5990 | 88 | 1.469115% |
| D | 5990 | 148 | 2.470785% |

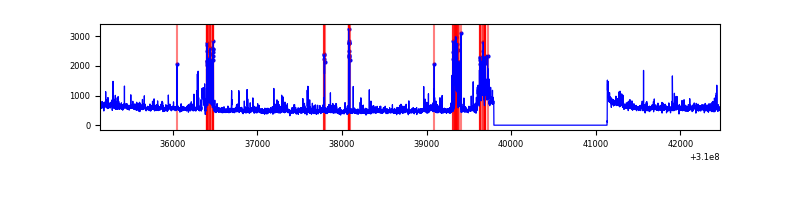

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

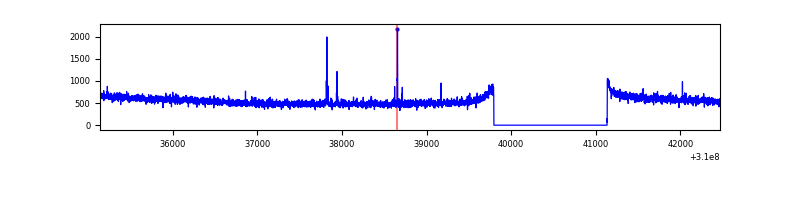

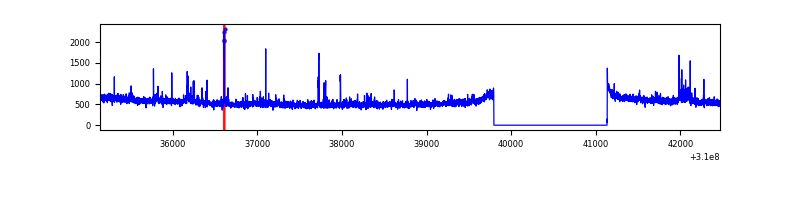

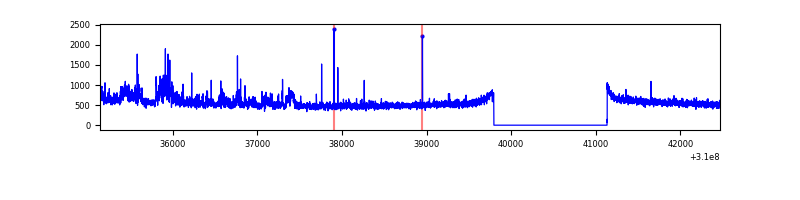

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7329 | 5990 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7330 | 5991 | 4 | 4 | 0.05% | 0.07% |  |
| C | 7330 | 5991 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7330 | 5991 | 70 | 70 | 0.95% | 1.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 24549 | 141.52 | 843 | 829 | 167.6 |
| A | 13 | 254 | 10129 | 55.49 | 843 | 829 | 167.6 |
| A | 0 | 226 | 7315 | 38.7 | 843 | 829 | 167.6 |
| B | 0 | 197 | 54804 | 347.76 | 831 | 813 | 155.3 |
| B | 3 | 64 | 22228 | 137.93 | 831 | 813 | 155.3 |
| B | 0 | 190 | 19943 | 123.22 | 831 | 813 | 155.3 |
| C | 0 | 239 | 251017 | 1384.64 | 777 | 786 | 180.7 |
| C | 14 | 238 | 126748 | 697.0 | 777 | 786 | 180.7 |
| C | 13 | 61 | 5477 | 25.96 | 777 | 786 | 180.7 |
| D | 1 | 52 | 491862 | 2550.47 | 800 | 779 | 192.5 |
| D | 2 | 16 | 38096 | 193.81 | 800 | 779 | 192.5 |
| D | 2 | 120 | 30422 | 153.95 | 800 | 779 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

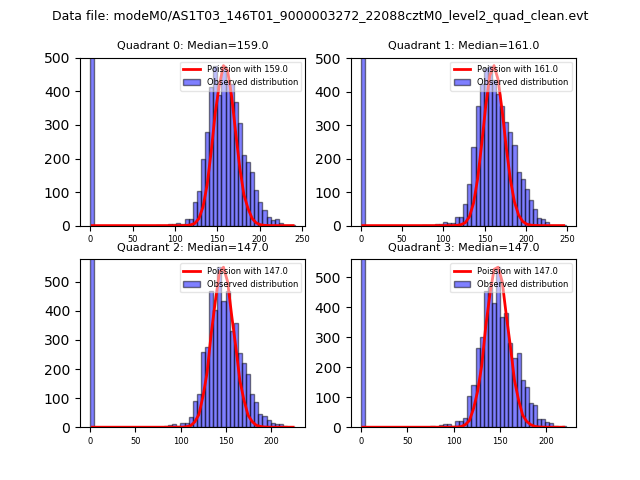

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

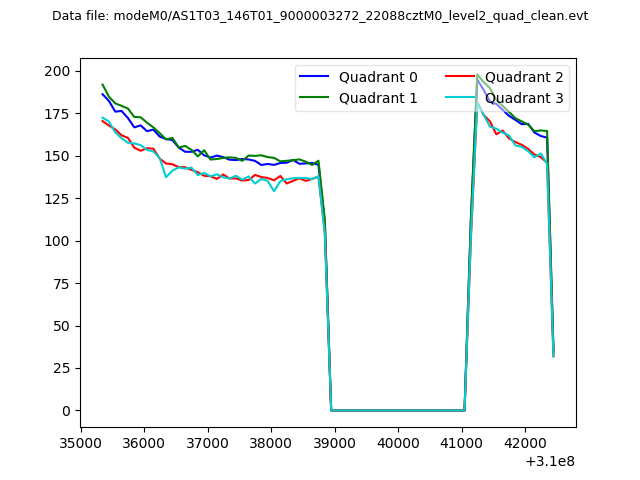

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

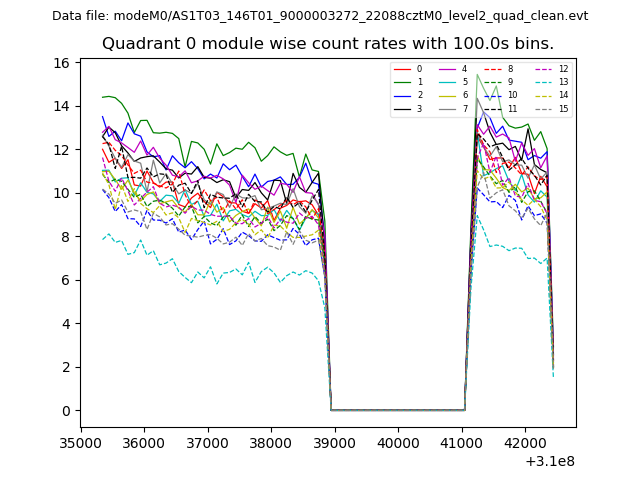

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

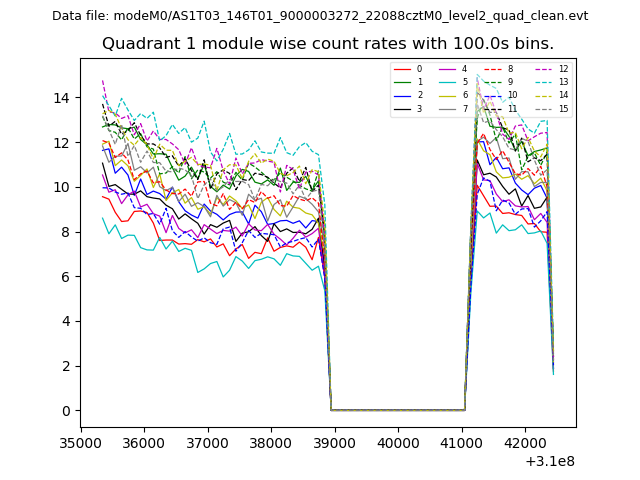

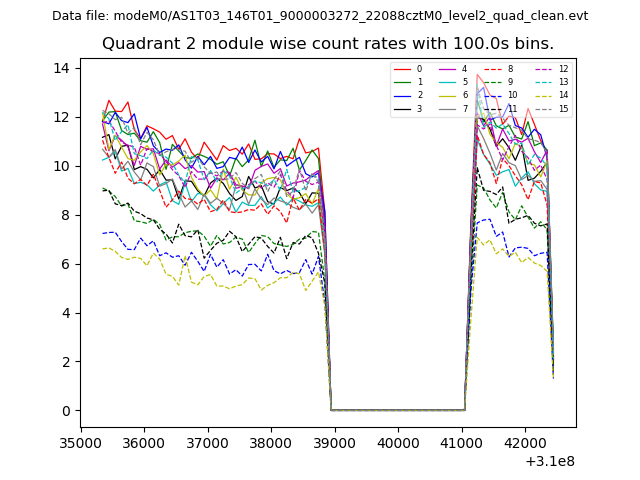

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

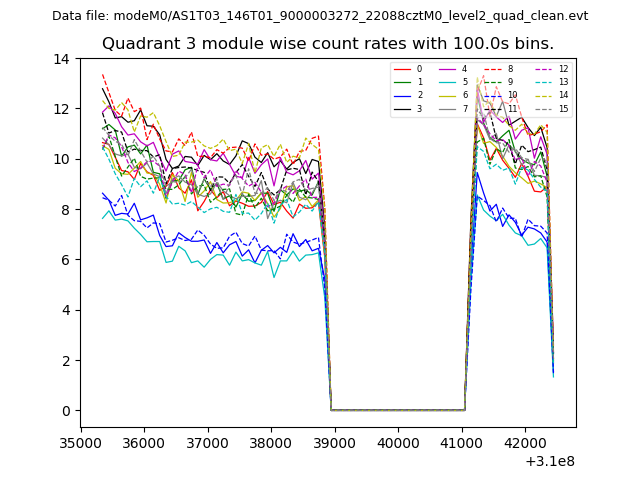

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

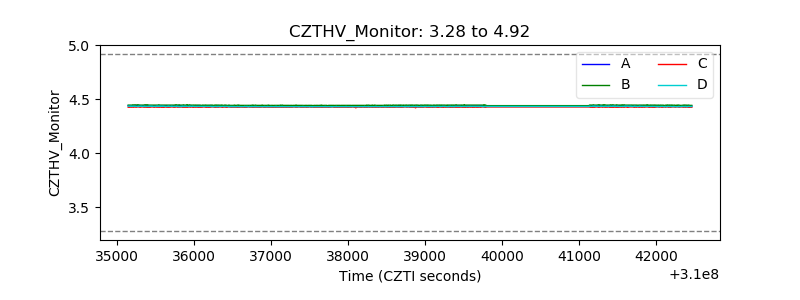

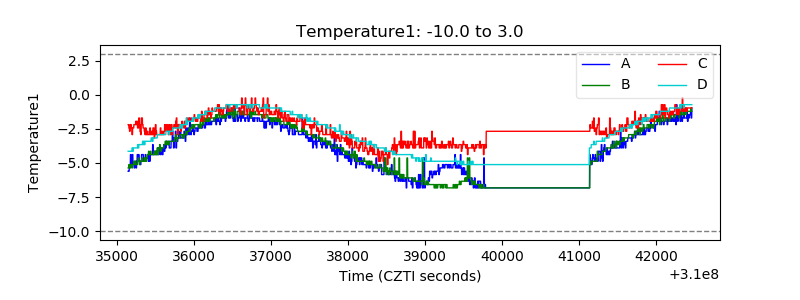

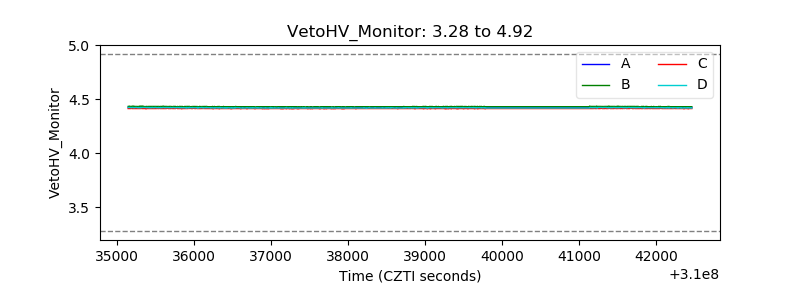

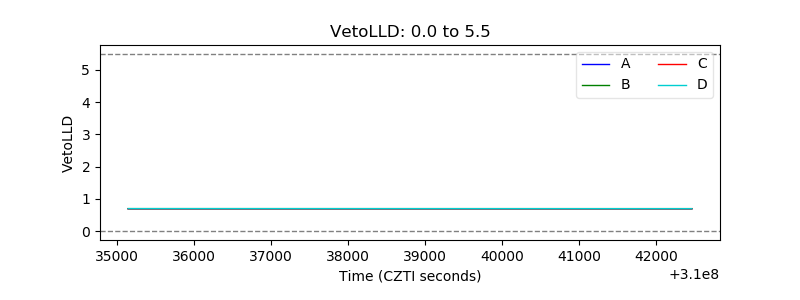

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

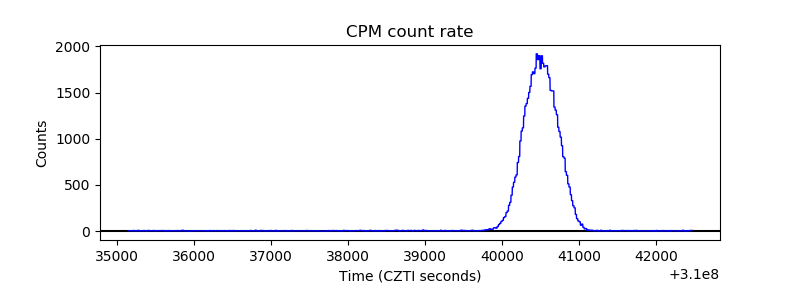

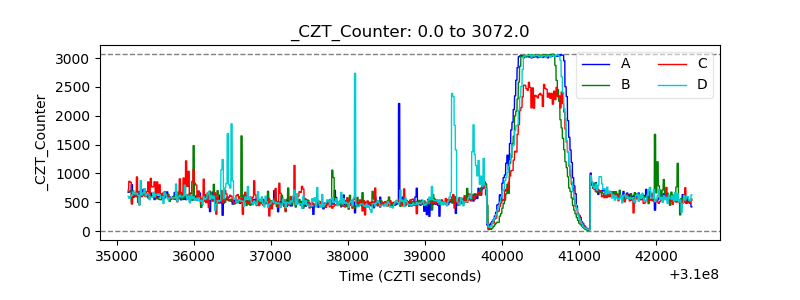

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

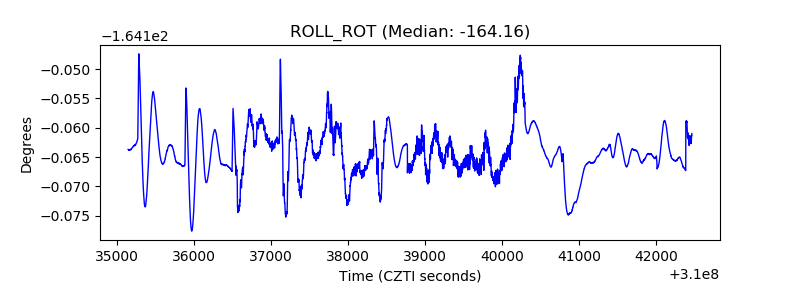

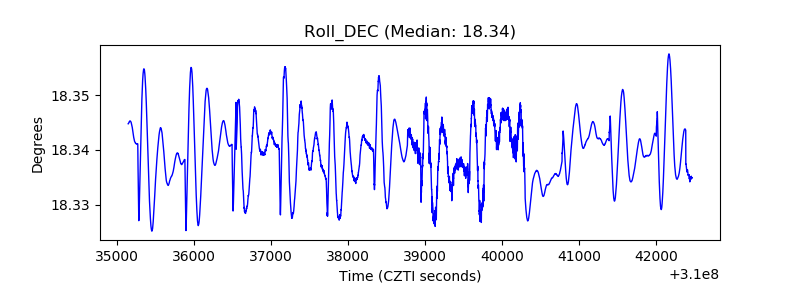

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

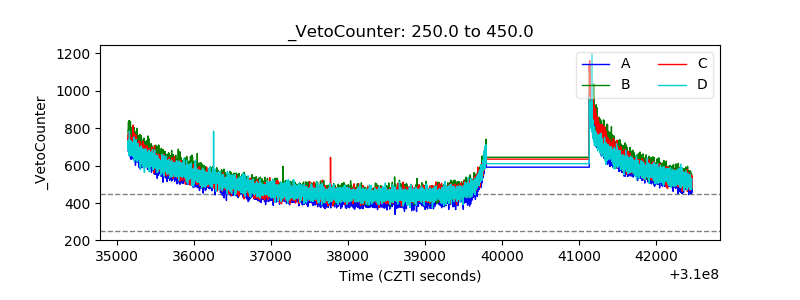

| Veto Counter |  |
