| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003276_22105cztM0_level2.evt | modeM0/AS1A07_007T04_9000003276_22105cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,202,240 | 107,288,640 |
| Size | 488.5 MB | 102.3 MB |
| Events in quadrant A | 3,465,397 | 715,248 |
| Events in quadrant B | 3,484,436 | 720,488 |
| Events in quadrant C | 3,876,875 | 666,966 |
| Events in quadrant D | 4,212,923 | 661,896 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14531 | 2 |
| B | 0 | 14543 | 2 |
| C | 0 | 15720 | 2 |
| D | 0 | 16939 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6953 | 124 | 1.783403% |
| B | 6953 | 132 | 1.898461% |
| C | 6953 | 332 | 4.774917% |
| D | 6953 | 271 | 3.897598% |

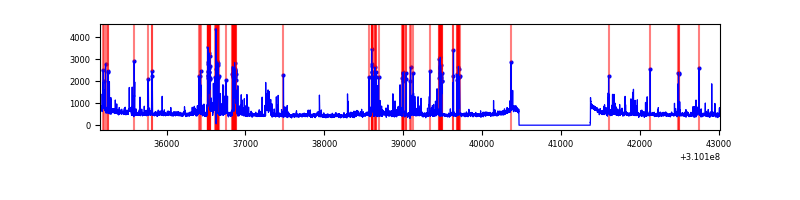

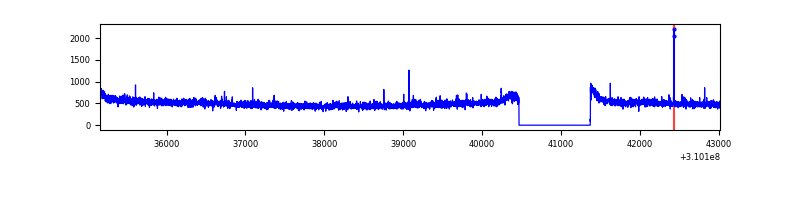

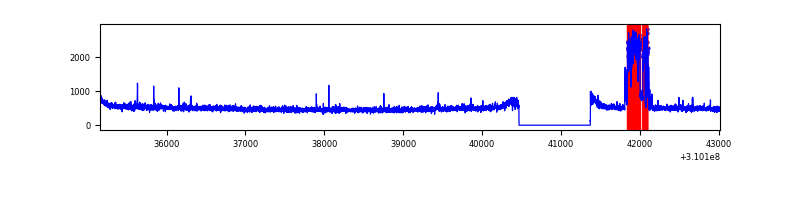

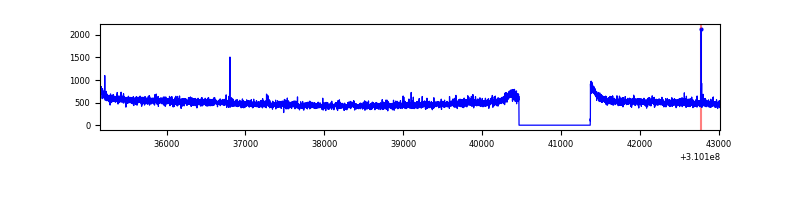

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7858 | 6954 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7858 | 6954 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7858 | 6954 | 156 | 156 | 1.99% | 2.24% |  |
| D | 7858 | 6954 | 132 | 132 | 1.68% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10521 | 53.74 | 896 | 878 | 179.4 |
| A | 0 | 226 | 7768 | 38.4 | 896 | 878 | 179.4 |
| A | 3 | 137 | 7401 | 36.35 | 896 | 878 | 179.4 |
| B | 12 | 111 | 20035 | 113.18 | 883 | 858 | 169.4 |
| B | 11 | 111 | 17839 | 100.22 | 883 | 858 | 169.4 |
| B | 14 | 111 | 15437 | 86.04 | 883 | 858 | 169.4 |
| C | 10 | 22 | 456093 | 2330.19 | 842 | 848 | 195.4 |
| C | 14 | 238 | 134014 | 681.61 | 842 | 848 | 195.4 |
| C | 13 | 61 | 5758 | 25.13 | 842 | 848 | 195.4 |
| D | 11 | 176 | 619337 | 2987.01 | 861 | 835 | 207.1 |
| D | 1 | 52 | 156689 | 752.68 | 861 | 835 | 207.1 |
| D | 2 | 136 | 112008 | 536.9 | 861 | 835 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

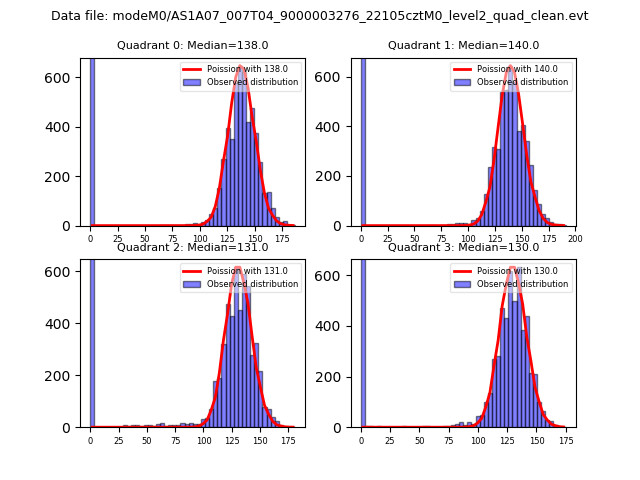

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

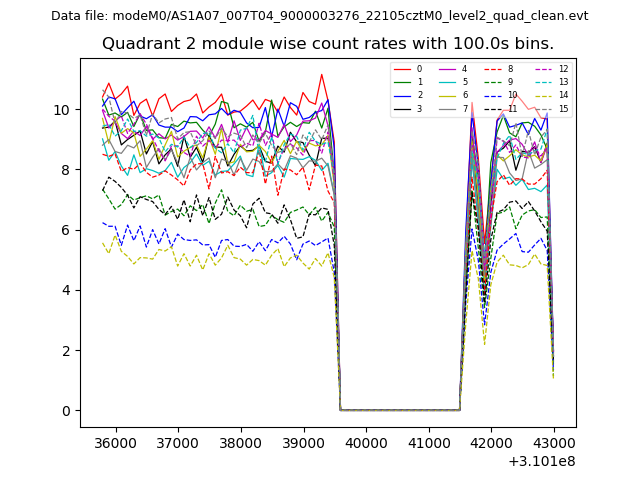

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

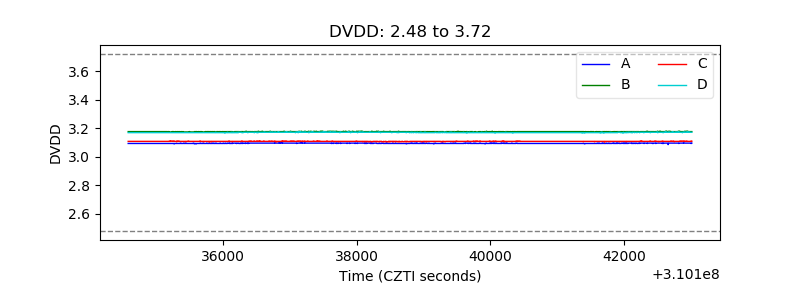

| D_VDD |  |

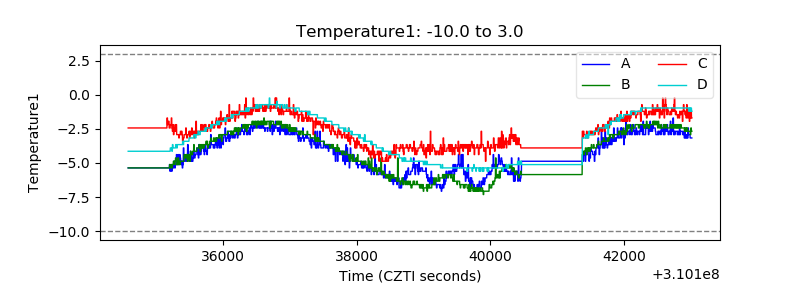

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

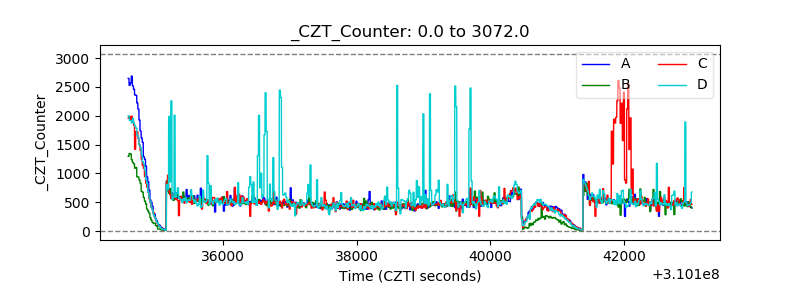

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

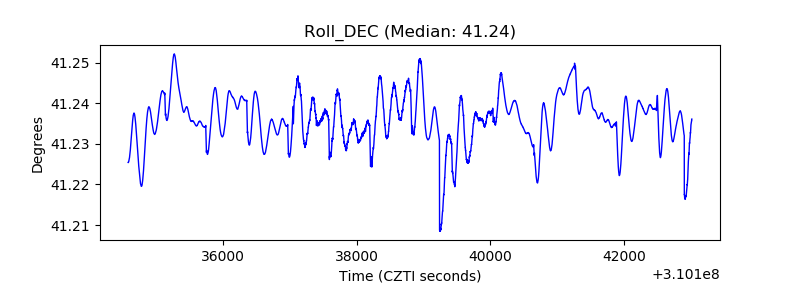

| _Roll_DEC |  |

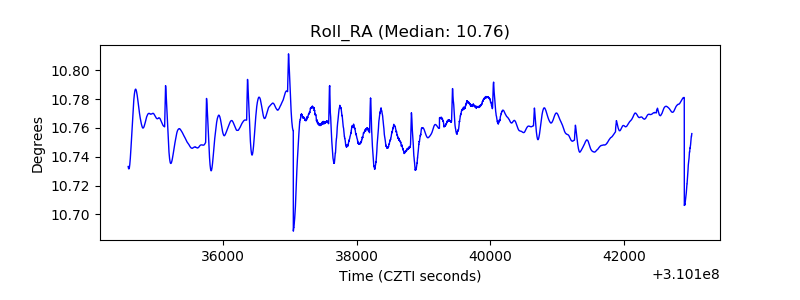

| _Roll_RA |  |
| Veto Counter |  |
