| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_007T04_9000003276_22126cztM0_level2.evt | modeM0/AS1A07_007T04_9000003276_22126cztM0_level2_quad_clean.evt |
| Size (bytes) | 221,207,040 | 36,167,040 |
| Size | 211.0 MB | 34.5 MB |
| Events in quadrant A | 1,401,047 | 218,180 |
| Events in quadrant B | 1,540,618 | 220,163 |
| Events in quadrant C | 1,453,072 | 214,533 |
| Events in quadrant D | 2,078,642 | 207,724 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6617 | 1 |
| B | 0 | 6875 | 1 |
| C | 0 | 6667 | 1 |
| D | 0 | 8452 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66 | 0 |
| B | 0 | 66 | 0 |
| C | 0 | 66 | 0 |
| D | 0 | 66 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3296 | 3 | 0.091019% |
| B | 3296 | 20 | 0.606796% |
| C | 3296 | 16 | 0.485437% |
| D | 3296 | 68 | 2.063107% |

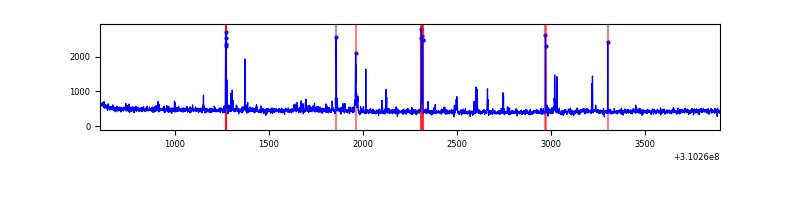

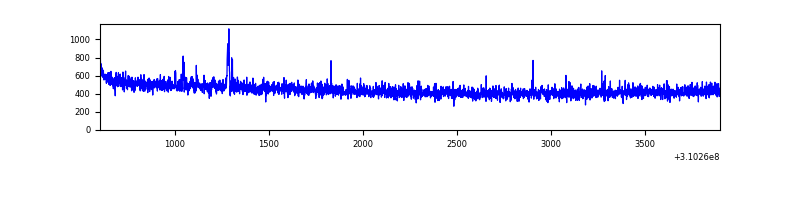

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3296 | 3296 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3296 | 3296 | 14 | 14 | 0.42% | 0.42% |  |
| C | 3296 | 3296 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3296 | 3296 | 74 | 74 | 2.25% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6422 | 81.64 | 362 | 355 | 74.3 |
| A | 3 | 137 | 3093 | 36.84 | 362 | 355 | 74.3 |
| A | 0 | 226 | 3034 | 36.05 | 362 | 355 | 74.3 |
| B | 3 | 64 | 61720 | 860.31 | 365 | 354 | 71.3 |
| B | 10 | 246 | 20248 | 278.9 | 365 | 354 | 71.3 |
| B | 0 | 230 | 11080 | 150.37 | 365 | 354 | 71.3 |
| C | 14 | 238 | 56114 | 663.25 | 354 | 357 | 84.1 |
| C | 10 | 22 | 12620 | 145.87 | 354 | 357 | 84.1 |
| C | 13 | 61 | 2410 | 24.42 | 354 | 357 | 84.1 |
| D | 2 | 133 | 415871 | 4801.9 | 349 | 338 | 86.5 |
| D | 1 | 52 | 173575 | 2001.93 | 349 | 338 | 86.5 |
| D | 11 | 176 | 110185 | 1269.39 | 349 | 338 | 86.5 |

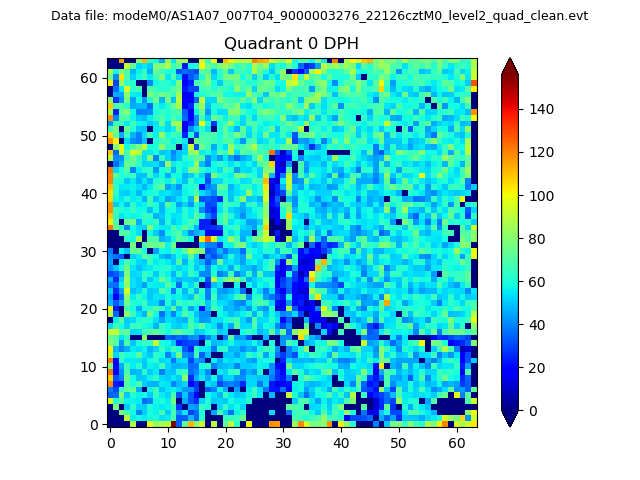

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

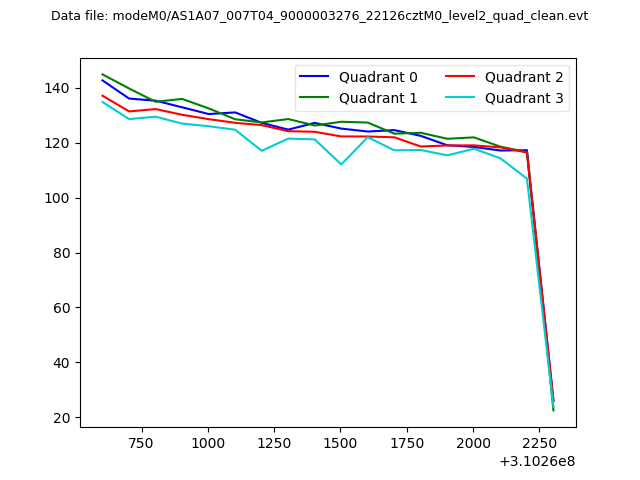

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

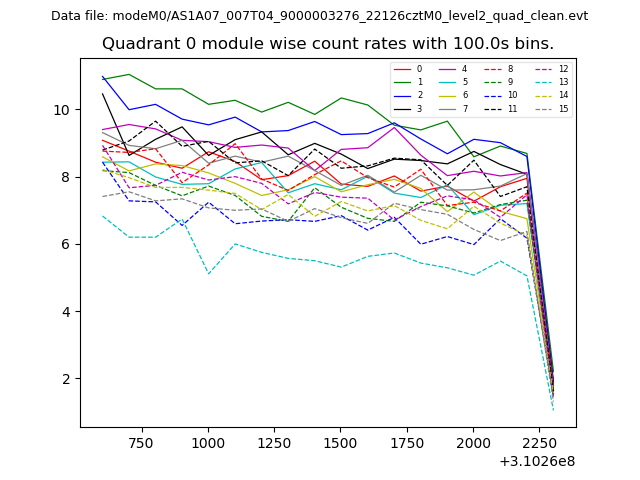

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

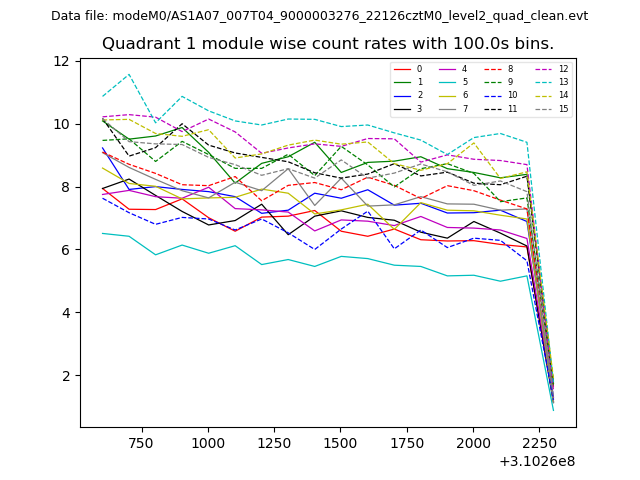

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

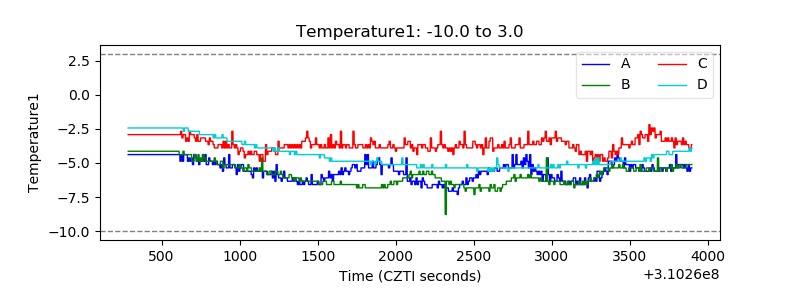

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

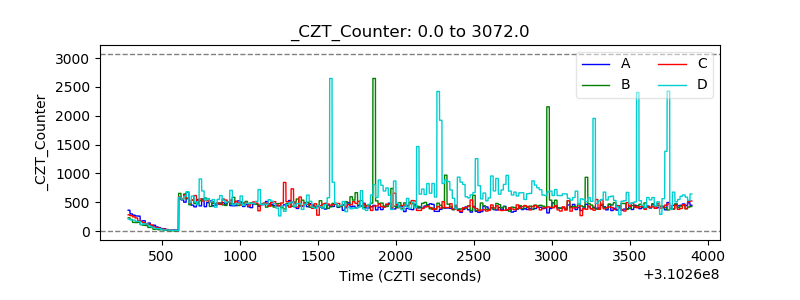

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
